Place of Origin: | Japan |
Brand Name: | Panasonic |
Certification: | CE |
Model Number: | MFDDTB3A2 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiated |
Packaging Details: | New Original |
Delivery Time: | 5-8days |
Payment Terms: | T/T |
Supply Ability: | 1000 |
Brand: | Panasonic | Type: | Industrial Servo Drives |
---|---|---|---|
Part Number: | MFDDTB3A2 | Input Power: | 3-phase 200 (+10% -15%) To 230 V (+10% -15%) 50/60 Hz |
Series: | A4 Series | Voltage - Supply: | 200 ~ 240VAC |
Highlight: | MFDDTB3A2 dc servo motor drive,5Kw dc servo motor drive,3 phase servo motor driver 200V |

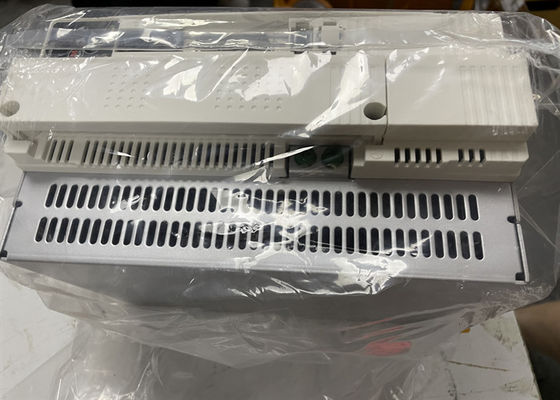

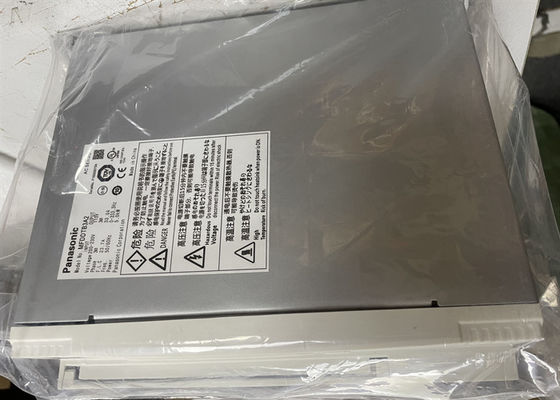

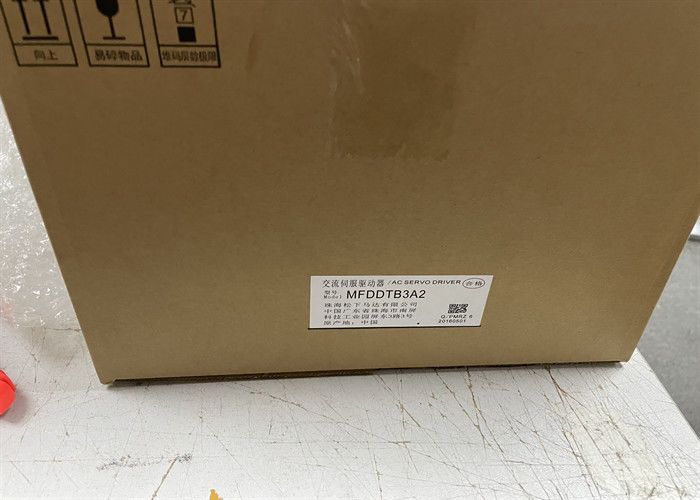

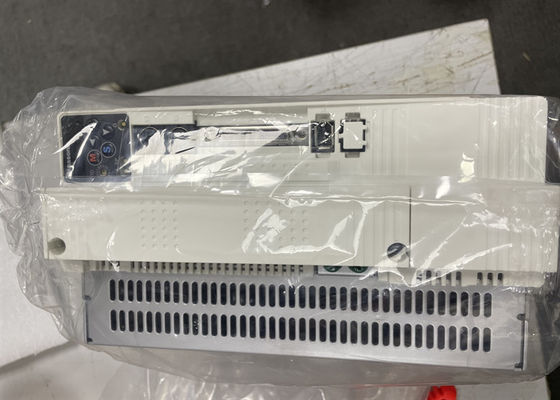

MFDDTB3A2 5Kw Industrial Servo Drives Panasonic 3phase 200 V 50/60 Hz
Description of MFDDTB3A2 ndustrial Servo Drives
Brand:Panasonic
Type:Industrial Servo Drives
Part number:MFDDTB3A2
Input power:3-phase 200 (+10% -15%) to 230 V (+10% -15%) 50/60 Hz
Series:A4 series
Voltage - Supply:200 ~ 240VAC
Spec Detail of Industrial Servo Drives MFDDTB3A2
Item | Specifications |
---|---|
Part Number | MFDDTB3A2 |
Details | A4 Series Standard model Pulse train position command Analog velocity command Analog torque command Full-closed control serial communication |
Family Name | MINAS A4 |
Series | A4 series |
Frame | F-Frame |
Frequency response (kHz) | 1.0 |
Control method | Position, Speed, Totque, Full-closed control, Serial communication |
Safety Function | without the safety function |
I/F Classification of type | Analog / Pulse input |
Dimensions (W) (Unit: mm) | 130 |
Dimensions (H) (Unit: mm) | 220 |
Dimensions (D) (Unit: mm) | 200 |
Mass (kg) | 6.0 |
Environment | For more details, please refer to the instruction manual. |
Basic Specifications of MFDDTB3A2
Item | Specifications |
---|---|
Input power: Main circuit | 3-phase 200 V (+10% -15%) to 230 V (+10% -15%) 50/60 Hz |
Input power: Control circuit | Single phase 200 V (+10% -15%) to 230 V (+10% -15%) 50/60 Hz |
Encoder feedback | 17 bit (131072 resolution) absolute/incremental encoder 2500 P/r (10000 resolution) incremental encoder |
About Encoder feedback | * When using it as an incremental system (not using multiturn data), do not connect the battery for absolute encoder. Parameter Pr. 0B must be set to "1" (factory settings). |
External scale feedback | Serial communication |
Parallel I/O connector: Control signal Input |
10 inputs (1) Servo-ON, (2) Control mode switching, (3) Gain switching/Torque limit switching, (4) Alarm clear, (5)CW over-travel inhibit, (6)CCW over-travel inhibit. Other inputs vary depending on the control mode. |
Parallel I/O connector: Control signal Output |
6 outputs (1) Servo alarm, (2) Servo ready, (3) Release signal of external brake (4) Zero speed detection, (5) Torque in-limit. Other outputs vary depending on the control mode. |
Parallel I/O connector: Analog signal Input |
3 inputs (16 bit A/D : 1 inputs,10 bit A/D : 2 inputs) |
Parallel I/O connector: Analog signal Output |
2 outputs (for monitoring) (1) Speed monitor (Monitoring of actual motor speed or command speed is enabled. Select the content and scale with parameter.), (2) Torque monitor (Monitoring of torque command, [approx. 3V/rated torque]), deviation counter or full-closed deviation is enabled. Select the content or scale with parameter.) |
Parallel I/O connector: Pulse signal Input |
2 inputs Select the exclusive input for line driver or photo-coupler input with parameter. |
Parallel I/O connector: Pulse signal Output |
4 outputs Feed out the encoder pulse (A, B and Z-phase) or feedback scale pulse (EXA, EXB and EXZ-phase) in line driver. Z-phase and EXZ-phase pulse is also feed out in open collector. |
Communication function | RS232, RS485 |
Communication function: RS232 | 1 : 1 communication to a host with RS232 interface is enabled. |
Communication function: RS485 | 1 : n communication up to 15 axes to a host with RS485 interface is enabled. |
Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
Control mode | Switching among the following 7 mode is enabled, (1) Position control, (2) Speed control, (3) Toque control, (4) Position/Speed control, (5) Position/Torque control, (6) Velocity/Torque control and (7) Full-closed control. |
