TU833 3BSE038726R1 Extended MTU Ethernet Analog Output Module 50V S800 2x16 Signal Terminals

TU833 3BSE038726R1 Extended MTU 50V S800 I O Modules 2x16 signal terminals

Product Information Of : TU833 3BSE038726R1

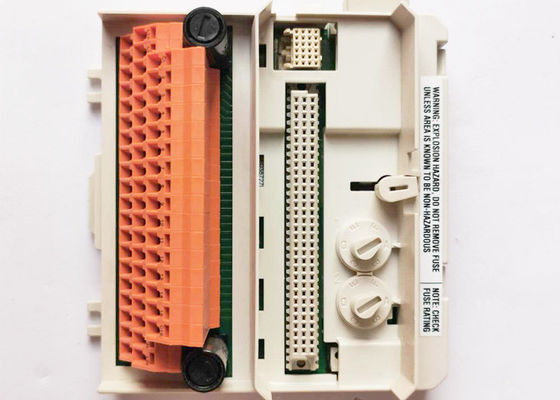

   The TU833 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. It is recommended that the fuse rating be chosen to meet the applications needs, see S800 I/O Getting Started chapter Power and Cooling.

   The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

   The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.

Features and benefits :

1) Complete installation of I/O modules using 3-wire connections, fuses and field power distribution.

2) Up to 16 channels of field signals and process power connections.

3) Connections to ModuleBus and I/O modules.

4) Mechanical keying prevents insertion of the wrong I/O module.

5) Latching device to DIN rail for grounding.

6) DIN rail mounting.

7) Spring-case terminal.
