Brand Name: | GE |
Model Number: | IC660EBA024 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negitiation |
Packaging Details: | New in original boxRockwell Automation |
Delivery Time: | 5-8 work daysRockwell Automation |
Payment Terms: | T/T |
Supply Ability: | 1 |
Condition: | New | Output Type: | 2 Analog Outputs |
---|---|---|---|
Group To Group Isolation: | 300V Rms | Warranty: | 1 Year |
Storage Temperature Of: | -40 Degree Celsius To 100 Degree Celsius | 5-95% Non-condensing: | Operating Vibration |
Series: | Genius I-O | Part Number: | IC660EBA024 |
Highlight: | 48VDC Digital I O Module,Digital I O Module 56Volts,IC660EBA024 |

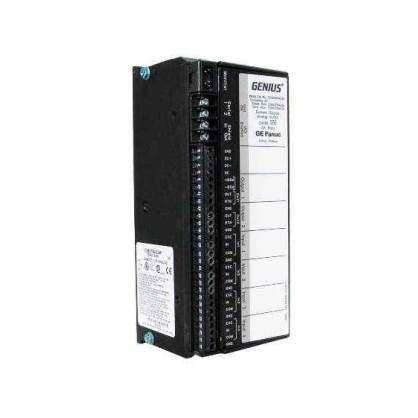

GE IC660EBA024 24 / 48 VDC 18 to 56 Volts DC 12.0 Watts 4 to 24 Milliamps
Product information GE IC660EBA024:
The GE Fanuc IC660EBA024 electronic assembly is made for the Genius I/O block system.
This electronic assembly with its corresponding terminal assembly (the IC660TAB024) makes up the whole functioning Genius I/O current source analog block.
While the terminal assembly houses the block’s configuration settings that are stored in EEPROM and provides a base for all the field wiring, the electronic assembly contains the block’s microprocessor and provides an interface between field devices and the Genius bus. The IC660EBA024 electronic assembly also sends or accepts 4 milliamps to 20 milliamps rated analog signals.
The IC660EBA024 electronic assembly comes with a 24/48 Volts DC rated block with 6 individually-isolated circuit channels (4 inputs and 2 outputs).
Each circuit channel can accept 4 to 20 milliamps rated analog signals that are transmitted to the controller as discrete signals, and each input on its own provides 24 Volt DC loop power.
More information of IC660EBA024 :
The IC660EBA024 Electronics Assembly has an input resolution of 1microamp and an accuracy of 0.1% of the full-scale reading at 25 degrees Celsius.
Each input channel has a signal range of 4 to 24 milliamps and an over-range value of 0 to 25 milliamps. It has a user-selectable input conversion time (16.6 to 400 milliseconds) and an input impedance of 100 Ohms.
The IC660EBA024 Electronics Assembly has 2 output channels with 6.0 microamps of resolution and 0.15% of the full-scale reading output accuracy at 25 degrees Celsius. Each output channel has a signal range of 4 to 24 milliamps and an adjustable update time of 6 to 8 milliseconds.
The IC660EBA024 Electronics Assembly is software configurable and it offers advanced diagnostics features including open wire detection, low and high input alarm detection, under range/over-range detection, feedback error detection, and internal fault reporting diagnostics.
