AB/Rockwell Automation 1794-IRT8 Flex I/O combination module

AB/Rockwell Automation 1794-IRT8 Flex I/O combination module

  • AB/Rockwell Automation 1794-IRT8 Flex I/O combination module
  • AB/Rockwell Automation 1794-IRT8 Flex I/O combination module
AB/Rockwell Automation 1794-IRT8 Flex I/O combination module
Product Details:
Place of Origin: USA
Brand Name: AB
Model Number: 1785-BCM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negitiation
Packaging Details: in box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 100
Contact Now
Detailed Product Description
Product Name: PLC Programmable Logic Controller 1794-IRT8 Product: PLC Programmable Logic Controller
Model: 1794-IRT8 Brand: AB
Series: A And B,C,D I/O Chassis: CONTROLLOGIX
Country Of Origin: USA

AB/Rockwell Automation 1794-IRT8 Flex I/O combination module




Description for 1794-IRT8 Flex I/O combination module:

The AB 1794-IRT8 is a Flex I/O combination module. This module supports both RTD and Thermocouple sensors. It has Eight (8) channels in Two (2) groups of Four (4) with nominal input ranges of -40…100 mV dc for thermocouples for Thermocouple and 0…325 mV for RTDs for RTD. This module has a resolution of 14 bits.







Technical Specifications for 1794-IRT8 Flex I/O combination module
TD Sensors supported: 100 ? Pt ? = 0.00385 Euro (-200…+870 °C) 100 ? Pt ? = 0.003916 U.S. (-200…+630 °C) 200 ? Pt ? = 0.00385 Euro (- 200…+630 °C) 500 ? Pt ? = 0.00385 U.S. (-200…+630 °C) 100 ? Nickel ? = 0.00618 (-60…+250 °C) 120 ? Nickel ? = 0.00672 (-60…+250 °C) 200 ? Nickel ? = 0.00618 (-60…+250 °C) 500 ? Nickel ? = 0.00618 (-60…+250 °C) 10 ? Copper ? = 0.00427 (- 200…+260 °C).
Operating Shock: 30 g
Vibration: 5g @ 10 to 500 Hz
Storage Temperature: –40…85 °C (–40…185 °F)
Operating Temperature: 0 to 55 C (32 to 131 F)
Wire Size: Determined by installed terminal base
Indicators: 1 green power status indicator 8 red open input indicators
Mounting: DIN Rail
ystem Throughput: 7.4 ms - mV 8.0 ms - ? - 2-wire 10.0 ms - ? - 3-wire 10.4 ms - ? - 4-wire 8.0 ms - 2-wire RTD ( °F) 10.4 ms - 4-wire RTD ( °F) 8.8 ms - 2-wire RTD ( °C), ( °K) 10.8 ms - 4- wire RTD ( °C), ( °K) 9.8 ms - 3-wire RTD ( °F) 10.0 ms - 3-wire RTD ( °C), ( °K) 8.0 ms - Thermocouples ( °F) 8.8 ms - Thermocouples ( °C), ( °K)?
Data Format: °C (implied decimal point XXX.X) °F (implied decimal point XXX.X) °K (implied decimal point XXX.X) - 32767…+32767 0…65535 0…5000 (? mode) (implied decimal point XXX.X) -4000…+10000 (mV mode) (implied decimal point XXX.XX)
Accuracy: 0.05% of full range in mV mode with filtering selected Hardware only = 0.10% of full range in mV mode
Resolution: 14 bits
Nominal input voltage ranges: -40…100 mV DC for thermocouples 0…325 mV for RTDs mV default
Thermocouple Sensors supported: Type B: 300…1800 °C (572…3272 °F) Type E: - 270…1000 °C (-454…1832 °F) Type J: -210…1200 °C (- 346…2192 °F) Type K: -270…1372 °C (-454…2502 °F) Type TXK/XK (L):-200…800 °C (-328…1472 °F) Type N: -270…1300 °C (-454…2372 °F) Type R: -50…1768 °C (-58…3214 °F) Type S: -50…1768 °C (-58…3214 °F) Type T: -270…400 °C (-454…752 °F)
Brand AB
Terminal base: 1794-TB3G, 1794-TB3GS, 1794-TB3GK
Product Description: Flex IO 8-Channel RTD / Thermocouple Input Module
Manufacturer: Rockwell Automation
Part Number 1794-IRT8
Series Flex I/O 1794
Series variations A and B
Nominal voltage 24 Volts DC
Indicator Power indicator
Inputs 8
Accessories 2 cold junction compensators
Host system FLEX I/O system
UPC 10612598180223



OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
ABB Module AB Module 1756-,1759- Tourch Screen 2711-
Mitsubishi Drive MR- , Motor HA -,HC Emerson MoudlesVE- ,KJ -
Fanuc motor A0-, Drive Yokogawa transmitter EJA-
Rosemount Transmitter 3051- Schneider Module 140-
Panasonic Motor , Drive MH- Siemens Module 6ES-, Touch Screen 6AV-

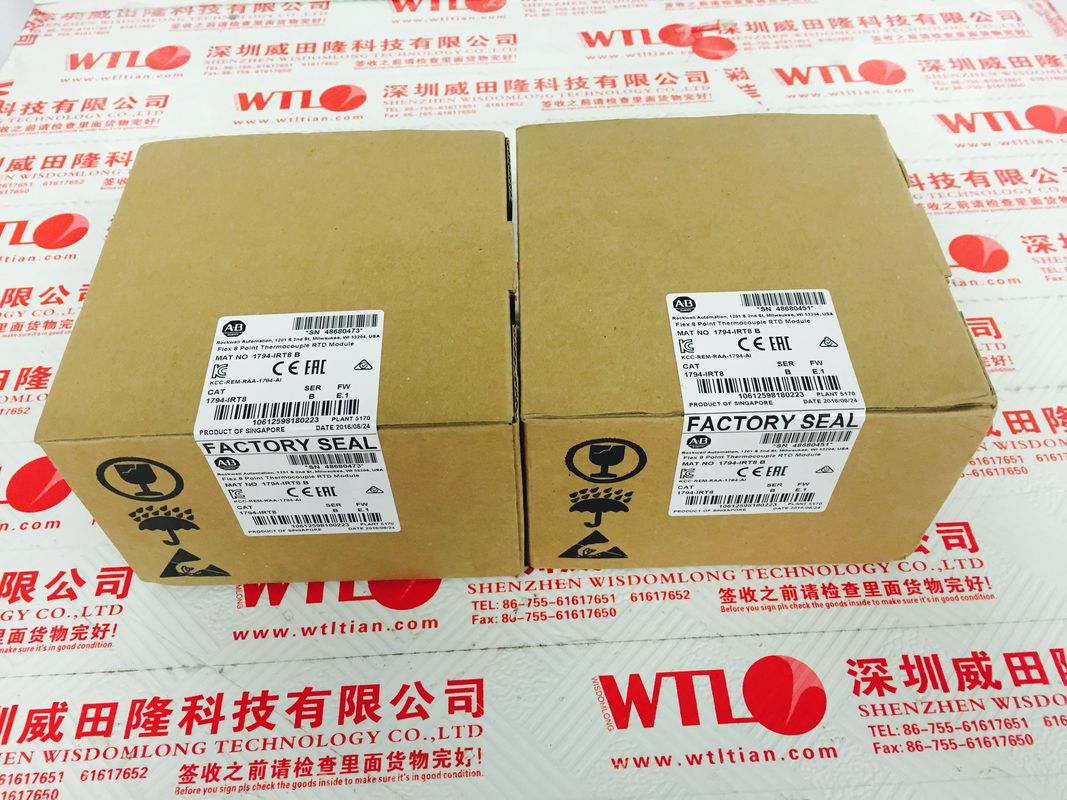

AB/Rockwell Automation 1794-IRT8 Flex I/O combination module 0





About 1794-IRT8 Flex I/O combination module

The 1794-IRT8 module is an AB FLEX I/O millivolt, thermocouple, and RTD module. In a FLEX I/O system, the 1794-IRT8 module is connected to a terminal base and a power adapter.



The AB 1794-IRT8 is shipped with 2 cold junction compensators. This cold junction compensator increases the accuracy of the module for Thermocouple mode. 1794-IRT8 module has a nominal voltage rating of 24 Volts DC and 8 analog inputs. It can connect to up to 8 RTD or thermocouple inputs. The front panel of the 1794-IRT8 module has a nameplate that identifies the module, a removable label that the users can customize, a keyswitch position indicator, and LED status indicators.Compatible RTD sensors for this module are 2-wire, 3-wire and 4-wire RTDs such as 100 ? Pt ? = 0.00385 Euro -200…870 °C (-328…1598 °F) 200 ? Pt ? = 0.00385 Euro -200…400 °C (-328…752 °F) 100 ? Pt ? = 0.003916 U.S. -200…630 °C (-328…1166 °F) 100 ? Pt ? = 0.003916 U.S. -200…400 °C (-328…752 °F) 100 ? Nickel -60…250 °C (-76…482 °F) 200 ? Nickel -60…200 °C (-76…362) °F) 120 ? Nickel -80…320 °C (-112…608 °F) 10 ? Copper -200…260 °C (-328…470 °F). While supported Thermocouple sensors by this module are Thermocouple Type B, E, J, K, TXK/XK(L), N, R, S, and T.



This module has a resolution of 14 bits with selectable data formats such as °C (implied decimal point XXX.X) °F (implied decimal point XXX.X) °K (implied decimal point XXX.X) -32767…32767 0…65535 0…5000 ohms mode (implied decimal point XXX.X) -4000…+10000 millivolt mode (implied decimal point XXX.XX).



The 1794-IRT8 has diagnostic functions embedded including an open circuit detection wherein module reading upscales or defaults to max value when in RTD and Thermocouple mode. It also has an open input detection time of 2 scans, overvoltage capability of 15V DC continuous at 25 °C.When wiring signal wirings, recommended wires are Thermocouple wires as specified by the TC manufacturer and Belden 8761 for millivolt signal.

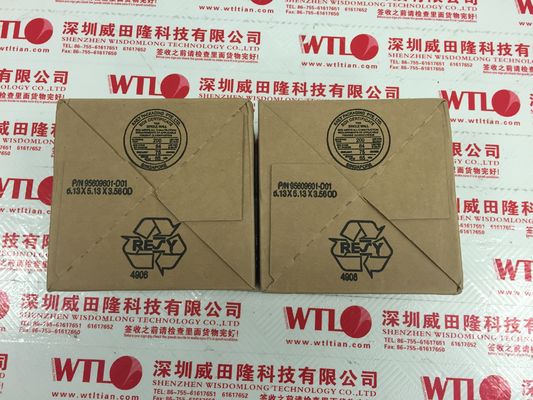

AB/Rockwell Automation 1794-IRT8 Flex I/O combination module 1
