Product information GE IC697BEM713:

• IC697BEM713
• DISCONTINUED BY MANUFACTURER
• BUS TRANSMITTER MODULE (BTM)
• SERIES 90-70
• 500 KBYTES/SEC EFFECTIVE DATA RATE
• 20-30 SECOND TIME TO STORE 16 KBYTE PROGRAM
• CURRENT REQUIED 1.4 AMPS
• WITH A 50 FOOT MAX CABLE LENGTH
• SUPPORTS UP TO SEVEN EXPANSION RACKS

More information:
The IC697BEM713 module resides in a single slot and has two connectors, a top connector for attaching to the programming device and a bottom connector, which is for a daisy-chained arrangement via BRMs to expansion racks. The bus transmitter module should be configured using the MS-DOS or Windows programming software configuration function.

Status LEDs (3) alert the user to issues with the port and/or module. The top MODULE OK LED will show ON when CPU software completes BTM configuration and has polled each system expansion rack. It will emit OFF when or if these conditions are not met. The middle Programmer Port Enabled LED may blink or show ON to indicate the programmer and the PLC are communicating. It will emit OFF when they are not communicating. The bottom Expansion Port Enabled LED indicates the status of the expansion bus. This LED may blink ON when the BTM is communicating with the Bus Receiver Modules or OFF if they are not.

When installing the IC697BEM713, the user should have the appropriate programmer controller manual for reference. The power must be OFF before beginning. Once the module is installed in the main CPU rack, power can be turned out. It is important to note, however, that the module cannot be installed in slot 1. It must be installed to the right of any IC697 interrupt source modules.

IC697CPU781's Features:
High Performance Parallel Programmer Interface                            Bus Expansion Interface

Supports up to 7 Expansion racks                                                    Three LED indicators provide module, programmer port, and expansion port                                                                                                                 status

No DIP switches to set, easy software configuration into PLC system

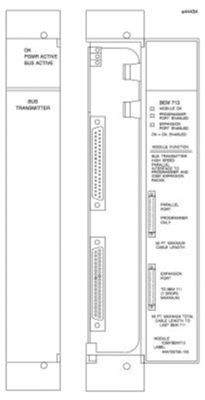

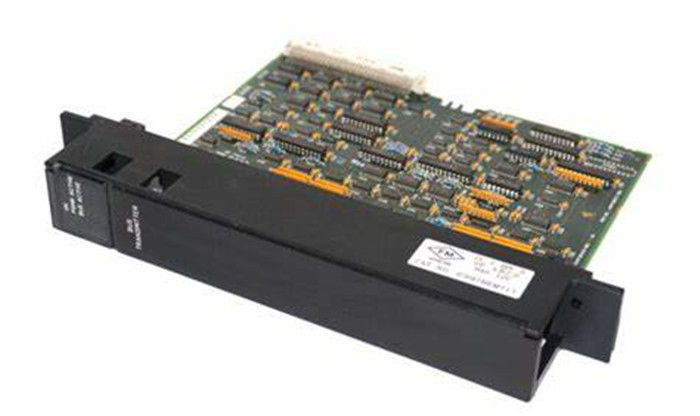

IC697CPU781's Photo details:

About  series of  GE 90-70's advantage  :

With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.
