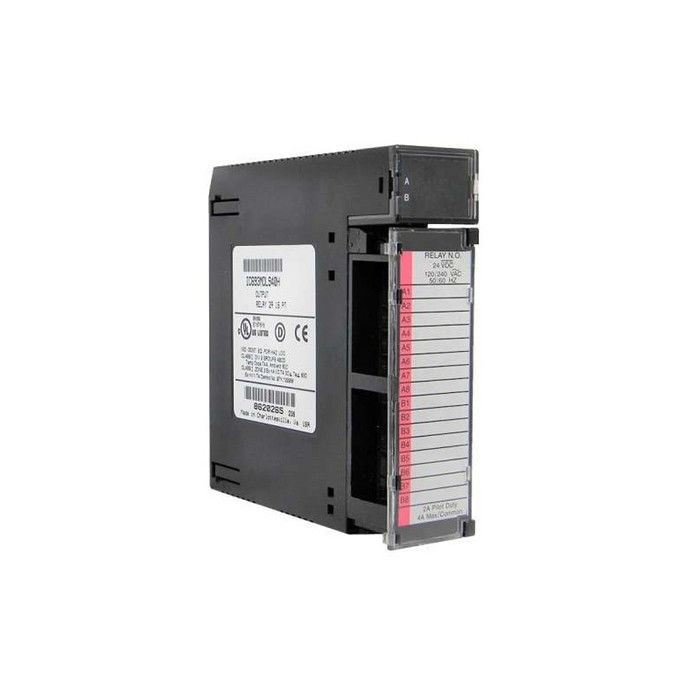

Product information GE IC693MDL733 :

The GE Fanuc IC693MDL733 is a 12/24 volt DC Negative Logic 0.5 Amp Output module.

Specifically engineered to work with the Series 90-30 Programmable Logic Controller, this module has 8 output points. These points are in a single group that share a common power output terminal. By design, this output module has negative logic characteristics. This means that the module sinks current from the loads to either the user common or else the negative power bus.

As for output characteristics, this module can be used with an array of load devices, as supplied by the user. For example, the output module is compatible with indicators, motor starters and solenoids. The user must supply power in order to operate such field devices.


On the top of the module there is an LED block, which consists of two horizontal rows. Each row has eight green LEDs. One row is labelled A1 and the other B1. As this module only has eight output points, only A1 is used, with LED points 1 through 8 representing the ON/OFF status of output points 1 through 8 respectively. This module does not have any fuses. This is a low-voltage module, as indicated by the blue color coding on the edge of the insert between the inner and outer surface of the hinged door.

When this door is closed, the surface on the inside (facing the inside of the module) has information on circuit wiring. On the outer surface, circuit identification information can be recorded. During applications with a Series 90-30 PLC system, users can install this output module in any I/O slot of a 5-slot or 10-slot baseplate.


More information:
Configuration The IC697 CPU and I/O system is configured with IC641 programming software. There are no DIP switches or jumpers used to configure the system.

The CPU verifies the actual module and rack configuration at power-up and periodically during operation. The actual configuration must be the same as the programmed configuration. Deviations are reported to the CPU alarm processor function for configured fault response
