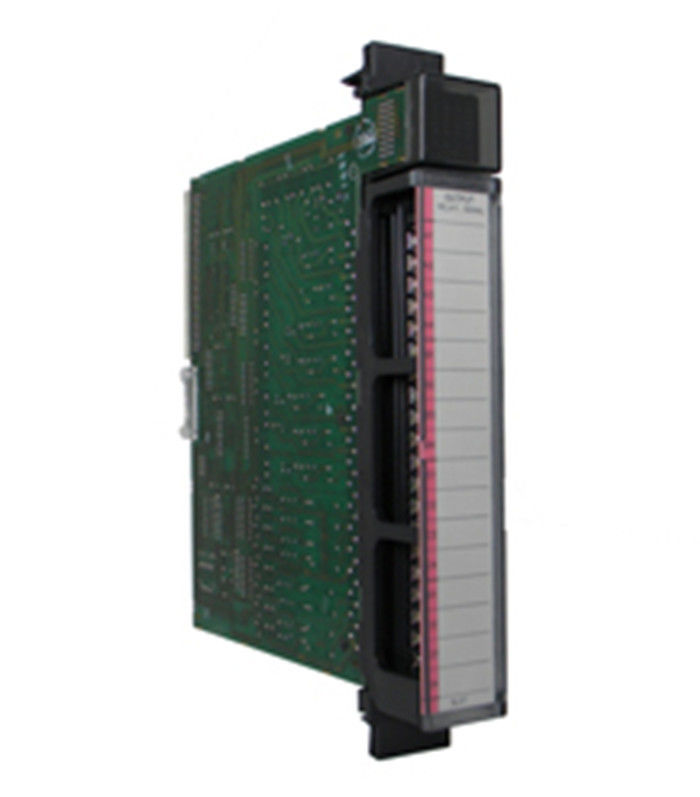

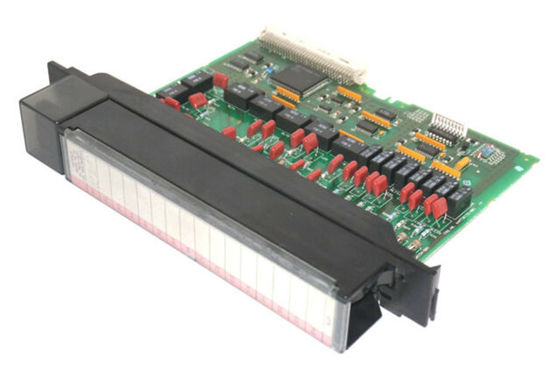

GE IC697MDL940 OUTPUT MODULE 16 POINT RELAY OUTPUT 16 AMPS 120/240 VAC OR 5/24/125 VDC 480 VA OR 60 WATTS

GE IC697MDL940 OUTPUT MODULE 16 POINT RELAY OUTPUT 16 AMPS 120/240 VAC OR 5/24/125 VDC 480 VA OR 60 WATTS

  • GE  IC697MDL940 OUTPUT MODULE 16 POINT RELAY OUTPUT 16 AMPS 120/240 VAC OR 5/24/125 VDC 480 VA OR 60 WATTS
  • GE  IC697MDL940 OUTPUT MODULE 16 POINT RELAY OUTPUT 16 AMPS 120/240 VAC OR 5/24/125 VDC 480 VA OR 60 WATTS
GE  IC697MDL940 OUTPUT MODULE 16 POINT RELAY OUTPUT 16 AMPS 120/240 VAC OR 5/24/125 VDC 480 VA OR 60 WATTS
Product Details:
Place of Origin: USA
Brand Name: GE
Model Number: IC697MDL940
Payment & Shipping Terms:
Price: negotiation
Packaging Details: New in original boxRockwell Automation
Delivery Time: 5-8 work daysRockwell Automation
Payment Terms: T/T
Supply Ability: 1
Contact Now
Detailed Product Description
Condition: New Load Current: 16 Amps Per Module, 4 Amps Per Group
Minimum Load: 10 MA Warranty: 1 Year
Rated Voltage: 120/240 Volts AC Or 5/24/125 Volts DC Maximum Power: 480 VA (AC Loads) Or 60 Watts (DC Loads)
Current Draw: 750 MA Switching Frequency: 20 Cycles Per Minute

GE IC697MDL940 OUTPUT MODULE 16 POINT RELAY OUTPUT 16 AMPS 120/240 VAC OR 5/24/125 VDC 480 VA OR 60 WATTS

Product information GE IC697MDL940 :

The IC697MDL940 is a Series 90-70 Programmable Logic Controller (PLC) module, specifically a Relay output module with a total of Sixteen (16) relay output channels. Specifically, it has Eight (8) Form C Contact outputs and Eight (8) Form A or Normally Open (N.O.) in Two (2) groups of Four (4) Form A contacts each channel. This module has a nominal voltage rating of 120/240 VAC or 5/24/125 VDC with a maximum power consumption of 480 VA for AC loads or 60 watts for DC loads.

It has maximum load current ratings of 2.0 amps from 5 to 265 VAC at 47-63 Hz; 2.0 amps from 5 to 30 VDC; 0.2 amps from 31 to 125 VDC and 0.2 amps from 31 to 150 VDC applicable for Form A contact outputs only while the module’s minimum load current is 10 mA. Each output channel has a maximum response time of 10 ms for both On and Off signal transition and switching frequency of 20 Cycles per minute when used with an inductive load. The output relays of this module are fixed coil, moving armature type while the output contacts are made of silver alloy with a maximum contact resistance of 0.2 Ohm and expected contact life of 20,000,000 operations for mechanical operations and 1,000,000 electrical operations at resistive inductive load. Each output of the IC697MDL940 is installed with a 3 Ampere fuse used as built-in channel protection along a snubber circuit which consists of a 47 Ohm resistor and capacitor with 0.015 µfd capacitance value.


The IC697MDL940 output relay module is an output relay module designed and manufactured by GE Fanuc. The module is typically used with GE PLC devices from Series 90-70 and it is equipped with 3-Amp rated fuses for protection. The module has a typical contact life of 300,000 to 1,000,000 operations and it has a maximum load current of 0.1 to 2 Amps for a resistive load and 0.05 to 1 Amp for a inductive load. This particular GE Fanuc module is designed for both AC and DC operation and it includes operating voltage ratings of 120 to 240 Volts AC or 5, 24, or 125 Volts DC.

The module has 16 outputs and it features an operating frequency of 47 to 63 Hertz (for AC voltage only). The configuration of the output points includes 8 points configured in Form C and same number of points configured in Form A. The output points in Form C are isolated and other points are placed in 2 groups.


The isolation voltage rating of the GE Fanuc IC697MDL940 output relay module is 1500 Volts and its switching frequency is 20 cycles per minute for an inductive load. The module has a maximum output current leakage of 1 milliAmp at 120 Volts AC and a maximum load current of 16 Amps per module or 4 Amps per group. The rated current of the IC697MDL940 module is 750 milliAmps. The module’s response time is 10 milliseconds and it features a maximum power rating of 480 Volt-Amps for AC loads and 60 Watts for DC loads. The IC697MDL940 module has silver alloy contacts with a 0.2-Ohm maximum resistance rating. The module has a fixed coil relay with a moving armature.

Technical Information :



Relay Type: Fixed coil, moving armature
Outputs per Module: 16
Configuration

8 points - Form C (each point isolated)

8 points - Form A (2 groups with 4 points per group)

Isolation:

1500 volts - any output to backplane

500 volts between Form C circuits or Form A groups

Maximum Load Current(Resistive) Per Module

Per Group (Form A)



16 amps

4 amps

Output Switching Characteristics
Nominal Voltage Rating 120/240 VAC or 5/24/125 VDC
Maximum Power 480 VA (AC loads) or 60 watts (DC loads)
Maximum Load Current (resistive) 2.0 amps from 5 to 265 VAC (maximum), 47-63 Hz
  2.0 amps from 5 to 30 VDC (maximum)
  0.2 amps from 31 to 125 VDC (maximum)
  0.2 amps from 31 to 150 VDC (maximum, Form A only)
Minimum Load Current 10 mA
Maximum Output leakage 1 mA at 120 VAC
Response Time-On: 10 msec (maximum)
Response Time-Off: 10 msec (maximum)
Switching Frequency 20 cycles/minute (inductive load)
Contact Type Silver alloy
Contact Resistance 0.2 ohm (maximum)
Contact Life Mechanical: 20 x 106 operations
  Electrical: 105 operations at rated resistive load
Protection (each output) 3 amp fuse
  Snubber (R = 47 ohms, C = 0.015 fd)
Current Required from 5 V Bus: 750 mA
VME System designed to support the VME standard C.1




IC697MDL940 's details:

GE  IC697MDL940 OUTPUT MODULE 16 POINT RELAY OUTPUT 16 AMPS 120/240 VAC OR 5/24/125 VDC 480 VA OR 60 WATTS 0

Note:



GE  IC697MDL940 OUTPUT MODULE 16 POINT RELAY OUTPUT 16 AMPS 120/240 VAC OR 5/24/125 VDC 480 VA OR 60 WATTS 1


Features:
 16 points - 8 isolated Form C - 2 groups of 4 Form A
 2 amp per point switching capacity
 RC snubber and fuse protection per point
 No user power required
 Removable field wiring terminal


GE  IC697MDL940 OUTPUT MODULE 16 POINT RELAY OUTPUT 16 AMPS 120/240 VAC OR 5/24/125 VDC 480 VA OR 60 WATTS 2
