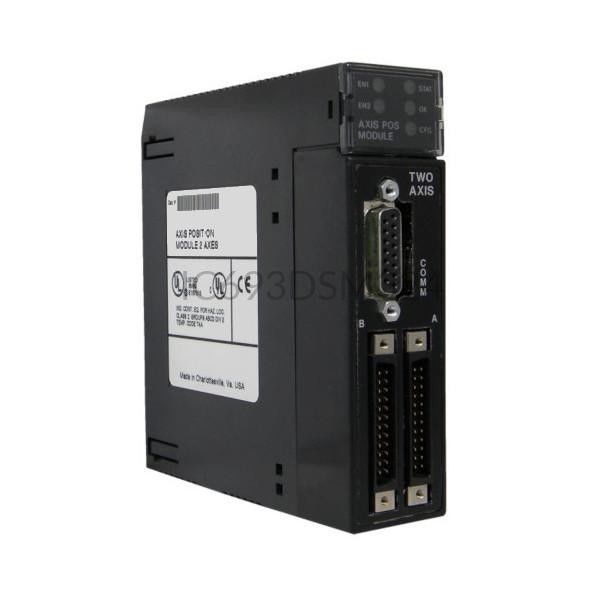

GE IC693DSM324 MOTION CONTROLLER MODULE 5 VDC FROM HOST CONTROLLER BACKPLANE

GE IC693DSM324 MOTION CONTROLLER MODULE 5 VDC FROM HOST CONTROLLER BACKPLANE

  • GE IC693DSM324 MOTION CONTROLLER MODULE 5 VDC FROM HOST CONTROLLER BACKPLANE
  • GE IC693DSM324 MOTION CONTROLLER MODULE 5 VDC FROM HOST CONTROLLER BACKPLANE
GE IC693DSM324 MOTION CONTROLLER MODULE 5 VDC FROM HOST CONTROLLER BACKPLANE
Product Details:
Place of Origin: USA
Brand Name: GE
Model Number: IC693DSM324
Payment & Shipping Terms:
Price: negotiation
Packaging Details: New in original boxRockwell Automation
Delivery Time: 5-8 work daysRockwell Automation
Payment Terms: T/T
Supply Ability: 1
Contact Now
Detailed Product Description
Condition: New LED Indicators: STATUS; OK; CONFIG; FSSB; 1, 2,3 And 4 Axis Indicators
Backplane Current Draw: 860 MA At 5VDC Warranty: 1 Year
Total DSM324i Modules Per PACSystems RX3i System: Output Module Output Voltage Range: 32
Operating Temperature: 0 To 60 Degrees Celsius (32 To 140 Degrees Fahrenheit) Communication Ports: 24 VDC I/O: 36 Pin D-shell Port 5VDC I/O: 36 Pin D-shell Port COM Port: RJ45 FSSB Port

GE IC693DSM324 MOTION CONTROLLER MODULE 5 VDC FROM HOST CONTROLLER BACKPLANE

Product information GE IC693DSM324  :

The IC693DSM324 is a Motion controller module from the Series 90-30 programmable Logic Controller Series. This module is capable of controlling up to Four (4) motion control axes, ideally used for more complex motion control systems. The IC693DSM324 is configurable to operate in standard mode and follower mode and compatible for use with ?i, ?HVi, ?i, and ?HVi Series digital servo amplifiers and motors. The IC693DSM324 is mounted to a Series 90-30 Baseplate. It can be installed to the main rack with CPU 364 and 374 wherein One (1)

IC693DSM324 can be installed when used with PWR 321 / PWR 322 / PWR 328 power supply modules; Up to Four (4) instances when installed with PWR 330 / PWR 331; with CPU 350, 352, 360 and 363 Two (2) IC693DSM324 can be installed when used with PWR 321 / PWR 322 / PWR 328 and up to Five (5) IC693DSM324 instances with PWR 330 / PWR 331. It can be also installed to expansion or remote baseplates wherein Two (2) IC693DSM324 can be installed to a remote baseplate when used with PWR 321 / PWR 322 / PWR 328; Three (3) with an expansion baseplate PWR 330 / PWR 331 and up to Six (6) instances to an expansion or remote baseplate with Power supply modules PWR330 / PWR 331. The maximum allowable instance per Series 90-30 system is 20 instances of the IC693DSM324 motion controller module. The IC693DSM324 has a backplane current draw of 860 mA plus the encoder supply current at 5VDC.


The GE Fanuc motion controller that is known as the IC693DSM324 module is used for complex industrial systems constructed to operate as one cohesive controller unit. The IC693DSM324 controller is intended for use with components from GE Series 90-30 and components which are part of the PACSystems RX3i series. The unit has a CPU firmware version 10 or later and it allows up to 32 DSM324i modules to be connected in a PACSystems RX3i system. The main rack of the PACSystems RX3i system can allow for up to 5 DSM324i modules in a designated CPU baseplate and it also supports multiple modules in the expansion/remote racks. Similar support is provided for the Series 90-30 systems, even though it allows for less modules to be installed with a total of only 20 modules supported per system.

The IC693DSM324 motion controller draws a current of 860 milliAmps and it requires an additional 500 milliAmps of current in order to provide a proper power supply for the external encoder. The unit is built from high-quality material and it has a metal case that can endure use in a demanding industrial environment.

The IC693DSM324 controller is a CE certified and UL listed component that operates within a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). In addition to that, the unit can be stored in temperatures from -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) and it can withstand moderate shock and vibration levels. Some of the features of the IC693DSM324 controller are high-speed operation, synchronous math functions, advanced handling of power losses, easy programming, an electronic CAM follower, and control of digital servo motors.

Technical Information :

Power Requirements

Power Supply Voltage:

Power Supply Current Draw by DSM:

5 VDC from Host Controller backplane

860 mA plus encoder supply current (see next item).

Available +5V Current per Module to supply external encoder, if used: 500 mA (if used, must be added to module +5V current draw)
PACSystems RX3i

Main Rack

Model 310 CPUs:

5 DSM324i modules in CPU baseplate per PWR 040

Series 90-30 Expansion/Remote Racks

(5 and 10-slot expansion or remote baseplates - 8 total baseplates per system)

2 DSM324i modules in remote baseplate with PWR321

3 DSM324i modules in expansion baseplate with PWR330/331

6 DSM324i modules in expansion/remote baseplate with PWR330/331

PACSystems RX3i Maximum 32 total DSM324i modules per PACSystems RX3i system
Series 90-30

Main Rack

Model 364, 374 CPUs:

1 DSM324i module in CPU baseplate with PWR321/322/328 4 DSM324i modules in CPU baseplate with PWR330/331

Main Rack

Model 350, 352, 360, 363 CPUs:

2 DSM324i modules in CPU baseplate with PWR321/322/328 5 DSM324i modules in CPU baseplate with PWR330/331

Expansion/Remote Racks

(5 and 10-slot expansion or remote baseplates - 8 total baseplates per system)

2 DSM324i modules in remote baseplate with PWR321/322/328 3 DSM324i modules in expansion baseplate with PWR330/331

6 DSM324i modules in expansion/remote baseplate with PWR330/331

Series 90-30 maximum 20 total DSM324i modules per Series 90-30 PLC system
