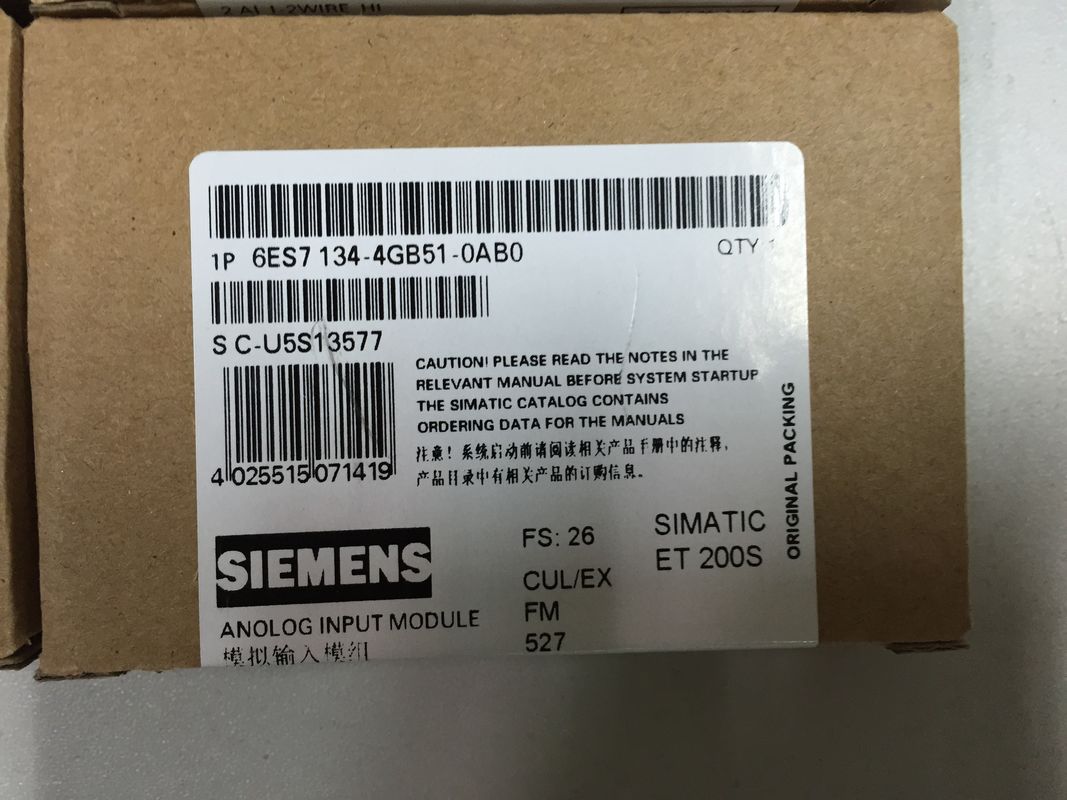

6ES7134-4GB51-0AB0 Siemens 2AI High Speed I-2-wire 4-20 mA Electronics module

6ES7134-4GB51-0AB0 Siemens 2AI High Speed I-2-wire 4-20 mA Electronics module

Product
Article Number (Market Facing Number) 6ES7134-4GB51-0AB0
Product Description ***Spare part*** SIMATIC DP, Electronics module

ET200S: 2AI High Speed I-2-wire 4-20 mA; 14 bit, 15 mm width, for 2-wire transducer

Cycle time of module: 1 ms, with SF LED (group fault)
Product family Not available
Product Lifecycle (PLM) PM500:Discontinued Product or end of PLM & Support
PLM Effective Date End of product lifecycle since: 2021.10.01
Notes
Product was deleted without replacement
If you need assistance please contact our local Siemens office
Price data
Price Group / Headquarter Price Group ZR / 2ET
List Price (w/o VAT) Show prices
Customer Price Show prices
Metal Factor None
Delivery information
Export Control Regulations ECCN : EAR99H / AL : N
Factory Production Time 1 Day/Days
Net Weight (kg) 0.001 Kg
Packaging Dimension 6.30 x 9.10 x 2.30
Package size unit of measure CM
Quantity Unit 0 Piece
Packaging Quantity 1
Additional Product Information
EAN 4025515071419
UPC 662643230826
Commodity Code 85389091
LKZ_FDB/ CatalogID ST9-E5
Product Group 4467
Group Code R151
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Product is not RoHS-compliant
Product class D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer)
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)
Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)
Classifications
Not available

OTHER SUPERIOR PRODUCTS

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
● Series mode interference (peak value of
interference < rated value of input range), min.
70 dB
Isochronous mode
Isochronous operation (application synchronized up
to terminal)
Yes
Interrupts/diagnostics/status information
Alarms
● Hardware interrupt Yes; Parameterizable
Diagnostic messages
● Wire-break Yes
● Group error Yes
● Overflow/underflow Yes
Diagnostics indication LED
● Group error SF (red) Yes
Parameter
Remark 12 byte
Diagnostics wire break Disable / enable
Measurement type/range Deactivated / 0 to 20 mA / 4 to 20 mA
Group diagnostics Disable / enable
Overflow/underflow Disable / enable
Potential separation
Potential separation analog inputs
● between the channels No
● between the channels and backplane bus Yes
● Between the channels and load voltage L+ No
Permissible potential difference
between MANA and M internally (UISO) 75V DC/60V AC
Isolation
Isolation tested with 500 V DC
Dimensions
Width 15 mm
Height 81 mm
Depth 52 mm
Weights
Weight, approx. 40 g
last modified: 27.10.2015
