6ES7223-1PH22-0AX0 Siemens SIMATIC S7-200, Digital I/O EM 223 8 DI 24 V DC

6ES7223-1PH22-0AX0 Siemens SIMATIC S7-200, Digital I/O EM 223 8 DI 24 V DC

  • 6ES7223-1PH22-0AX0  Siemens SIMATIC S7-200, Digital I/O EM 223 8 DI 24 V DC
  • 6ES7223-1PH22-0AX0  Siemens SIMATIC S7-200, Digital I/O EM 223 8 DI 24 V DC
6ES7223-1PH22-0AX0  Siemens SIMATIC S7-200, Digital I/O EM 223 8 DI 24 V DC
Product Details:
Place of Origin: USA
Brand Name: Siemens
Model Number: 6ES7223-1PH22-0AX0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negitiation
Packaging Details: in box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 100
Contact Now
Detailed Product Description
Product Name: Digital I O Module 6ES7214-1BD23-0XB0 Product: Digital I O Module
Model: 6ES7223-1PH22-0AX0 Brand: Siemens
PSIMATIC: S7-200 AC: Digital I/O
CPU: S20 / 2ET Country Of Origin: USA

6ES7223-1PH22-0AX0 Siemens SIMATIC S7-200, Digital I/O EM 223 8 DI 24 V DC







 Product
Article Number (Market Facing Number) 6ES7223-1PH22-0XA0
Product Description ***Spare part*** SIMATIC S7-200, Digital I/O EM 223, only for S7-22X CPU, 8 DI 24 V DC, Sink/Source, 8 DO relay, 2 A/channel
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 01.10.2017
Notes
This product is a Spare Part, please visit the Spares & Service section for more information
If you need assistance please contact our local Siemens office
Price data
Region Specific PriceGroup / Headquarter Price Group S20 / 2ET
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations ECCN : N / AL : N
Standard lead time ex-works 1 Day/Days
Net Weight (kg) 0,194 Kg
Packaging Dimension 8,50 x 10,00 x 6,90
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4025515162520
UPC Not available
Commodity Code 85389091
LKZ_FDB/ CatalogID ST9-E5
Product Group 4557
Group Code R131
Country of origin China
Compliance with the substance restrictions according to RoHS directive Since: 31.03.2008
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)
Classifications
Not available







OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
ABB Module AB Module 1756-,1759- Tourch Screen 2711-
Mitsubishi Drive MR- , Motor HA -,HC Emerson MoudlesVE- ,KJ -
Fanuc motor A0-, Drive Yokogawa transmitter EJA-
Rosemount Transmitter 3051- Schneider Module 140-
Panasonic Motor , Drive MH- Siemens Module 6ES-, Touch Screen 6AV-

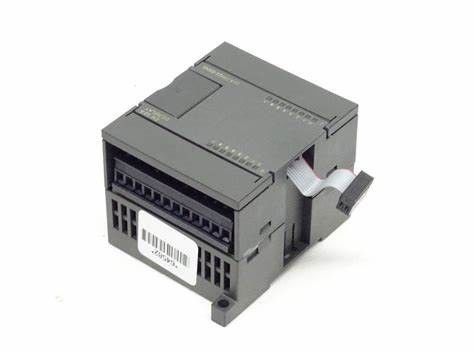

6ES7223-1PH22-0AX0  Siemens SIMATIC S7-200, Digital I/O EM 223 8 DI 24 V DC 0


Input voltage
● Type of input voltage AC/DC
● Rated value (DC) 24 V
● for signal "0" 0 to 5 V
● for signal "1" 15V DC to 30V DC
Input current
● for signal "1", typ. 4 mA
Input delay (for rated value of input voltage)
for standard inputs
— at "0" to "1", max. 4.5 ms
Digital outputs
Number of digital outputs 8; Relays
Short-circuit protection No
Output voltage
● for signal "0", max. 0.1 V; with 10 kOhm load
● for signal "1", min. L+/L1
Output current
● for signal "1" rated value 2 000 mA
Total current of the outputs (per group)
all mounting positions
— Current per conductor/group, max. 8 A
Relay outputs
● Number of operating cycles, max. 10 000 000; mechanically 10 million, at rated load voltage 100,000
Switching capacity of contacts
— with inductive load, max. 0.75 A; each output
— on lamp load, max. 200 W; 30 W with DC, 200 W with AC
— with resistive load, max. 0.75 A; each output
Cable length
● shielded, max. 500 m
● unshielded, max. 150 m
Encoder
Connectable encoders
● 2-wire sensor Yes
— permissible quiescent current (2-wire
sensor), max.
1 mA
Potential separation
Potential separation digital inputs
● Potential separation digital inputs Yes; Optocoupler
● between the channels, in groups of 4
Potential separation digital outputs
● Potential separation digital outputs Yes; Relays

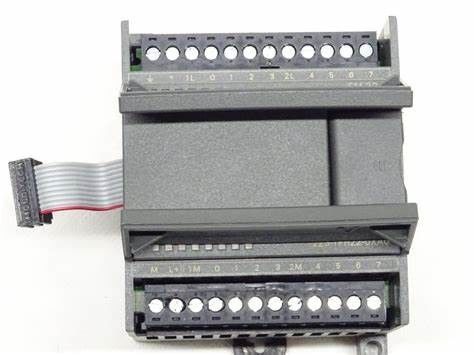

6ES7223-1PH22-0AX0  Siemens SIMATIC S7-200, Digital I/O EM 223 8 DI 24 V DC 1
