Product information ABB 3BSE038726R1 :

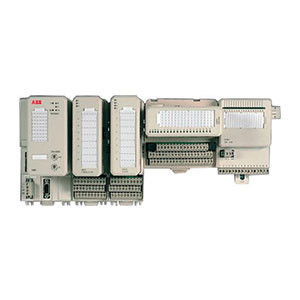

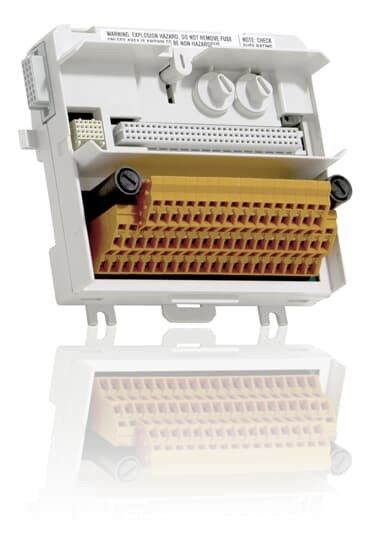

The TU833 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection.

The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. It is recommended that the fuse rating be chosen to meet the applications needs, see S800 I/O Getting Started chapter Power and Cooling.

The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.

More information about 3BSE038726R1 :


• Complete installation of I/O modules using 3-wire connections, fuses and field power distribution.
• Up to 16 channels of field signals and process power connections.
• Connections to ModuleBus and I/O modules.
• Mechanical keying prevents insertion of the wrong I/O module.
• Latching device to DIN rail for grounding.
• DIN rail mounting.
• Spring-case terminal.

Control System Products → I/O Products → S800 I/O → S800 I/O - Modules → DI810 Digital Inputs → DI810 Digital Input
Control Systems → 800xA → I/Os → S800 I/O → S800 I/O 4.0 → I/O Modules
Control Systems → 800xA → I/Os → S800 I/O → S800 I/O 4.1 → I/O Modules
Control Systems → 800xA → I/Os → S800 I/O → S800 I/O 5.0 → I/O Modules
Control Systems → 800xA → I/Os → S800 I/O → S800 I/O 5.1 → I/O Modules
Control Systems → 800xA → System → 800xA System → 800xA 6.0 System → I/O Modules
Control Systems → Advant OCS with Master SW → I/Os → S800 I/O → I/O Modules
Control Systems → Advant OCS with Master SW → System → Advant OCS with Master SW → Advant Fieldbus 100 → I/O Modules
Control Systems → Advant OCS with MOD 300 SW → I/Os → S800 I/O → I/O Modules
Control Systems → Compact Product Suite → I/Os → S800 I/O → S800 I/O 4.1 → I/O Modules
Control Systems → Compact Product Suite → I/Os → S800 I/O → S800 I/O 5.0 → I/O Modules
Control Systems → Compact Product Suite → I/Os → S800 I/O → S800 I/O 5.1 → I/O Modules
Control Systems → 800xA → I/Os → S800 I/O → S800 I/O 4.1 → I/O Modules
Control Systems → 800xA → I/Os → S800 I/O → S800 I/O 5.0 → I/O Modules
Control Systems → 800xA → I/Os → S800 I/O → S800 I/O 5.1 → I/O Modules
Control Systems → Compact Product Suite → I/Os → S800 I/O → S800 I/O 4.1 → I/O Modules
Control Systems → Compact Product Suite → I/Os → S800 I/O → S800 I/O 5.0 → I/O Modules
Control Systems → Compact Product Suite → I/Os → S800 I/O → S800 I/O 5.1 → I/O Modules


3BSE038726R1  's details:


Extend :

TU814V1(3BSE013233R1):16 channels for 24 V d.c. inputs with current sourcing​ 2 Isolated groups of 8 with voltage supervision
Note:  Use with I/O → AI810, AI815, AI820, AI830, AI835A, AI835, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820 and DP840.

TU850 (3BSE050930R1) :  Complete 2-wire connections for up to 16 channels.
Note: 40 up to 16 I/O channels , 16 current limited sensor/transmitter power outlets, D-sub connectors 25 pin (male).

TU838 ( 3BSE008572R1) : Complete installation of I/O modules using 3-wire connections,fuses and field power distribution.
Note: 40 , up to 16 I/O channels, 8 fused sensor power outlets, 4 Process power, 12 Process power.
