ABB 3BSE040662R1 CHANNEL 50 V 102 MM LENGTH 119 MM HEIGHT 45 MM WIDTH
Product information ABB 3BSE040662R1 :
-
Manufacturer : ABB
-
Product ID: 3BSE040662R1
-
Product type : AI830 Analog Input 1x8ch RTD
-
Number of Input Channels : 8
-
Power dissipation : 16W
-
Rated insulation voltage : 50 V
-
Dimensions (HxWxD), approx. : 11.9cm x 4.5cm x 10.2cm

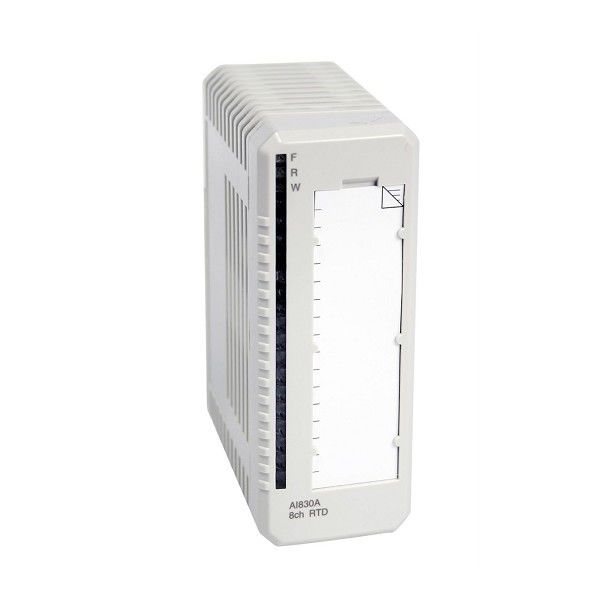

The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs). With 3-wire connections. All the RTDs must be isolated from ground.
The AI830/AI830A can be used with Pt100, Cu10, Ni100, Ni120 or resistive sensors. Linearization and conversion of the temperature to Centigrade or Fahrenheit is performed on the module.
Every channel can be individually configured. The MainsFreq parameter is used to set mains frequency filter cycle time. This will give a notch filter at the frequency specified (50 Hz or 60 Hz).
More information about 3BSE040662R1 :
- 8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) inputs
- 3-wire connection to RTDs
- 14 Bit resolution
- Inputs are monitored for open-circuit, shortcircuit and has a input grounded sensor
S800 l / O ModuleS800 I / O is a comprehensive , distributed and modular process I / O system that communicates with parent controllers overIdustry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors.
| Model |
Mechanics |
Type |
| AI801 |
S800L |
Analog Input |
| AI810 |
S800 |
Analog Input |
| AI815 |
S800 |
Analog Input |
| AI820 |
S800 |
Analog Input |
| AI825 |
S800 |
Analog Input |
| AI830A |
S800 |
Analog Input |
| AI835A |
S800 |
Analog Input |
| AI843 |
S800 |
Analog Input |
| AI845 |
S800 |
Analog Input |
| AI880A |
S800 |
Analog Input |
| A1890 |
S800 |
Analog Input |
| AI893 |
S800 |
Analog Input |
| AI895 |
S800 |
Analog Input |
| AO801 |
S800L |
Analog Input |
| AO810V2 |
S800 |
Analog Output |
| AO815 |
S800 |
Analog Output |
| AO820 |
S800 |
Analog Output |
| AO845A |
S800 |
Analog Output |
| AO890 |
S800 |
Analog Output |
| AO895 |
S800 |
Analog Output |
3BSE013233R1 's details:
Extend :
TU814V1(3BSE013233R1):16 channels for 24 V d.c. inputs with current sourcing 2 Isolated groups of 8 with voltage supervision
Note: Use with I/O → AI810, AI815, AI820, AI830, AI835A, AI835, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820 and DP840.
TU850 (3BSE050930R1) : Complete 2-wire connections for up to 16 channels.
Note: 40 up to 16 I/O channels , 16 current limited sensor/transmitter power outlets, D-sub connectors 25 pin (male).
TU838 ( 3BSE008572R1) : Complete installation of I/O modules using 3-wire connections,fuses and field power distribution.
Note: 40 , up to 16 I/O channels, 8 fused sensor power outlets, 4 Process power, 12 Process power.
