Name: New ABB Mounting Base TU847 3BSE022462R1 S800 I/O Module Termination Unit
Brand: Wisdomlong Technology CO.，LTD
SKU: TU847
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

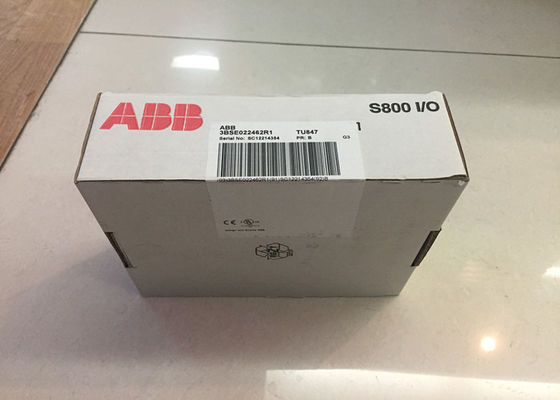

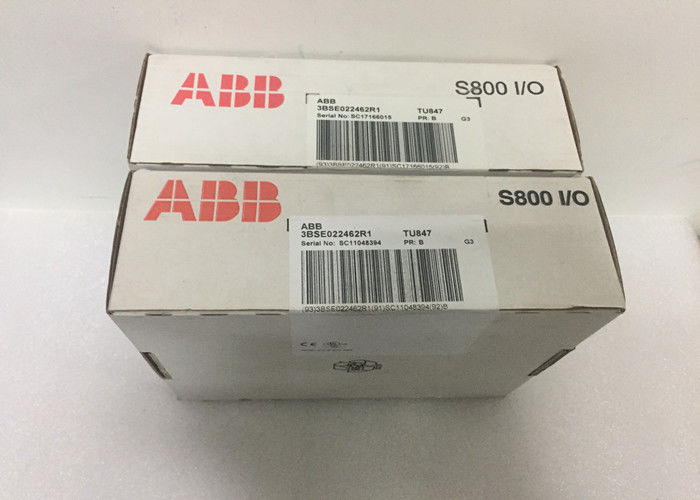

New ABB Mounting Base TU847 3BSE022462R1 S800 I/O Module Termination Unit

Product Details:

Brand Name:	ABB
Certification:	CE
Model Number:	TU847

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	TU847	Article Number:	3BSE022462R1
Protocol:	ABB's Modulebus	Rated Insulation Voltage:	50V
Dialectic Test Voltage:	500VAC	Power Input:	24 V D.c. (19.2 - 30 V)

New ABB Mounting Base TU847 3BSE022462R1 S800 I/O Module Termination Unit

Description of TU847

The TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806.
Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version (TU847Z).

General Information

Protocol	ABB's Modulebus
Article number	3BSE022462R1
Master or slave	Not Applicable
Module redundancy	Yes
Hot Swap	No
Type	Redundant CI840/CI840A, Single I/O
Power input	24 V d.c. (19.2 - 30 V)
Mounting	Vertical or Horizontal

Detailed data

Connector	PROFIBUS. DSUB9 connector Service ports: RJ45 connector
24 V consumption typ.	N/A
ModuleBus current distribution	Maximum 5 V 1.5 A Maximum 24 V 1.5 A
Mechanical Keys	36 different combinations
Acceptable wire sizes	0.25 - 2.5mm2, 24 - 14 AWG Recommended torque: 0.5 - 0.6 Nm Stripping length: 6-7.5 mm, 0.24-0.30 in
Rated insulation voltage	50 V
Dialectic test voltage	500 V a.c

Communications

Model No.	Protocol	Master or slave
CI801	PROFIBUS DP-V1	Slave
CI840A	PROFIBUS DP-V1	Slave
CI853	COMLI and MODBUS RTU	Master / Slave
CI854B	PROFIBUS DP-V1	Master
CI855	ABB's MasterBus 300	Master
CI856	ABB's S100 I/O	Master
CI857	ABB's INSUM	Master
CI858	ABB's DriveBus	Master
CI860	FOUNDATION Fieldbus HSE	Master / Slave
CI865	ABB's Satt I/O	Master
CI867	MODBUS TCP	Master / Slave
CI868	IEC 61850	Master / Slave
CI869	ABB's Advant Fieldbus 100	Slave
CI871	PROFINET IO	Master
CI873	EtherNet IP / DeviceNet	Master
TB820V2	ABB's Modulebus	Slave
TB825 (Multi Mode)	ABB's Modulebus	Slave
TB826 (Single Mode)	ABB's Modulebus	Slave
TB840A	ABB's Modulebus	Slave
TB842	ABB's Modulebus	Not Applicable
TU807	ABB's Modulebus	Not Applicable
TU840	ABB's Modulebus	Not Applicable
TU841	ABB's Modulebus	Not Applicable
TU846	ABB's Modulebus	Not Applicable
TU847	ABB's Modulebus	Not Applicable
TU848	ABB's Modulebus	Not Applicable
TU849	ABB's Modulebus	Not Applicable

Environmental and certification

Temperature, Operating	55° C (131° F) horizontal mounted. 40° C (104° F) vertical mounted
Temperature, Storage	-25° C (-13° F) to +70° C (158° F)
Equipment class	Class 1 according to IEC 60536; (earth protected)
Ingress protection	IP20 according to IEC 529, (IEC 144)
CE- marking	Yes
Electrical Safety	cULus
Hazardous location	cULus Hazardous Location Class1 Zone 2, ATEX Zone 2
Marine certificates	ABS, BV, DNV-GL, LR, RS, CCS
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU

Features and benefits

• Power supply connection.
• Two PROFIBUS connections.
• Two service tool connections.
• Two rotary switch for station address setting.
• ModuleBus connections.
• Connector for ModuleBus Optical Port.
• Mechanical keying prevents insertion of the wrong module type.
• Latching device to DIN rail for locking and grounding.
• DIN rail mounted.

Dimensions

Height	186 mm (7.32”) including latch
Width	124 mm (4.88”)
Depth	47 mm (1.85”)
Weight (including base)	0.5 kg (1.1 lbs.)

Some ABB items sold by WTL:

New ABB Mounting Base TU847 3BSE022462R1 S800 I/O Module Termination Unit 0

Liability:

WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
