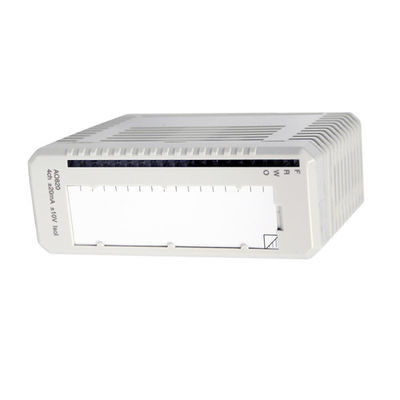

Name: ABB 3BSE052605R1 OUTPUT MODULE AO815 ANALOG 1 X 8 CHANNEL 4-20 MA W/ HART
Brand: Wisdomlong Technology CO.，LTD
SKU: 3BSE052605R1
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

ABB 3BSE052605R1 OUTPUT MODULE AO815 ANALOG 1 X 8 CHANNEL 4-20 MA W/ HART

Product Details:

Place of Origin:	USA
Brand Name:	abb
Model Number:	3BSE052605R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	New in original boxRockwell Automation
Delivery Time:	5-8 work daysRockwell Automation
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Condition:	New	Voltage:	50 V
Channels:	8	Warranty:	1 Year
Type:	Analog Output	Signal Specification:	4..20 MA
Mechanics:	S800	Global Commercial Alias:	3BSE052605R1

ABB 3BSE052605R1 OUTPUT MODULE AO815 ANALOG 1 X 8 CHANNEL 4-20 MA W/ HART

Product information ABB 3BSE052605R1 :

Product ID:3BSE052605R1
ABB Type Designation: AO815
Catalog Description: AO815 Analog output 8 ch
1x8 ch. 4..20mA, 12bit, RLmax 750 ohm.
Use Module Termination Unit TU810, TU812, TU814, TU830 or TU833.

The AO815 Analog Output Module has 8 unipolar analog output channels. The module performs self-diagnostic cyclically. Module diagnostics include:

External Channel Error is reported (only reported on active channels) if the process power supply that supply voltage to output circuitry is too low, or the output current is less than the output set value and the output set value is greater than 1 mA (open circuit).
Internal Channel Error is reported if the output circuit can not give the right current value.
Module Error is reported in case of Output Transistor Error, Short Circuit, Checksum Error, Internal Power Supply Error or Watchdog error.

The module has HART pass-through functionality. Only point to point communication is supported. The output filter must be enabled on channels used for HART communication.

More information about 3BSE052605R1:

8 channels of 4...20 mA
1 group of 8 channels isolated from ground
Analog inputs are short circuit secured to ZP or +24 V
HART pass-through communication

Model	Mechanics	Type
AI801	S800L	Analog Input
AI810	S800	Analog Input
AI815	S800	Analog Input
AI820	S800	Analog Input
AI825	S800	Analog Input
AI830A	S800	Analog Input
AI835A	S800	Analog Input
AI843	S800	Analog Input
AI845	S800	Analog Input
AI880A	S800	Analog Input
A1890	S800	Analog Input
AI893	S800	Analog Input
AI895	S800	Analog Input
AO801	S800L	Analog Input
AO810V2	S800	Analog Output
AO815	S800	Analog Output
AO820	S800	Analog Output
AO845A	S800	Analog Output
AO890	S800	Analog Output
AO895	S800	Analog Output

3BSE052605R1 's details:

Extend :

TU814V1(3BSE013233R1):16 channels for 24 V d.c. inputs with current sourcing 2 Isolated groups of 8 with voltage supervision
Note: Use with I/O → AI810, AI815, AI820, AI830, AI835A, AI835, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820 and DP840.

TU850 (3BSE050930R1) : Complete 2-wire connections for up to 16 channels.
Note: 40 up to 16 I/O channels , 16 current limited sensor/transmitter power outlets, D-sub connectors 25 pin (male).

TU838 ( 3BSE008572R1) : Complete installation of I/O modules using 3-wire connections,fuses and field power distribution.
Note: 40 , up to 16 I/O channels, 8 fused sensor power outlets, 4 Process power, 12 Process power.

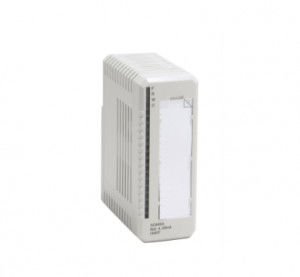

ABB 3BSE052605R1 OUTPUT MODULE AO815 ANALOG 1 X 8 CHANNEL 4-20 MA W/ HART 1
