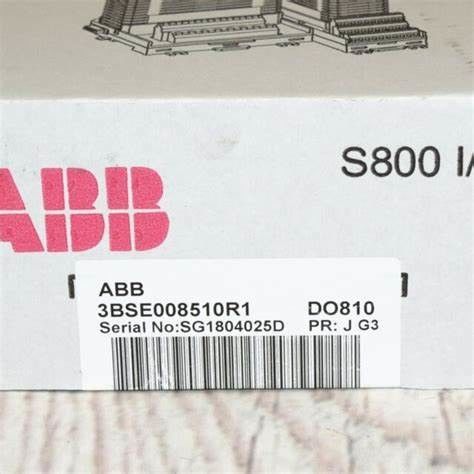

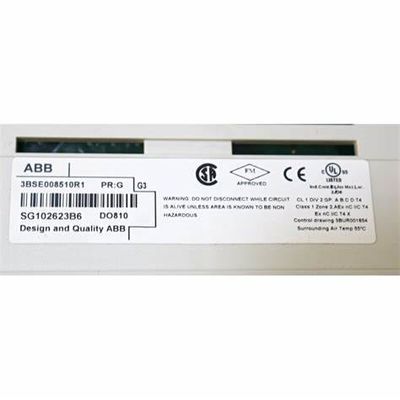

ABB 3BSE008510R1 DIGITAL OUTPUT MODULE 0.5 AMP 24 VDC 16 CHANNEL SHORT CIRCUIT PROOF
Product information ABB 3BSE008510R1 :
-
Manufacturer: ABB
-
Product no : 3BSE008510R1
-
Product type : DO810 Digital Output
-
I/O Voltage, DC: 24 V d.c.
-
Number of Output Channels: 16
-
I/O Current, DC : 500 mA
-
Product Net Height: 7.5 cm
Product Net Length: 15 cm
Product Net Width: 15 cm
This module has 16 digital outputs. The output voltage range is 10 to 30 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature.
The outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.
The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus. The outputs are current limited and protected against over temperature. If the outputs are overloaded the output current will be limited.
More information about 3BSE008510R1 :
- 16 channels for 24 V d.c. current sourcing outputs
- 2 isolated groups of 8 channels with process voltage supervision
- Output status indicators
- OSP sets outputs to predetermined state upon error detection
- Short-circuit protection to ground and 30 V
- Over-voltage and over-temperature protection
| Model |
Mechanics |
Type |
| AI801 |
S800L |
Analog Input |
| AI810 |
S800 |
Analog Input |
| AI815 |
S800 |
Analog Input |
| AI820 |
S800 |
Analog Input |
| AI825 |
S800 |
Analog Input |
| AI830A |
S800 |
Analog Input |
| AI835A |
S800 |
Analog Input |
| AI843 |
S800 |
Analog Input |
| AI845 |
S800 |
Analog Input |
| AI880A |
S800 |
Analog Input |
| A1890 |
S800 |
Analog Input |
| AI893 |
S800 |
Analog Input |
| AI895 |
S800 |
Analog Input |
| AO801 |
S800L |
Analog Input |
| AO810V2 |
S800 |
Analog Output |
| AO815 |
S800 |
Analog Output |
| AO820 |
S800 |
Analog Output |
| AO845A |
S800 |
Analog Output |
| AO890 |
S800 |
Analog Output |
| AO895 |
S800 |
Analog Output |
3BSE008510R1 's details:
Extend :
TU814V1(3BSE013233R1):16 channels for 24 V d.c. inputs with current sourcing 2 Isolated groups of 8 with voltage supervision
Note: Use with I/O → AI810, AI815, AI820, AI830, AI835A, AI835, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820 and DP840.
TU850 (3BSE050930R1) : Complete 2-wire connections for up to 16 channels.
Note: 40 up to 16 I/O channels , 16 current limited sensor/transmitter power outlets, D-sub connectors 25 pin (male).
TU838 ( 3BSE008572R1) : Complete installation of I/O modules using 3-wire connections,fuses and field power distribution.
Note: 40 , up to 16 I/O channels, 8 fused sensor power outlets, 4 Process power, 12 Process power.
