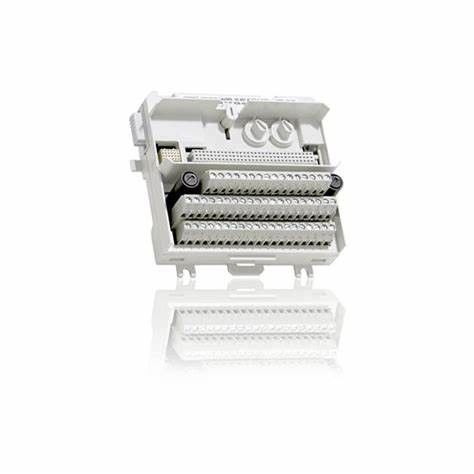

ABB 3BSE013236R1 8 FUSED POWER OUTLETS 8 SIGNAL TERMINALS 50 V EXTENDED MODULE
Product information ABB 3BSE013236R1 :
-
Manufacturer: ABB
- Product no : 3BSE013236R1
- Channels 8
- Voltage 50 V
- Mounting Both directions
- Mounting detail 55 ºC (131 °F)
- Use with I/O AI810, AI815 and AI845
- Process connections 16
- up to 8 I/O channels
- (2 terminals per channel)
- 4 Process power
- 4 Process power (0V)
- Single/redundant I/O Single
The TU835V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 50V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU.
It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver.
Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module.
Each key has six positions, which gives a total number of 36 different configurations.
More information about 3BSE013236R1 :
- Up to 8 channels of field signals and process power connections.
- Each channel has one fused transducer power terminal and one signal connection.
- Process voltage can be connected to 2 individually isolated groups.
- Connections to ModuleBus and I/O modules.
- Mechanical keying prevents insertion of the wrong I/O module.
- Latching device to DIN rail for grounding.
- DIN rail mounting.
| Model |
Mechanics |
Type |
| AI801 |
S800L |
Analog Input |
| AI810 |
S800 |
Analog Input |
| AI815 |
S800 |
Analog Input |
| AI820 |
S800 |
Analog Input |
| AI825 |
S800 |
Analog Input |
| AI830A |
S800 |
Analog Input |
| AI835A |
S800 |
Analog Input |
| AI843 |
S800 |
Analog Input |
| AI845 |
S800 |
Analog Input |
| AI880A |
S800 |
Analog Input |
| A1890 |
S800 |
Analog Input |
| AI893 |
S800 |
Analog Input |
| AI895 |
S800 |
Analog Input |
| AO801 |
S800L |
Analog Input |
| AO810V2 |
S800 |
Analog Output |
| AO815 |
S800 |
Analog Output |
| AO820 |
S800 |
Analog Output |
| AO845A |
S800 |
Analog Output |
| AO890 |
S800 |
Analog Output |
| AO895 |
S800 |
Analog Output |
3BSE066490R1 's details:
Extend :
TU814V1(3BSE013233R1):16 channels for 24 V d.c. inputs with current sourcing 2 Isolated groups of 8 with voltage supervision
Note: Use with I/O → AI810, AI815, AI820, AI830, AI835A, AI835, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820 and DP840.
TU850 (3BSE050930R1) : Complete 2-wire connections for up to 16 channels.
Note: 40 up to 16 I/O channels , 16 current limited sensor/transmitter power outlets, D-sub connectors 25 pin (male).
TU838 ( 3BSE008572R1) : Complete installation of I/O modules using 3-wire connections,fuses and field power distribution.
Note: 40 , up to 16 I/O channels, 8 fused sensor power outlets, 4 Process power, 12 Process power.
