New ABB I O Module 3BSE023675R1 AI845 Analog Input. Redundant or Single 1x8ch. HART

Product Details:

Place of Origin:	China
Brand Name:	ABB
Certification:	CE
Model Number:	AI845

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	AI845	Brand:	ABB
Article Number:	3BSE023675R1	Signal Type:	Unipolar Single Ended
Signal Specification:	0..20mA, 4..20 MA, 0..5 V, 1..5 V	Type:	Analog Input

New ABB I O Module 3BSE023675R1 AI845 Analog Input. Redundant or Single 1x8ch. HART

Description of AI845 :

The AI845 Analog Input Module for single or redundant applications. The module has 8 channels. Each channel can be either a voltage or current input when MTU TU844 or TU845 is used, when other MTUs are used all channels become voltage or current inputs.
The voltage and current input is able to withstand an overvoltage or undervoltage of at least 11 V d.c. The input resistance for voltage input is greater than 10 M ohm and the input resistance for current input is 250 ohm.
The module distributes the external HART compatible transmitter supply to each channel. This adds a simple connection to distribute the supply to 2-wire or 3-wire transmitters. The transmitter power is supervised and current limited.

General Information

Type	Analog Input
Signal specification	0..20mA, 4..20 mA, 0..5 V, 1..5 V
Article number	3BSE023675R1
Number of channels	8
Signal type	Unipolar single ended
HART	Yes
SOE	No
Redundancy	Yes
High integrity	No
Intrinsic safety	No
Mechanics	S800

I/O Modules

AI801	AI810	AI815	AI820	AI825
AI830A	AI835A	AI843	AI845	AI880A
AI890	AI893	AI895	AO801	AO810V2
AO815	AO820	AO845A	AO890	AO895
DI801	DI802	DI803	DI810	DI811
DI814	DI818	DI820	DI821	DI825
DI828	DI830	DI831	DI840	DI880
DI890	DO801	DO802	DO810	DO814
DO815	DO818	DO820	DO821	DO828
DO840	DO880	DO890	DP820	DP840

Detailed data

Resolution	12 bit
Input impedance	10 MΩ (voltage input) 250 Ω (current input incl. PTC)
Isolation	Groupwise isolated from ground
Under/over range	0 / +15%
Error	Max. 0.1%
Temperature drift	Max. 50 ppm/°C
Input filter (rise time 0-90%)	290 ms
Update cycle time	10 ms
Current limiting	Built in current limited transmitter power
Maximum field cable length	600 meters (656 yards)
Max input voltage (non destructive)	11 V d.c.
NMRR, 50Hz, 60Hz	> 40 dB
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	3.5 W
Current consumption +5 V Modulebus	100 mA
Current consumption +24 V Modulebus	50 mA
Current consumption +24 V external	Max. 265 mA (22 mA + transmitter current * 1.32)

Diagnostics

Front LED’s	F(ault), R(un), W(arning)
Supervision	Module error: analog read back, reference voltage, internal power supply, checksum, watchdog and memory error Internal channel error: low pass filter´, multiplexer, test channel error External channel error: external power supply low, transmitter power, external shunt error
Status indication of supervision	Module Error, Module Warning, Channel error

Features and benefits

8 channels for 0...20 mA, 4...20 mA, 0...5 V or 1...5 V d.c., single ended unipolar inputs
Single or redundant operation
1 group of 8 channels isolated from ground
12 Bit resolution
Current limited transmitter supply per channel
Advanced on-board diagnostics
HART pass-through communication

Compability

Use with MTU	TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, TU844, TU845, TU854
Keying code	CC

Dimensions

Height	119 mm (4.7”)
Width	45 mm (1.77”)
Depth	102 mm (4.01”), 111 mm (4.37”) including connector
Weight	0.23 kg (0.51 lbs.)

Terminal:

TU814V1

TU810V1

TU833

TU838

TU812V1

TU850

TU830V1

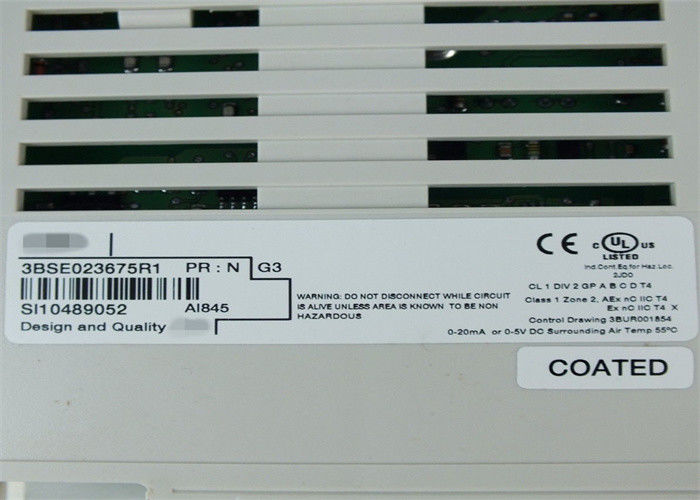

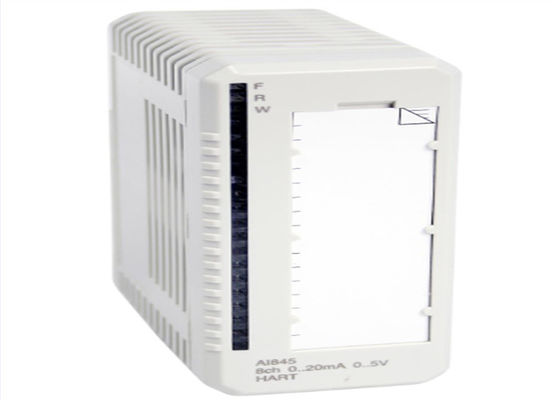

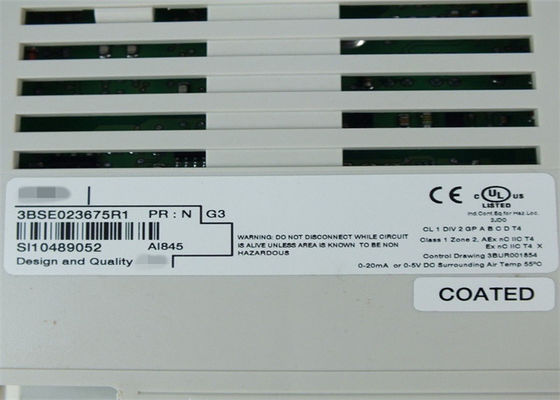

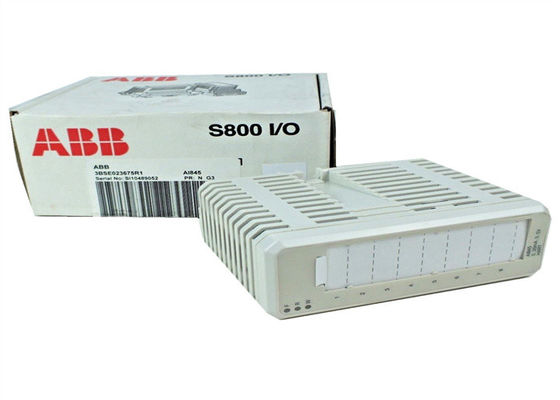

Picture of AI845
