Name: GE IC200MDD850 MIXED MODULE VERSAMAX DISCRETE 240 VAC INPUT 4 INPUTS / 8 OUTPUTS
Brand: Wisdomlong Technology CO.，LTD
SKU: IC200MDD850
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

GE IC200MDD850 MIXED MODULE VERSAMAX DISCRETE 240 VAC INPUT 4 INPUTS / 8 OUTPUTS

Product Details:

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC200MDD850

Payment & Shipping Terms:

Price:	negotiation

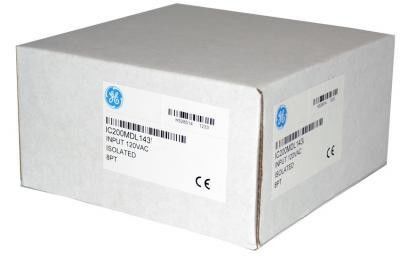

Packaging Details:	New in original boxRockwell Automation
Delivery Time:	5-8 work daysRockwell Automation
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Condition:	New	Nominal Output Voltage:	120 / 240 VAC
Product Type:	Input Module	Warranty:	1 Year
Memory Requirement:	4 Bytes	Rated Voltage:	11 Watts
Output Voltage Range:	5 Volts DC And 3.3 Volts DC	Communication Rate:	16 Outputs

GE IC200MDD850 MIXED MODULE VERSAMAX DISCRETE 240 VAC INPUT 4 INPUTS / 8 OUTPUTS

Product information GE IC200MDD850 :

IC200MDD850 is a Mixed Output Relay from the VersaMax family of parts. This discrete module with both input and output capabilities provides four isolated discrete inputs with eight relay outputs. Inputs are positive logic or sourcing type as they get current from an AC input device and return currents on the common.

This relay offers inputs with individual returns. Outputs on the relay are individually isolated and can drive 2A per output maximum. Specific to this Form A output, the contact is closed as long as the host CPU is active in addition to the corresponding output logic bit set at 1.

To power this module, the output loads must be powered through an external source though overall operation comes from the backplane. The CPU or NIU performs intelligent processing for the IC200MDD850. Each module has standard LED indicators to demonstrate on/off states of both the input and output points. LED operation is logic driven and independent of any of the load connections.

When installing the IC200MDD850, make sure to carefully inspect all parts out of the box to make sure nothing is damaged. Installing a damaged module could damage the overall unit. Installation is simple with clear cut directions readily available. Specific to this module, backplane current consumption is 5V output with a 275mA maximum. Input voltage in the on state range is from 155 to 264VAC with an off state voltage of 0 to 40VAC.

IC200MDD850
MIXED MODULE
VERSAMAX
DISCRETE
240 VAC INPUT
4 INPUTS / 8 OUTPUTS
RELAY OUTPUT
120/240 VAC / 5/24/125 VDC OUTPUT
2 AMP

Features:
Powerful and Reliable VersaMax controllers provide powerful, reliable operation. Modular, high-density VersaMax IO is versatile, compact, and affordable.

Its scalable architecture and ease of use save time and money for both machine builders and end users. Media redundancy and hot swap capability increase uptime. A broad range

Designed to minimize costs, these versatile controllers are easy to use and support and offer a wide range of I/O expansion modules and communications options.

More information:

	IC200MDD850	IC200MDD851
Product Name	VersaMax Discrete Mixed Modules 240 VAC Input Isolated 4 points/Output Relay 2 .0 A Isolated 8 points	VersaMax Discrete Mixed Modules 5/12 VDC Input 16 points/Output 12/24 VDC 16 points
Lifecycle Status	Active	Active
Input Voltage	0-264 VAC (47-63 Hz), 240 VAC nominal	0 to 15 VDC, +5/12 VDC nominal
Output Voltage	0-125 VDC, 5/24/125 VDC nominal; 0-265 VAC (47-63 Hz), 120/240 VAC nominal	+10 .2 to +30 VDC, +12/24 VDC nominal
Number of Points	8 out/4 in	16 out/16 in
Channel to Channel Isolation	Yes	No
Load Current per Point	2 .0 A	0 .5 Amps at 30 VDC maximum (resistive) 2 .0 Amps maximum for 100ms inrush
Input and Output Response Time- On/Off(ms)	1 cycle/2 cycle and 10/10	0 .25ms maximum/0 .2ms ON and 1 .0ms OFF maximum
Protection	No internal fuses or snubbers	No internal fuses or snubbers
On State Current	4 mA minimum	1 .45 mA minimum
Off State Current	1 .5 mA maximum	0 to 0 .7 mA maximum
External Power Supply	N/A	+10 .2 to +30 VDC, +12/24 VDC nominal
Input Impedance	38 .5 kOhms (reactive) at 60 Hz, typical; 46 .3 kOhms (reactive) at 50 Hz, typical	2 .4kOhms typical @ 12 VDC
Load Current	10 mA per point minimum; 2 .0 A for 5-265 VAC maximum (resistive); 2 .0 A for 5-30 VDC maximum (resistive); 0 .2 A for 31-125 VDC maximum (resistive)	0 .5 Amps at 30 VDC maximum (resistive); 2 .0 Amps maximum for 100ms inrush
5V Backplane Current Consumption (mA)	260 maximum	115 maximum
LED Indicators	One LED per point shows individual point on/off state logic side); OK LED indicates backplane power is present	One LED per point shows individual point on/off state logic side); OK LED indicates backplane power is present
Dimensions (W x H x D)	110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors	110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors

Another module:

IC694MDL230	120 VAC Isolated Input (8 Points)
IC694MDL231	240 VAC Isolated Input (8 Points)
IC694MDL240	120 VAC Input (16 Points)
IC694MDL241	24 VAC/VDC Input (16 Points)
IC694MDL250	120 VAC Isolated Input (16 Points)
IC694MDL260	120 VAC Input (32 Points)**
IC694MDL632	125 VDC Input (8 Points)
IC694MDL634	24 VDC Input, Neg/Pos Logic (8 Points)
IC694MDL645	24 VDC Input, Neg/Pos Logic (16 Points)
IC694MDL646	24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points)
IC694MDL654	5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points)
IC694MDL655	24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points)
IC694MDL660	24 VDC Input (32 Points)**
IC694ACC300	Input Simulator Module (8 Points)

GE IC200MDD850 MIXED MODULE VERSAMAX DISCRETE 240 VAC INPUT 4 INPUTS / 8 OUTPUTS 0
