GE IC200MDL640 INPUT MODULE VERSAMAX 24V DC POSITIVE/NEGATIVE LOGIC 16 DISCRETE POINTS

GE IC200MDL640 INPUT MODULE VERSAMAX 24V DC POSITIVE/NEGATIVE LOGIC 16 DISCRETE POINTS

Product information GE IC200MDL640 :

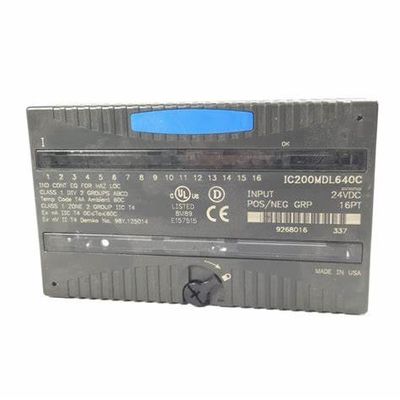

IC200MDL640 is a 24 VDC Positive Negative Logic Input Module with 16 Points manufactured by GE Fanuc for the VersaMax series.

The IC200MDL640 provides two sets of 8 discrete inputs and 16 bits of discrete input data. Inputs in each set can be either positive logic or negative logic. Positive logic inputs receive current from input devices and return the current on the common. Negative-logic inputs, on the other hand, receive current from the common and return current to the input device. Input devices are linked between the common terminals and the input terminals.

It is important to note that negative-logic functionality requires module version IC200MDL640C or higher. The IC200MDL640 is powered by the backplane. Intelligent processes for this module are facilitated by the CPU/ NIU. Individual LEDs emit green to show the on/off state of each input point. The OK LED only turns ON when backplane power is available.


The IC200MDL640 has a basic input on/off response time of 0.5ms. Some of its applications may, however, require additional filtering to compensate for conditions such as noise spikes or switch bounce.

• IC200MDL640
• INPUT MODULE
• VERSAMAX
• 24V DC
• POSITIVE/NEGATIVE LOGIC
• 16 DISCRETE POINTS (TWO GROUPS OF 8)
• BACKPLANE POWER SUPPLY
• CPU/NIU INTELLIGENT PROCESSING
  ​

Features:
Powerful and Reliable VersaMax controllers provide powerful, reliable operation. Modular, high-density VersaMax IO is versatile, compact, and affordable.

Its scalable architecture and ease of use save time and money for both machine builders and end users. Media redundancy and hot swap capability increase uptime. A broad range

Designed to minimize costs, these versatile controllers are easy to use and support and offer a wide range of I/O expansion modules and communications options.
