Name: ABB S800 Analog Input Module AI825 3BSE036456R1 Digital I/O Module 4 channels
Brand: Wisdomlong Technology CO.，LTD
SKU: AI825
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

ABB S800 Analog Input Module AI825 3BSE036456R1 Digital I/O Module 4 channels

Product Details:

Place of Origin:	China
Brand Name:	ABB
Certification:	CE
Model Number:	AI825

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	AI825	Brand:	ABB
Article Number:	3BSE036456R1	Product Name:	Input Module
Signal Specification:	-20..+20 MA, 0(4)..20 MA, -10..+10 V, 0(2)..10V	Number Of Channels:	4

ABB S800 Analog Input Module AI825 3BSE036456R1 Digital I/O Module 4 channels

Description of AI825:

The AI825 Analog Input Module has 4 individually galvanic isolated, bipolar current/voltage inputs. Each channel can be either a voltage or current input.

The module has a direct current input that withstand up to 6.3 V and a over voltage protected current input that withstand up to +30 V d.c. The current is limited by a PTC resistor.

Power to the input stages is converted from the 24 V on the ModuleBus.

General Information

Type	Analog Input
Signal specification	-20..+20 mA, 0(4)..20 mA, -10..+10 V, 0(2)..10V
Article number	3BSE036456R1
Number of channels	4
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

I/O Modules

AI801	AI810	AI815	AI820	AI825
AI830A	AI835A	AI843	AI845	AI880A
AI890	AI893	AI895	AO801	AO810V2
AO815	AO820	AO845A	AO890	AO895
DI801	DI802	DI803	DI810	DI811
DI814	DI818	DI820	DI821	DI825
DI828	DI830	DI831	DI840	DI880
DI890	DO801	DO802	DO810	DO814
DO815	DO818	DO820	DO821	DO828
DO840	DO880	DO890	DP820	DP840

Detailed Data:

Resolution	14 bit plus sign
Input impedance	10 MΩ (voltage input) 50 Ω (current input)
Isolation	Individually isolated, channel-to-channel and to circuit common
Under/over range	± 15%
Error	Max. 0.1%
Temperature drift	Max. 47 ppm/°C (0..10V), Max. 34 ppm/°C (±10V), Max. 78 ppm/°C (0..20mA), Max. 57 ppm/°C (±20mA)
Input filter (rise time 0-90%)	115 ms (voltage input), 130 ms (current input)
Update cycle time	< 10ms
Maximum field cable length	600 meters (656 yards)
CMRR, 50Hz, 60Hz	120 dB
NMRR, 50Hz, 60Hz	> 40 dB at 50 Hz, >55 dB at 60 Hz
Rated insulation voltage	250 V
Dielectric test voltage	1900 V d.c. ch-ch, 3250 V d.c. ch-ground/system,
Power dissipation	Typ. 2.5 W, Max. 3.2 W
Current consumption +5 V Modulebus	Typ. 70 mA, Max. 100 mA
Current consumption +24 V Modulebus	Typ. 90 mA, Max. 110 mA
Current consumption +24 V external	0

Diagnostics

Front LED’s	F(ault), R(un), W(arning)
Supervision	Internal Power Supply
Status indication of supervision	Module Error, Module Warning, Channel error

Features and benefits

4 channels individually galvanic isolated inputs for +20 mA, 0...20 mA, 4...20 mA, +10 V, 0...10 V, 2...10 V
14 Bit resolution plus sign
Input shunt resistors protected to 30 V d.c.
The input withstands HART communication

Compability

Use with MTU	TU811, TU813, TU831
Keying code	DA

Dimensions

Height	119 mm (4.7”)
Width	45 mm (1.77”)
Depth	102 mm (4.01”), 111 mm (4.37”) including connector
Weight	0.22 kg (0.49 lbs.)

Terminal:

TU814V1

TU810V1

TU833

TU838

TU812V1

TU850

TU830V1

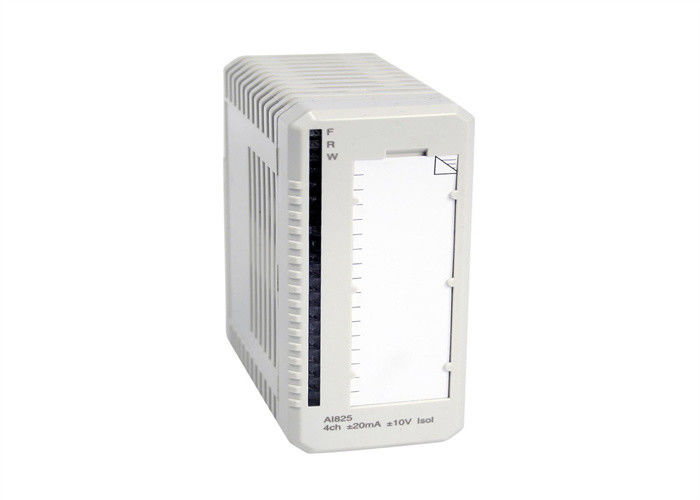

Picture of AI825
