BC810K01 CEX-Bus Interconnection Unit 3BSE031154R1 PLC Controller Modules

 BC810K01 CEX-Bus Interconnection Unit 3BSE031154R1 AC 800M Communication Modules

Product Information Of : BC810K01

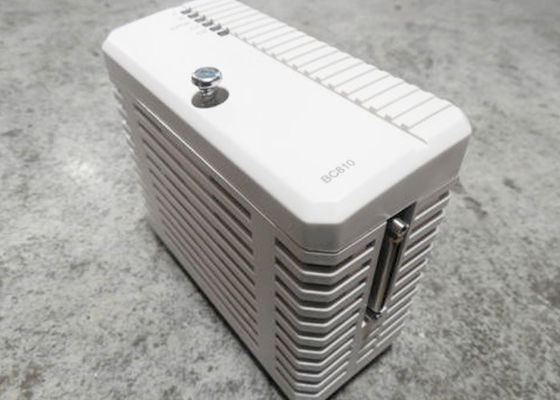

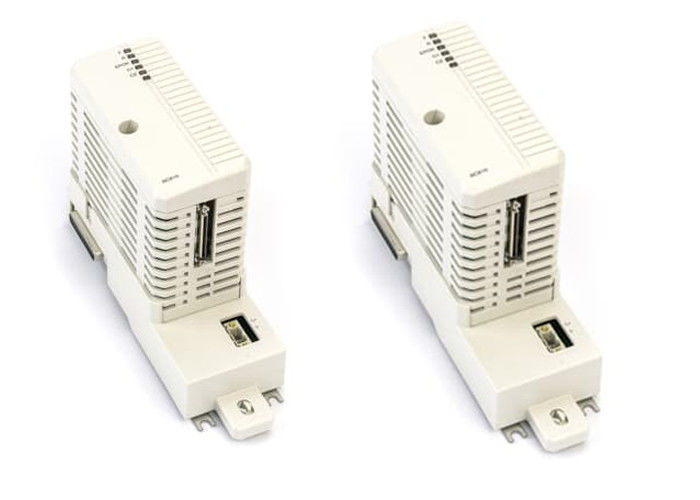

   The BC810 unit consists of two basic parts: baseplate (TP857) and power supply/logic board. The baseplate is where the connectors to CEX-Bus and the external power reside. It is grounded to the DIN-rail through metal parts of the housing. The board also carries the external power voting diode and fuse. The power supply and logic board contain the +3.3 V converter, logic, drivers for CEX-Bus interconnection, and the connector for the interconnection cable.

   The BC810 can be used with PM857, PM861A, PM862, PM863, PM864A, PM865, PM866, PM866A, PM867 and PM891.

General info :

Article number : 3BSE031154R1

Catalog Description : BC810K01 CEX-bus Interconnection Unit

Type Designation : BC810K01

Medium Description : BC810K01 CEX-bus Interconnection Unit, Spare Part

Redundancy : Yes
High Integrity : Yes
Performance : Hot swap supported

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

1, BC810K01 CEX-bus Interconnection Unit Kit Including:
   - BC810, Interconnection Unit
   - TP857, Baseplate, width = 60 mm
   - TB850, CEX-Bus Terminator

2, Power supply : Inputs designated L+ and L- 24 V nominal, variation between 19.2 V DC and 30 V DC.
3, Power consumption +24 V typ/max : 50 mA typical (70 mA max)
4, Power dissipation typ. : 1.2 W typical

Features and benefits :

• Supports redundant communication interface units.
• Supports on-line replacement of the CPU.
• External power supply.
• Supports hot swap

Categories :

Products » Control System Products » Control & Communication » AC 800M » AC 800M - Communication Modules » BC810 CEX-bus Interconnection Units » BC810K02 CEX-bus Interconnection Unit
