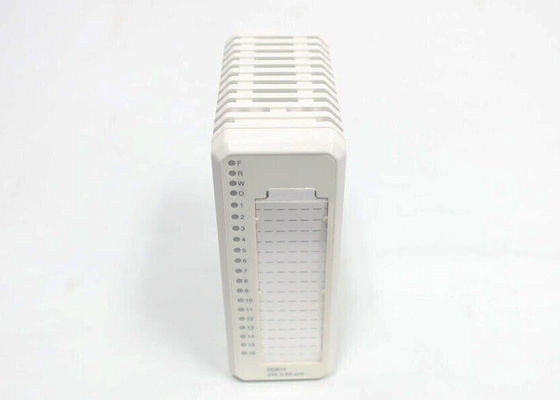

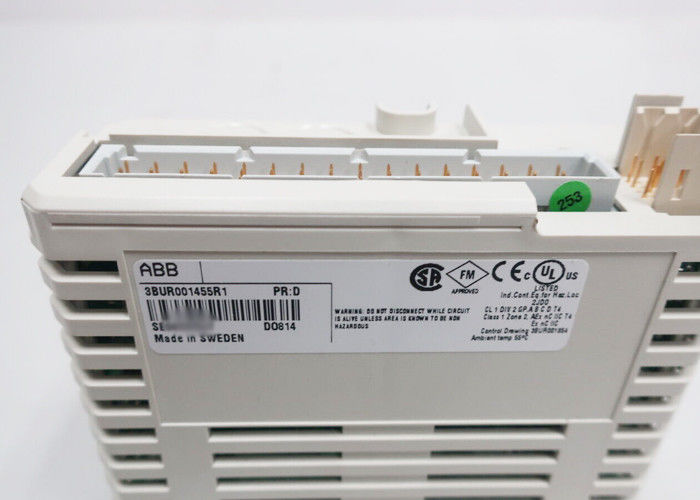

DO814 Digital Output Current 16Ch 3BUR001455R1 ABB S800 I/O Module

 DO814 Digital Output Current 16Ch 3BUR001455R1 ABB S800 I/O Module

Product Information Of : 3BUR001455R1 DO814

   The DO814 is a 16 channel 24 V digital output module with current sinking for the S800 I/O. The output voltage range is 10 to 30 volt and the maximum continuous current sinking is 0.5 A. The outputs are protected against short circuits and over temperature. The outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group.

General info :

Article number : 3BUR001455R1

Catalog Description : DO814 Digital Output Current 16 ch

Type Designation : DO814

Type : Digital Output

Number of channels : 16

Signal specification : 24 V d.c. (12-32 V d.c.), 0.5 A

Signal type : Current sinking, current limiting

Mechanics : S800

Isolation : Groupwise isolated from ground

Rated insulation voltage : 50 V
Dielectric test voltage : 500 V a.c.
Power dissipation : Typ. 2.1 W

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

1, Isolated in two groups of 8 channels.
2, 0,5A , shortcut circuit proof. Current sinking.
3, Use Module Termination Unit TU810, TU812, TU814, TU830, TU833, TU838.

Features and benefits :

1, 16 channels for 24 V d.c. current sinking outputs
2, 2 isolated groups of 8 channels with process voltage supervision
3, Output status indicators
4, OSP sets outputs to predetermined state upon error detection
5, Short-circuit protection to ground and 30 V
6, Over-voltage and over-temperature protection

Categories :

Products » Control System Products » I/O Products » S800 I/O » S800 I/O - Modules » DO814 Digital Outputs » DO814 Digital Output Current
