DO815 3BSE013258R1 Digital Output 24V 8Ch ABB S800 I/O Module

 DO815 3BSE013258R1 Digital Output 24V 8Ch ABB S800 I/O Module

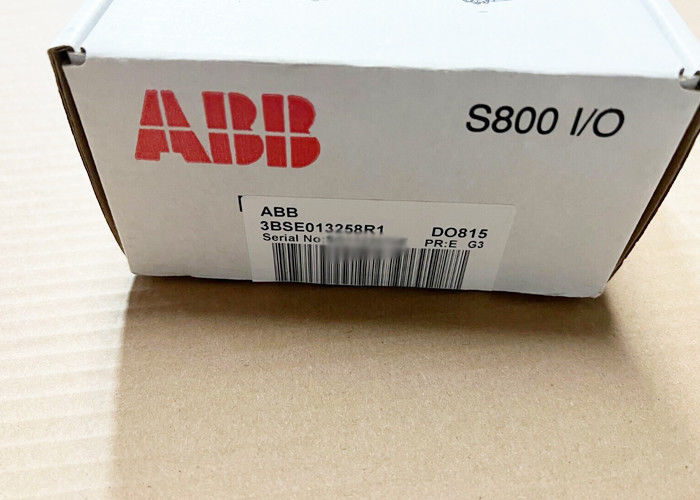

Product Information Of : DO815 3BSE013258R1

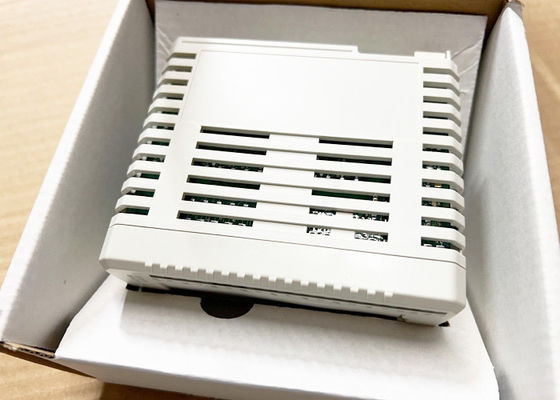

   The DO815 is a 8 channel 24 V digital output module for the S800 I/O. The output voltage range is 10 to 30 V and the maximum continuous output current is 2 A @ 24 V. The outputs are protected against short circuits, and over load. The outputs are divided into two individually isolated groups with four output channels in each group. Each output channel consists of a short circuit and over load protected high side driver with open load detection (on active signal), EMC protection components, inductive load suppression, output status indication LEDs and optical isolation barrier.

General info :

Article number : 3BSE013258R1

Catalog Description : DO815 Digital Output 24V 8 ch

Type Designation : DO815

Type : Digital Output

Number of channels : 8

Signal specification : 24 V d.c. (10 - 32 V d.c.), 2A

Signal type : High side driver, current limiting

Mechanics : S800

Isolation : Groupwise isolated from ground

Output load : < 0.25 Ω

Current limiting : Short circuit proof current limited output
Power dissipation : Typ. 4 W

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

1, Isolated in two groups of 4 channels.
2, 2.0A short circuit proof.
3, Use Module Termination Unit TU810, TU812, TU814, TU830, TU833.

Features and benefits :

1, 8 channels for 24 V d.c. current sourcing outputs
2, 2 isolated groups of 4 channels with under voltage detection
3, OSP sets outputs to predetermined state upon communication error
4, Output status indicators and a channel wise error flag
5, Short-circuit protection to ground and positive supply
6, Over load protection
7, Open load and short-circuit detection
8, Two output fault operation modes: Automatic reset mode and Fault latching mode
9, Inductive load driving capability
10, Filament lamp load up to 10W

Categories :

Products » Control System Products » I/O Products » S800 I/O » S800 I/O - Modules » DO815 Digital Outputs » DO815 Digital Output
