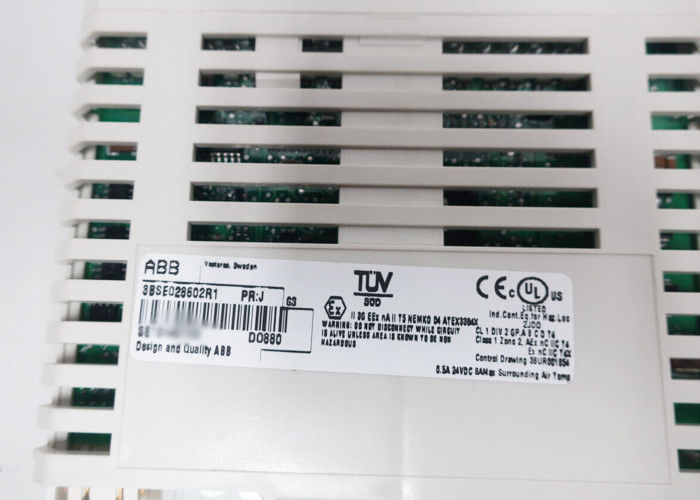

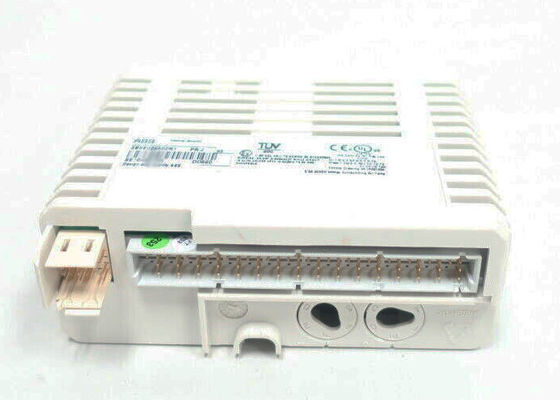

ABB 3BSE028602R1 DO880 S800 I/O Digital Output HI S/R 16ch Module

 ABB 3BSE028602R1 DO880 S800 I/O Digital Output HI S/R 16ch Module

Product Information Of : 3BSE028602R1 DO880

    The DO880 is a 16 channel 24 V digital output module for single or redundant application. The maximum continuous output current per channel is 0.5 A. The outputs are current limited and protected against over temperature. Each output channel consists of a current limited and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and an isolation barrier to the Modulebus.

General info :

Article number : 3BSE028602R1

Catalog Description : DO880 Digital Output HI S/R 16 ch

Type Designation : DO880

Type : Digital Output

Number of channels : 16

Signal specification : 24 V d.c. (19.2 - 32 V d.c.), 0.5 A

Signal type : Current sourcing, current limiting

Mechanics : S800

Isolation : Groupwise isolated from ground

Rated insulation voltage : 50 V
Dielectric test voltage : 500 V a.c.

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

1, 24V d.c., 0,5A Outputs. High integrity, certified for SIL3. Single or redundant. Requires configuration according to Safety Manual.
2, Use Module Termination Unit TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852

Features and benefits :

1, 16 channels for 24 V d.c. current sourcing outputs in one isolated group
2, Redundant or single configuration
3, Loop monitoring, supervision of short and open load with configurable limits (see table Table 97).
4, Diagnostic of output switches without pulsing on outputs
5, Advanced on-board diagnostics
6, Output status indicators (activated/error)
7, Degraded mode for normally energized channels (supported from DO880 PR:G)
8, Current limitation at short circuit and over-temperature protection of switches

Categories :

Products » Control System Products » I/O Products » S800 I/O » S800 I/O - Modules » DO880 Digital Outputs » DO880 Digital Output
