3BSE040364R1 TU834 Extended MTU 50V Terminals Module Used With AI880A

 3BSE040364R1 TU834 Extended MTU 50V Terminals Module Used With AI880A

Product Information Of : 3BSE040364R1 TU834

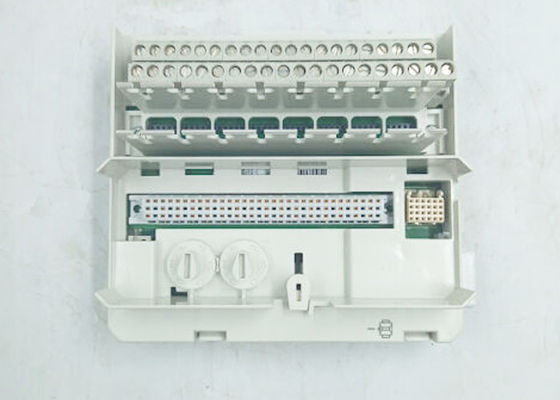

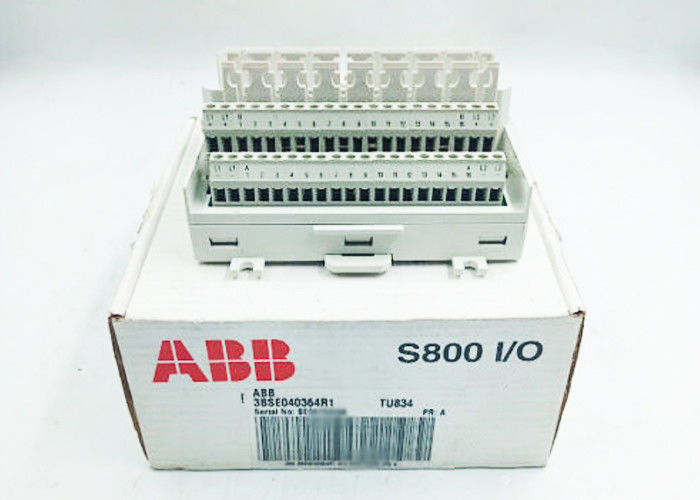

   The TU834 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU.

General info :

Article number : 3BSE013235R1

Catalog Description : TU834 Extended MTU, 50V

Type Designation : TU834

Type : Extended

Connection : Terminal block
Channels : 8
Voltage : 50 V

Dielectric test voltage : 500 V a.c.
Mounting : Both directions

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

1, Use with I/O : AI880 and AI880A

2, Shunt Stick not included.

3, Single/redundant I/O : Single

Features and benefits :

1. Complete installation of I/O modules using 2-wire connections and field power distribution.
2, Up to 8 channels of field signals and process power connections.
3, Mechanical keying prevents insertion of the wrong I/O module.
4, Latching device to DIN rail for grounding.
5, DIN rail mounting.
6, Include 8 individual shunt sticks.

Categories :

Products » Control System Products » I/O Products » S800 I/O » S800 I/O - Module Termination Units » TU834 Termination Units » TU834 Extended MTU
