Name: 1769-OF8V Digital I O Module AB Analog Output Module 1769 CompactLogix controller
Brand: Wisdomlong Technology CO.，LTD
SKU: 1769-OF8V
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

1769-OF8V Digital I O Module AB Analog Output Module 1769 CompactLogix controller

Product Details:

Place of Origin:	Japan
Brand Name:	AB
Certification:	CE
Model Number:	1769-OF8V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	New Original
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	AB	Product Type:	Digital I O Module
Part Number:	1769-OF8V	Place Of Origin:	Japan
Signal Range::	4...20mA, 0...20mA	Temperature Rating::	-20...55 Â°C (-4...131 Â°F)

1769-OF8V Digital I O Module AB Analog Output Module 1769 CompactLogix controller

Product Description

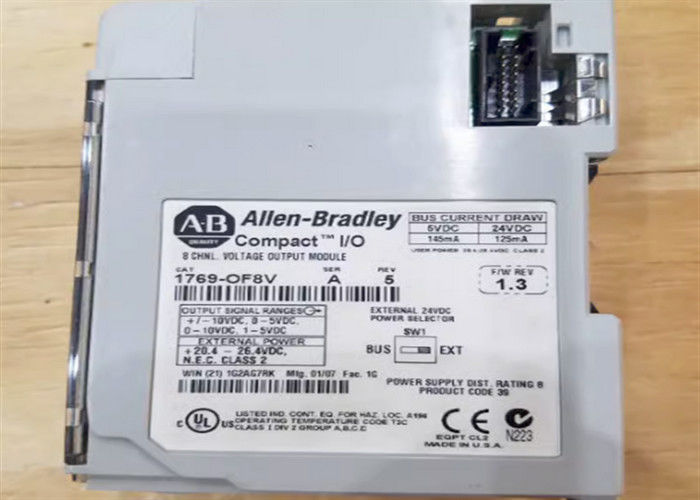

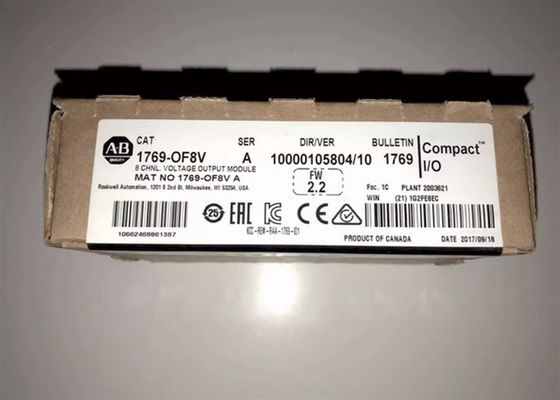

1769-OF8V
I/O MODULE
COMPACTLOGIX
8 POINT ANALOG
VOLTAGE OUTPUT
24 VDC

Technical Specifications

Brand	AB / Rockwell Automation
Series	1769 compact voltage output analog module
Part Number	1769-OF8V
Number of analog outputs	8 single-ended outputs
Rated working voltage	30V AC/30V DC
Current draw at 5.1V / 24V	145 mA / 125 mA
Heat dissipation	2.16 W
Output impedance (voltage/current)	1 ohm
Output range	±10V DC, 0…10V DC, 0…5V DC, 1…5V DC
Resolution	16 bits plus sign (bipolar)
Wire size and type	0.325… 2.080 mm2 (22…14 AWG) solid copper wire or 0.325…1.310 mm2 (22…16 AWG) stranded copper wire rated at 90 °C (194 °F ) insulation max
Operating temperature range	0 °C...60 °C (32 °F...140 °F)
Dimensions (H x W x D), approx	118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height including mounting tabs is 138 mm (5.43 in.)
Weight	263 g (0.58 lb)
Power supply	1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4

Specifications

Brand Name	Allen Bradley	Sub Brand	CompactLogix™
Item Name	Analog Output Voltage Module	Type	Analog Output
Output	8 Analog	Dimensions	35 mm W x 87 mm D x 118 mm H
Resolution	16-Bit Analog Output	Connection	Plug-in
Mounting Type	DIN Rail,Panel Mount	Standards	C-TICK,CUL,GOST,KC,MARINE,UL
UPC	662468861380
