TU838 3BSE008572R1 Extended MTU Unit 50V Terminal Block Module S800

 TU838 3BSE008572R1 Extended MTU Unit 50V Terminal Block Module S800

Product Information Of : TU838 3BSE008572R1

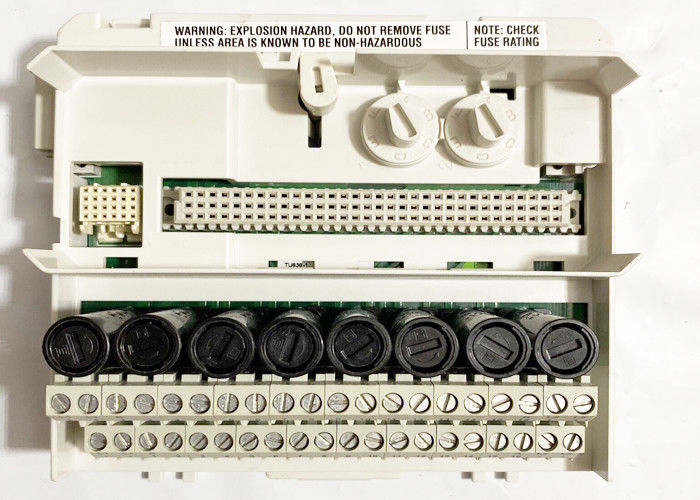

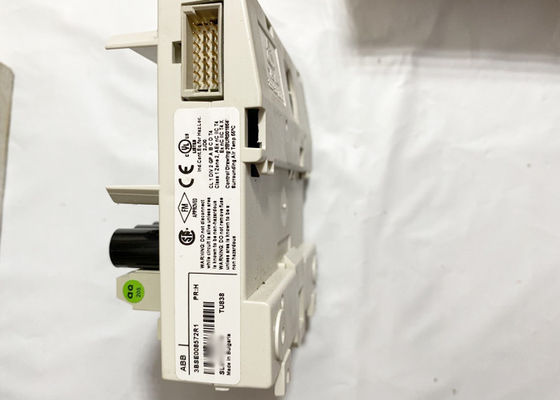

   The TU838 MTU can have up to 16 I/O channels. The maximum rated voltage is 50 V and maximum rated current is 3 A per channel.The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

   The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.

   Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

General info :

Article number : 3BSE008572R1

Catalog Description : TU838 Extended MTU, 50V

Type Designation : TU838

Type : Extended

Connection : Terminal block
Channels : 16
Voltage : 50 V

Mounting : Both directions

Mounting detail : 55 ºC (131 °F)

Single/redundant I/O : Single

Dielectric test voltage : 500 V a.c.

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

1, Use with I/O : AI810, AI815, AI845, DI810, DI811, DI814, DI830, DI831, DI840 and DO814

2, Extended Module Termination Unit 2x4 fused transducer power outlets, 16 signal terminals, 2x4 return terminals, 2x2 L+, 2x2 L- terminals.

3, Module is mounted horizontally.

Features and benefits :

1. Complete installation of I/O modules using 3-wire connections, fuses and field power distribution.
2, Up to 16 channels of field signals and 8 process power connections.
3, Two channels share one fused transducer power terminal.
4, Process voltage can be connected to 2 individually isolated groups, if the I/O module supports it.
5, Connections to ModuleBus and I/O modules.
6, Mechanical keying prevents insertion of the wrong I/O module.
7, Latching device to DIN rail for grounding.
8, DIN rail mounting.

Categories :

Products » Control System Products » I/O Products » S800 I/O » S800 I/O - Module Termination Units » TU838 Termination Units » TU838 Extended MTU
