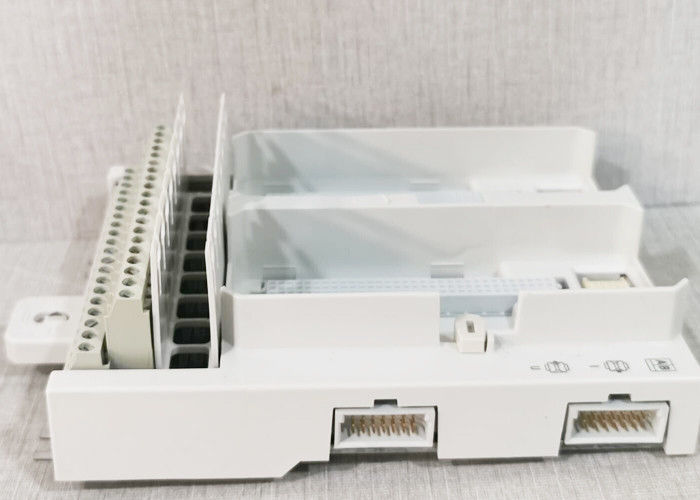

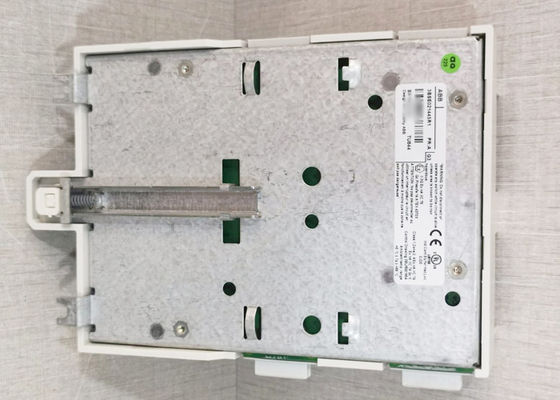

TU844 3BSE021445R1 Terminal Block Module Redundant MTU Unit 50V S800

  TU844 3BSE021445R1 Terminal Block Module Redundant MTU Unit 50V S800

Product Information Of : TU844 3BSE021445R1

   The TU844 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The shunt stick is used to choose between voltage and current input. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel.

   The MTU distributes the two ModuleBuses, one to each I/O module and to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU.

General info :

Article number : 3BSE021445R1

Catalog Description : TU844 Redundant MTU, 50V

Type Designation : TU844

Type : Redundant

Connection : Terminal block
Channels : 8
Voltage : 50 V

Mounting : Horizontal
Mounting detail : 55 º (131 °F)

Single/redundant I/O : Redundant

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

1, Horizontal DIN rail mounting.
2, Shunt Stick not included.

3, Use with I/O : AI845, AI880, AI880A and DP840

Features and benefits :

1. Complete installation of I/O modules using 2-wire connections and field power distribution.
2, Up to 8 channels of field signals and process power connections.
3, Connections to two ModuleBuses and I/O modules.
4, Mechanical keying prevents insertion of the wrong I/O module.
5, Latching device to DIN rail for grounding.
6, DIN rail mounting.

Categories :

Products » Control System Products » I/O Products » S800 I/O » S800 I/O - Module Termination Units » TU844 Termination Units » TU844 Redundant MTU
