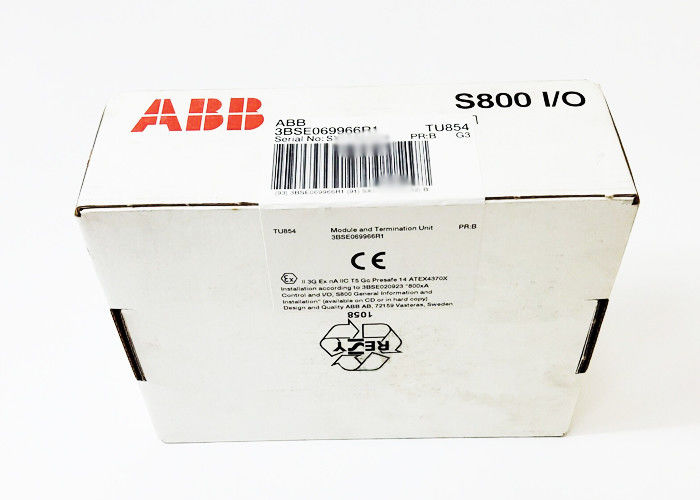

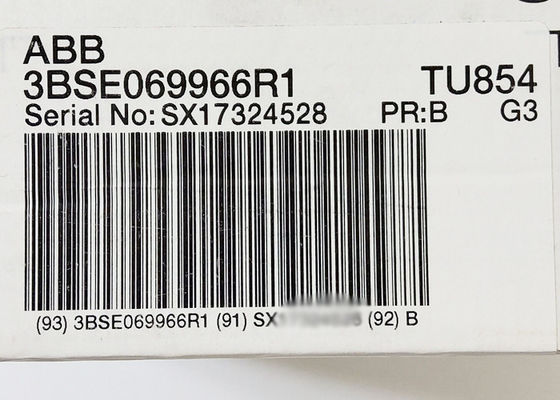

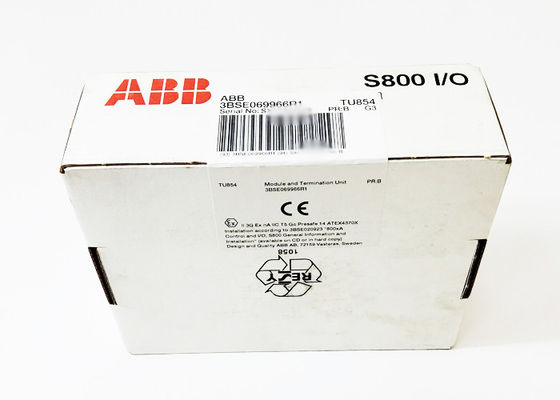

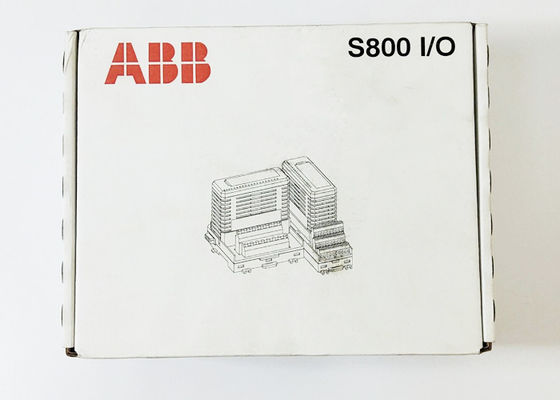

3BSE069966R1 TU854 Terminal Block Unit Redundant MTU 50V S800 Module

  3BSE069966R1 TU854 Terminal Block Unit Redundant MTU 50V S800 Module

Product Information Of : 3BSE069966R1 TU854

   The TU854 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The shunt stick is used to choose between voltage and current input. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the two ModuleBuses, one to each I/O module and to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU.

General info :

Article number : 3BSE069966R1

Catalog Description : TU854 MTU, Redundant, 50V

Type Designation : TU854

Type : Redundant

Connection : 25 pin D-sub
Channels : 16
Voltage : 50 V

Mounting : Horizontal

Single/redundant I/O : Redundant

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

1, Horizontal DIN rail mounting.
2, Shunt Stick not included.

3, Use with I/O : AI845, AI880A and DP840

4, With 1x25 pin D-sub connector.

Features and benefits :

1. Up to 8 channels of field signals and process power connections.
2, Connections to two ModuleBuses and I/O modules.
3, Mechanical keying prevents insertion of the wrong I/O module.
4, Latching device to DIN rail for grounding.

Categories :

Products » Control System Products » I/O Products » S800 I/O » S800 I/O - Module Termination Units » TU854 Termination Units » TU854 MTU, Redundant
