1756-PB75 AB 95 W Input 24 Volts DCControlLogix Power Supply Digital I O Module

1756-PB75 AB 95 W Input 24 Volts DCControlLogix Power Supply Digital I O Module

Technical Specifications for 1756-A10
Manufacturer Rockwell Automation
Operating Temperature, Series C -25…+60 °C (-13…+140 °F)
Operating Temperature, Series B 0°C to +60°C (+32°F to +140°F)
No. of mounting tabs Six (6)
Orientation Horizontal
Backplane Current, Chassis/Slot @ 24VDC 2.8 A/2.8 A
Backplane Current, Chassis/Slot @ 5.1VDC 15 A/6 A
Backplane Current, Chassis/Slot @ 3.3VDC 4A/4 A
Backplane Current, Chassis/Slot @ 1.2VDC 1.5 A
No. of slots Ten (10) slots
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Cabinet size (HxWxD), min 50.8 x 76.2 x 20.3 cm (20 x 30 x 8 in.)
Brand AB
Part Number/Catalog No. 1756-A10

Series ControlLogix
Module Type Chassis
Power dissipation, max 5 W
Mounting Panel Mount
Slots 10
Power Dissipation (Max) 5 Watts
Dimensions 20 x 30 x 8 inches
Weight 3.2 pounds (1.45 kilograms)
Enclosure Open
Backplane Current (5 Volts DC) 10 amps
Backplane Current (24 Volts DC) 2.8 Amps
UPC 10612598129277
UNSPSC 32151704

OTHER SUPERIOR PRODUCTS

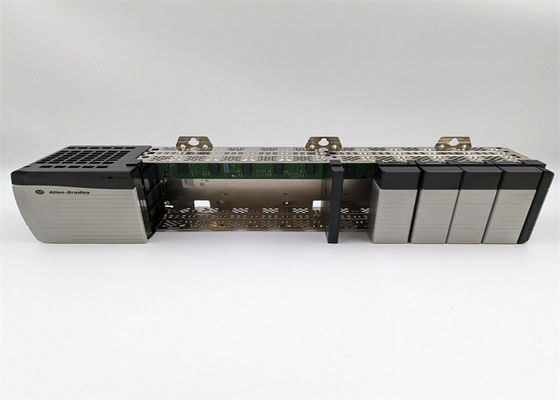

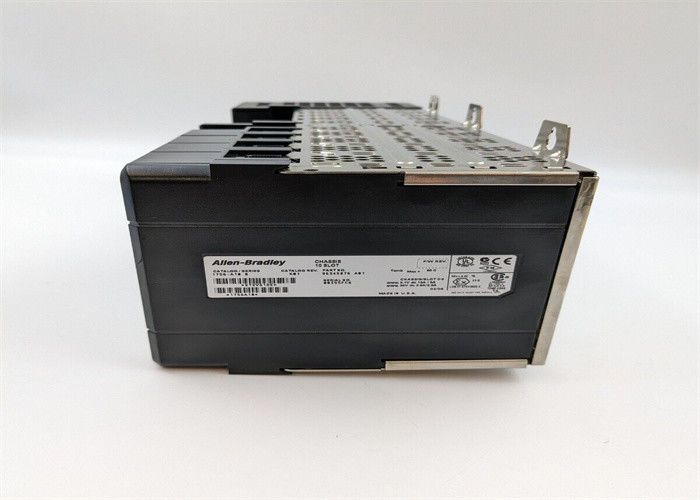

The AB 1756-A10 is a Then (10) slot ControlLogix chassis. This hardware hosts the electronic connectivity among the ControlLogix modules with maximum backplane current rating of 1.5 A @ 1.2VDC; 4A/4A @ 3.3 VDC; 15 A/6 A @ 15 A/6 A and 2.8 A/2.8 A @ 24VDC.

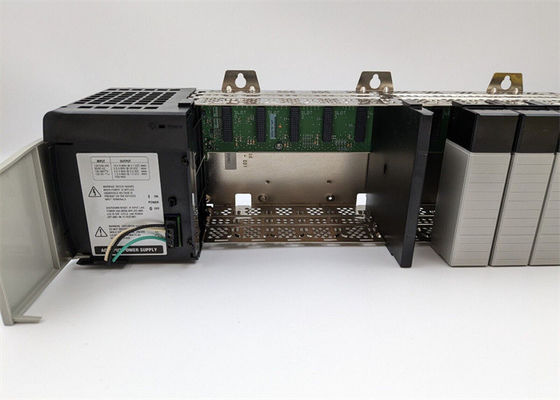

This chassis supports panel mounting with installation clearances of 15.3 cm (6.0 in.) for Top and bottom clearance and 10.2 cm (4.0 in.) plus the width of the power supply for side clearance. If installed side by side with another ControlLogix chassis, the required clearance between the chassis is 7.7 cm (3.0 in.) plus the width of the power supply. ControlLogix power supplies, whether standard, slim or redundant power supplies have dedicated slot situated at the left most location and do not occupy a chassis slot.

The 1746-A10 is available in Two (2) series, B and C. Series B chassis has an operating temperature range of 0…60 °C (0…140 °F) and -25…+60 °C (-13…+140 °F) for Series C modules while maximum surrounding air temperature is 60 °C (140 °F) for both series. This chassis is also provided with Functional Earth Ground that is designed to be terminated with 8.3 sq. mm. or 8 AWG solid or stranded copper wire with insulation rating of 90 °C (194 °F) or higher. It also has a Protective Earth Ground and designed to be terminated using a 2.1 sq. mm. or 14 AWG solid or stranded copper wire with insulation rating of 90 °C (194 °F) or higher.

The 1756-A10 has a backplane electrical rating of 1.5 A/1.5A backplane current between the chassis and slots (chassis/slot) at 1.2V, one of 4/4A at 3.3V, and one of up to 2.8 A/2.8 A at 24V. It has a 5-Watt power dissipation (6.1 BTU/hr Thermal dissipation equivalent), and it has a maximum operational power consumption of 1.8W. It is designated with a T5 environmental temperature code (North America), and with a T6 IEC code (European Union). The 1756-A10 also has an open-style enclosure. It has an operating temperature between 0 and 60 °C (32 and 40 °F) at 5-95% non-condensing humidity and it is shipped at a temperature range between -40 and 85 °C (-40 and 185 °F). It has an IEC 60068-2-27 rated operational shock withstand of 30G and it can sustain a vibration of 2G at 10-500 Hz when operational. The 1756-A10 has a cabinet dimension of 20 x 30 x 8in. and it weighs 3.2lb.

EtherNet/IP Network Configuration
EtherNet/IP Communication Modules
1756-ENBT, 1756-EN2F, 1756-EN2T, 1756-EN2TP, 1756-EN2TPK, 1756-EN2TPXT, 1756-EN2TR, 1756-EN2TRXT,
1756-EN2TSC, 1756-EN2TXT, 1756-EN3TR, 1756-EWEB, 1768-ENBT
CompactLogix 5370 Controllers
EtherNet/IP Adapters
1734-AENT, 1734-AENTR, 1769-AENTR, 1794-AENT, 20-COMM-E, 22-COMM-E, 20-750-ENETR
Embedded Switches
1783-ETAP, 1783-ETAP1F, 1783-ETAP2

The AB 1756-OF8 is an analog output module that is part of the ControlLogix platform. This analog module may be used to control and modulate electrical and field devices, transmit or re-transmits signals for interfacing with measuring and recording instruments or for any other purpose.

FAQ for 1756-A10
What is the supported mounting method of the 1756-A10?

The 1756-A10 support direct panel mounting via the mounting tabs.

How many ControlLogix module slots does the 1756-A10 have?

The 1756-A10 has Ten (10) slots.

Does the power supply slot included to the slot count of the 1756-A10?

The power supply slot, located at the left most side of the chassis is not part of the chassis slot count.
