Name: AB 1746-NI16I I/O Module 16 Inputs Configurable For 0 To 20 MA 4 To 20 MA
Brand: Wisdomlong Technology CO.，LTD
SKU: 1746-NI16I
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

AB 1746-NI16I I/O Module 16 Inputs Configurable For 0 To 20 MA 4 To 20 MA

Product Details:

Place of Origin:	USA
Brand Name:	AB
Model Number:	1746-NI16I

Payment & Shipping Terms:

Price:	negotiation
Packaging Details:	New in original boxRockwell Automation
Delivery Time:	5-8 work daysRockwell Automation
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Condition:	New	Nominal Output Voltage:	120 / 240 VAC
Product Type:	Input Module	Warranty:	1 Year
Memory Requirement:	4 Bytes	Rated Voltage:	11 Watts
Output Voltage Range:	0 To 60 Degrees Celsius	Communication Rate:	16 Outputs
Highlight:	1746-NI16I , 16 Inputs I O Module , 1746-NI16I I O Module

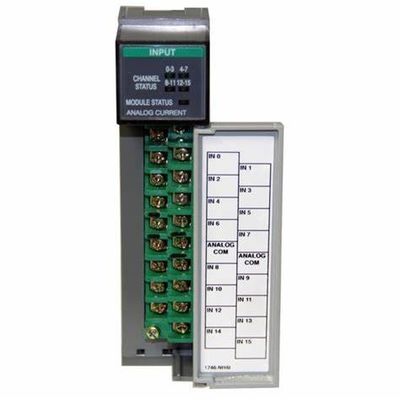

AB 1746-NI16I I/O Module has Sixteen (16) Inputs configurable for 0 to 20 mA 4 to 20 mA

Product information AB 1746-NI16I :

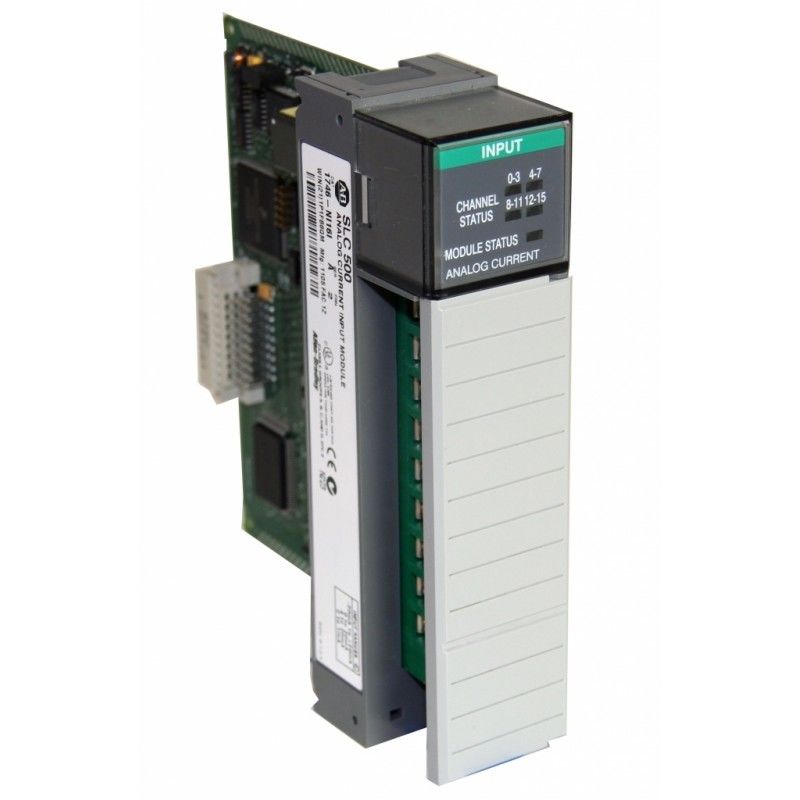

The Allen Bradley 1746-NI16I is an Analog Input Module, with 16-bit resolution and 16 input channels. This module falls into a Voltage Category of -20 to 20 mA. Its backplane current at 5 Volts is 125 mA, while 24 Volts results in 75 mA. Its backplane power consumption is 2.425 Watts maximum (0.625 Watts at 5 Volts DC and 1.8 Watts at 24 Volts DC). The common mode voltage range of this module is +/-10.25 Volts relative to the analog common terminal.

This unit has a relative humidity of 5% to 95% without condensation. Its operating temperature range is -25 to 60 degrees Celsius (-13 to 140 degrees Fahrenheit) while its nonoperating temperature lies between -40 and 85 degrees Celsius (-40 and 185 degrees Fahrenheit). Its Input impedance is 249; its maximum voltage input is ±8 Volts between analog common and any input terminal, and the maximum current input is ±30 mA. The thermal dissipation of this module is 2.43 Watts, and the AIFM Connector of this module is 25-pin D-shell.

When installing modules in the chassis, it is not necessary to remove the terminal blocks from the module. However, if the terminal block is removed, use the label located next to the terminal block to identify the location and type of module.

Analog inputs are used to interface analog process variables to measure its magnitude. It is primarily used to monitor or used as feedback signal for closed loop control systems to implement manual or automatic control with the use of control methods typically Proportional-Integral-Derivative (PID) algorithm. Without this feedback signal, automatic control cannot be fully implemented.

The 16 high-impedance input channels can be wired as single-ended inputs. The module provides a direct interface to the following input types:
• ±10V dc
• 1 to 5V dc
• 0 to 5V dc
• 0 to 10V dc
• 0 to 20 mA
• 4 to 20 mA
• ±20 mA
• 0 to 1 mA

More information:

Manufacturer	Rockwell Automation
Brand	AB
Part Number/Catalog No.	1746-NI16I
Series	SLC 500
Module Type	Analog I/O Module
Backplane Current (5 Volts)	125 milliamps
Inputs	Sixteen (16)
Backplane Current (24 Volts DC)	75 milliamps
Electrical Signal type	0 to 20 mA, 4 to 20 mA, ±20 mA, and 0 to 1 mA
Bandwidth	6-250 Hertz
Chassis location	Any I/O module slot except slot 0

Another module:

IC694MDL230	120 VAC Isolated Input (8 Points)
IC694MDL231	240 VAC Isolated Input (8 Points)
IC694MDL240	120 VAC Input (16 Points)
IC694MDL241	24 VAC/VDC Input (16 Points)
IC694MDL250	120 VAC Isolated Input (16 Points)
IC694MDL260	120 VAC Input (32 Points)**
IC694MDL632	125 VDC Input (8 Points)
IC694MDL634	24 VDC Input, Neg/Pos Logic (8 Points)
IC694MDL645	24 VDC Input, Neg/Pos Logic (16 Points)
IC694MDL646	24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points)
IC694MDL654	5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points)
IC694MDL655	24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points)
IC694MDL660	24 VDC Input (32 Points)**
IC694ACC300	Input Simulator Module (8 Points)

AB 1746-NI16I I/O Module 16 Inputs Configurable For 0 To 20 MA 4 To 20 MA 0

Our brand:

Order Process:

1, First, send us the brand, model code/pic of the nameplate, the quantity for inquiry. Then we will send the quote to you. after confirming the model and the quantity, then we will the PI to you.

2, You can transfer by Paypal/ Western Union/Trade assurance/ T/T. When we received the payment, then we will start to prepare the order for you asap.

3, We can according to your shipment to ship out the goods, Or we also can help you to ship out the goods directly. And the tracking number will send you by the next day.

4., Usually for our inventory goods only need to take about 3-5 days.

5. If you also have any questions, you can ask me any time, right below is my contact.

FAQ

* Q: Do you provide a warranty for the goods?
A: Yes, we provide a warranty for all the goods from us.

* Q: Could Wisdomlong provide technology support?
A: We're in this field for more than 8 years. If there's any problem, please contact with us, we'll provide a suggestion from our
engineer to help you solve the problem.

* Q: Does Wisdomlong keep goods in stock or only trading?
A: We have a large warehouse for goods. Keep lots of goods in the warehouse, so could promise a fast delivery.

* Q: What is your MOQ?
A: We provide you small MOQ for each item, it depends on your specific order!

* Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

* Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Send your Inquiry details in the Below, Scan "The QR Code" Now!
