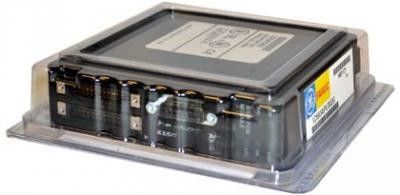

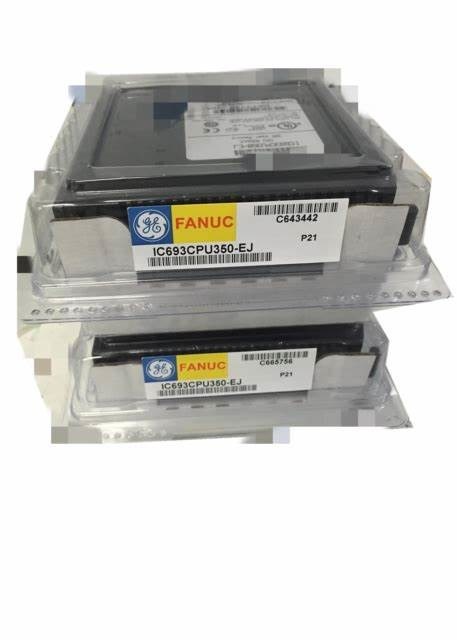

Name: GE IC693CPU350 I/O system speciality module 4K I/O 32Kbytes user memory 0.22msec/K
Brand: Wisdomlong Technology CO.，LTD
SKU: IC693CPU350
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

GE IC693CPU350 I/O system speciality module 4K I/O 32Kbytes user memory 0.22msec/K

Product Details:

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC693CPU350

Payment & Shipping Terms:

Price:	negotiation
Packaging Details:	New in original boxRockwell Automation
Delivery Time:	5-8 work daysRockwell Automation
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Condition:	New	Nominal Output Voltage:	120 / 240 VAC
Product Type:	Input Module	Warranty:	1 Year
Memory Requirement:	12/24 Volts DC	Rated Voltage:	11 Watts
Output Voltage Range:	2 Amps Maximum Per Common	Communication Rate:	Firmware-based In Firmware Releases 9.0 And Later.

GE IC693CPU350 I/O system speciality module 4K I/O 32Kbytes user memory 0.22msec/K

Product information GE IC693CPU350 :

IC693CPU350 can also be adapted to a wide range of applications such as: digital interfaces (for push buttons, switches, proximity sensors, relays, contactors and many other devices), analog modules (with varying degrees of resolution for flow, temperature or pressure applications), direct connect wiring or remote termination and local or remote I/O systems.

It has a built-in Ethernet user-enabled communication which supports both SRTP and Modbus TCP/IP application protocols and provides a real-time link for connected systems. With scalable processing power, users can create a system that is ideal today while leaving open the option of creating more powerful system tomorrow without changing your software. An integrated motion control supports high performance in point-to-point applications.

With a variety of field bus interfaces, the IC693CPU350 enables distributed control and/or I/O. Users can choose from a variety of easy to install and quick to configure field bus interface modules.

It is programmable with Proficy Logic Developer PLC-Machine Edition and supports a wide range of programming languages such as Ladder Diagram (LDI), Instruction List (IL), Structural Text (ST), and C Block. It is a low-cost solution with redundant CPUs and power supplies for high availability solutions.

The IC693CPU350 is a single slot CPU module with one CPU baseplate and 7 expansion and/or remote baseplates. It uses a 80386EX processor type with a speed of 25 MHz, operating with an ambient temperature of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). This CPU also has a typical scan rate of .22 msec/K and maximum user program memory of 32K bytes.

It is equipped with a built-in serial port which supports SNP/SNP-X slave protocols and a LAN port which supports multidrop, Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules. The controller supports shift registers, override, battery backed clock, PCM/CCM compatibility, periodic subroutine interrupts’ feature, floating point Math, and RAM and flash memory storage. It requires 670 milliamps supplied from a +5 VDC power supply.

More information:

CPU Type	Single slot CPU module
Total Baseplates per System	8 (CPU baseplate + 7 expansion and/or remote)
Load Required from Power Supply	670 milliamps from +5 VDC supply
Processor Speed	25 MegaHertz


Processor Type	80386EX
Processor Type	80386EX
Operating Temperature	0 to 60 degrees C (32 to 140 degrees F) ambient
Typical Scan Rate	0.22 milliseconds per 1K of logic (boolean contacts)
User Program Memory (maximum)	32K Bytes (not configurable)
Discrete Input Points - %I	2,048
Discrete Output Points - %Q	2,048
Discrete Global Memory - %G	1,280 bits
Internal Coils - %M	4,096 bits
Output (Temporary) Coils - %T	256 bits
System Status References - %S	128 bits (%S, %SA, %SB, %SC - 32 bits each)
Register Memory - %R	9,999 words
Analog Inputs - %AI	2,048 words
Analog Outputs - %AQ	512 words
System Registers (for reference table viewing only; cannot be referenced in user logic program)	28 words (%SR)
Timers/Counters	>2,000
Shift Registers	Yes
Built-in Serial Port	1 (uses connector on PLC power supply). Supports SNP/SNP-X slave protocols. Requires CMM module for SNP/SNP-X master, CCM, or RTU slave protocol support; PCM module for RTU master support.
Communications	LAN - Supports multidrop. Also supports Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules.
Override	Yes
Battery Backed Clock	Yes
Interrupts	Supports the periodic subroutine feature
Type of Memory Storage	RAM and Flash
PCM/CCM Compatibility	Yes
Floating Point Math Support	Yes. Firmware-based in firmware releases 9.0 and later.

Another module:

IC694MDL230	120 VAC Isolated Input (8 Points)
IC694MDL231	240 VAC Isolated Input (8 Points)
IC694MDL240	120 VAC Input (16 Points)
IC694MDL241	24 VAC/VDC Input (16 Points)
IC694MDL250	120 VAC Isolated Input (16 Points)
IC694MDL260	120 VAC Input (32 Points)**
IC694MDL632	125 VDC Input (8 Points)
IC694MDL634	24 VDC Input, Neg/Pos Logic (8 Points)
IC694MDL645	24 VDC Input, Neg/Pos Logic (16 Points)
IC694MDL646	24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points)
IC694MDL654	5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points)
IC694MDL655	24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points)
IC694MDL660	24 VDC Input (32 Points)**
IC694ACC300	Input Simulator Module (8 Points)
