Name: IC695PNS001 GE Emerson Automation manufactured Profinet scanner module
Brand: Wisdomlong Technology CO.，LTD
SKU: IC695PNS001
Price: 1.00 USD
Availability: InStock

Home Products PLC Programmable Logic Controller

IC695PNS001 GE Emerson Automation manufactured Profinet scanner module

Product Details:

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC695PNS001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negitiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Product Name:	PLC Programmable Logic Controller IC695PNS001	Product:	PLC Programmable Logic Controller
Model:	IC695PNS001	Brand:	GE FANUC
SERIES:	SERIES 90-30	Holdup Time:	10ms
Input:	Points 16	Country Of Origin:	USA

IC695PNS001 GE Emerson Automation manufactured Profinet scanner module

Specifications for PLC Programmable Logic Controller IC695PNS001

Protocol Support PROFINET
LED Indicators OK LED, LAN LED, STATUS LED, CONN LED, ORT LEDs, ACTIVE LED, USB LED
Supported Topologies Linear, Star, Daisy chain, Redundant Media
Ethernet Ports Four (4) Switched Ethernet ports
Storage Temperature -40 to 85 degrees Celsius
Operating Temperature 0 to 60 degrees Celsius
Internal Power at 3.3 V DC 1.2 A
Internal Power at 5 V DC 1.1 A
USB Ports 1 Micro USB
Brand GE Intelligent Platforms/GE Fanuc
Backplane Support Universal
Number of Slots 1 (single slot)
Product Type PROFINET Scanner Module
Catalog IC695
Product Line RX3i
Brand GE Intelligent Platforms/GE Fanuc
Part Number IC695PNS001
Series RX3i PacSystem

OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG-	Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X-	Emerson VE-,KJ-
Honeywell TC-,TK-	GE Modules IC -
ABB Module	AB Module 1756-,1759- Tourch Screen 2711-
Mitsubishi Drive MR- , Motor HA -,HC	Emerson MoudlesVE- ,KJ -
Fanuc motor A0-, Drive	Yokogawa transmitter EJA-
Rosemount Transmitter 3051-	Schneider Module 140-
Panasonic Motor , Drive MH-	Siemens Module 6ES-, Touch Screen 6AV-

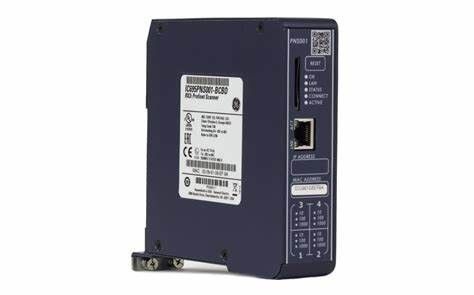

The IC695PNS001 is a Profinet scanner module that is manufactured by GE Fanuc / Emerson Automation. This module is a single slot wide module, that is used to manage Profinet connections such as communicating to remote I/O devices residing in universal I/O backplanes, whether Series 90-30 or RX3i modules; Sending I/O data through the Profinet network to the partner CPUs in the network; Communicate with Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA) and other similar automation components.

The IC695PNS001 features One (1) micro USB port that is mainly used in performing firmware upgrades. It is also equipped with Four (4) Ethernet communication ports that primarily support Profinet protocol. Each of the ports supports modern communication speeds such as 10/100/1000 Mbps communication speed and supports a variety of topologies such a Liner, Daisy-chain, Star, Ring or redundant Ethernet media topology. Additionally, Two (2) of the IC695PNS001’s ethernet port are Two (2) Small Form Factor (SFP) pluggable cages that may be installed with SFP modules for converting network to Fiber Optic media.

The IC695PNS001 is designed with simplified configuration method. I/O device name, IP address and other parameters may be saved in an SD card and transferred to other Profinet Scanner module by inserting the same SD card. This method eliminates dependency with software configuration tool and significantly decreases maintenance time.

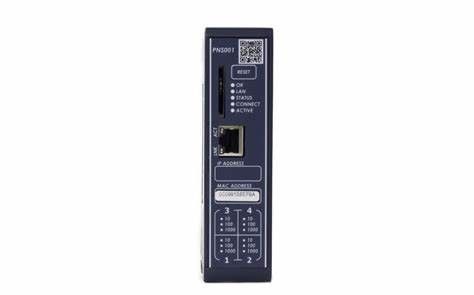

The IC695PNS001 occupies a single slot of the backplane with status LED indicators mounted on the module’s front panel. It has OK LED, LAN LED, STATUS LED, CONN LED, individual PORT LEDs, ACTIVE LED and USB LED. These LED indicators provided comprehensive overview of the module’s operational state.

The IC695PNS001 has an internal power rating of 1.2 Amps at 3.3 Volts DC or 1.1 Amps maximum at a rated voltage of 5 Volts DC. This module supports the Proficy Machine Edition version 8.50 or later versions of the software. The operating temperature range for this module is 0 to 60 degrees Celsius, and it comes with 2 SFP and 2 RJ-45 cages with the SFP devices available separately.

When the network communications are lost, the IC695PNS001 PROFINET scanner module helps to manage the input and output states depending on the specific configurations of a module. This module features 4 switched Ethernet ports, it supports the daisy chain, star, or ring topologies.

Similar Products OF PLC Programmable Logic Controller IC695ALG626

IC3600AVRA1 REFERENCE BOARD
IC3600AVSA1 VOL REL BOARD
IC3600AVSB1 REFER TO ARGO/HOUSTON
IC3600AVSD1 VOL REL BD
IC3600CCCA1 ACCT. RECTIFIER
IC3600DAEA1 IC3600DAEA
IC3600DBMA1 CIRCUIT BOARD ASM
IC3600DCDA1 IC3600DCDA
IC3600DCWA1 CARD-DELAY-&-CROWBAR
IC3600DCWB1 CARD-CROWBAR
IC3600DCWC1 IC3600DCWC
IC3600DEXB1 EXTENSION CARD
IC3600DGRA1 IC3600DGRA
IC3600DIGA1 IC3600DIGA
IC3600DIVA1 CARD-PART OF ICR607D104A
IC3600DJBB1 IC3600DJBB
IC3600DLIG1 DIO INTERFACE IC3600DLIG
IC3600DLIJ1 DLC AIR INTERFACE IC3600DLIJ
IC3600DLIK1 SPEEDTRONIC INTFC IC3600DLIK
IC3600DLIL1 DIO INTERFACE IC3600DLIL
IC3600DLPC1 DATA LINE PULL UP
IC3600DPSA1 CRD-15V-POWER-SUPPLY
IC3600DPSB1 CRD-15V-POWER-SUPPLY
IC3600DRDC8 CARD-RELAY-DRIVER
IC3600DRGA1 SPEEDTRONIC
IC3600DRGB1 CARD-PART OF ICR607D104A
IC3600DSPB1 CARD-PART OF 68B9453211
IC3600EPSA1 REGULATOR IC3600EPSA
IC3600EPSAB1
IC3600EPSB1 100V REGULATOR IC3600EPSB
IC3600EPSC1 INVTR. DR. IC3600EPSC
IC3600EPSD1 28V PS. IC3600EPSD
IC3600EPSE1 INDICATOR
IC3600EPSE2 INDICATOR CARD IC3600EPSE
IC3600EPSH1 POWER SUPPLY BD IC3600EPSH
IC3600EPSK1 MODULE
IC3600EPSM1 CB-75W-PWR-SUPPLY-CO
IC3600EPSN1 12V,28V POWER SUPPLY
IC3600EPSN3 POWER SUPPLY BD
IC3600EPSN4 CRD-15V-POWER-SUPPLY
IC3600EPSS1 50VTO-12V REGULATOR IC3600EPSS
IC3600EPSU1 MODULE
IC3600EPSV1 POWER SUPPLY IC3600EPSV
IC3600EPSW1 REGULATOR BOARD IC3600EPSW

FAQ for IC695PNS001
How many Ethernet ports does the IC695PNS001 have?

The IC695PNS001 has Four (4) Ethernet ports with Two (2) of the ports in the form of SFP port for insertion of user supplied SFP device.

What are the topologies supported by the embedded Ethernet ports?

The IC695PNS001’s Ethernet ports support Linear, Star, Daisy-chain and Ring or redundant media topology.
