Name: GE IC697CMM742 series 90-70 Type 2 15 pins that offer a choice of 10Base5 10Base2
Brand: Wisdomlong Technology CO.，LTD
SKU: IC697CMM742
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

GE IC697CMM742 series 90-70 Type 2 15 pins that offer a choice of 10Base5 10Base2

Product Details:

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC697CMM742

Payment & Shipping Terms:

Price:	negotiation
Packaging Details:	New in original boxRockwell Automation
Delivery Time:	5-8 work daysRockwell Automation
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Condition:	New	Nominal Output Voltage:	240 VAC
Product Type:	Input Module	Warranty:	1 Year
Memory Requirement:	12/24 Volts DC	Rated Voltage:	11 Watts
Output Voltage Range:	4 And 20 MA	Communication Rate:	TCP/IP Communication Via SRTP

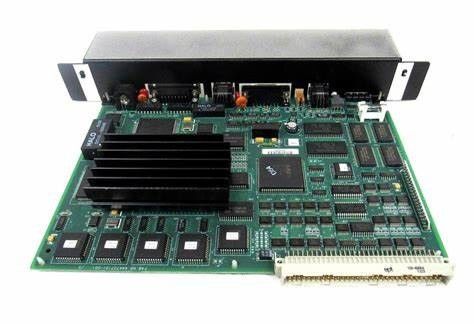

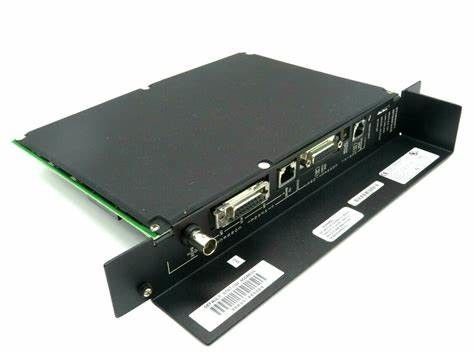

GE IC697CMM742 series 90-70 Type 2 15 pins that offer a choice of 10Base5 10Base2

Product information GE IC697CMM742 :

The IC697CMM742 Ethernet interface (type 2) also includes preloaded firmware for simple installation; additionally, firmware is easy to upgrade and maintained indefinitely. This interface provides data exchange via configuration/logic-based Ethernet global data, TCP/IP communication via SRTP, full PLC programming/configuration, and comprehensive station management/diagnostic tools.

The IC697CMM742 Ethernet interface is equipped with four LEDs: MODULE OK, LAN ONLINE, SERIAL ACTIVE, and STATUS OK. If diagnostics are successful, the MODULE OK LED will emit ON. If diagnostics fail, the LED will remain OFF. Blinking during diagnostics is normal and/or indicates special operation conditions.

The LAN ONLINE LED will emit ON when connected to the network and ready. It will emit OFF if there is a disruption or malfunction. Blinking is normal to indicate transferring data. SERIAL ACTIVE will show OFF during inactivity and will blink during data transfer. STATUS OK is ON indicates normal operation. OFF indicates an event that needs the user’s attention, and again, blinking is normal.

The IC697CMM742 is also equipped with a restart button that has four purposes: LED test, restart, restart and enter software load state and restart and enter maintenance state. Please see the IC697CMM742 manual for additional information.

Series 90 -30 PLCs

GE Intelligent Platforms’ Series 90*-30 PLCs is a family of controllers, I/O systems and specialty modules designed to meet the demand for versatile industrial solutions — helping businesses gain a sustainable advantage. With its single overall control architecture, the Series 90-30 has been the PLC of record in over 200,000 applications such as highspeed packaging, material handling, complex motion control, water treatment, continuous emissions monitoring, mining, food processing, elevator control, injection molding and many more.

GeneralSpecifications:	+5 VDC, +12 VDC (from PLC power supply) 2.0 Amps (+5 VDC), typical 0.5 Amps (+12 VDC), maximum when powering an external AUItransceiver 0o C to +55oC (32oF to 131oF), ambient MODULE OK LANONLINE SERIALACTIVE STATUS – Station Manager (RS-232) Port: 6-pin female RJ-11 – Software Load (RS-485) Port: 15-pin female D-connector – 10BaseT Port: 8-pin female RJ-45 – AUI Port: 15-pin female D-connectorwithslide-lock – 10Base2 port: female BNC connector 5 x 20mm, 250V, 1.0A, slow acting
ModuleOperatingVoltage
ModuleCurrentDrain
ModuleOperatingTemperature
LEDIndicators
Connectors
Fuse, Replaceable
InterfaceSpecifications:	IEEE 802.2 Logical Link Control Class I IEEE 802.3 CSMA / CDMediumAccess Control 10Mbps Station Mgr Port: RS-232 DTE 300 - 19200 bps Software Load Port: RS-485 DTE 300 - 19200 bps 10BaseTPort: Ethernet, IEEE 802.3 CSMA / CD 10Base2 Port: Ethernet, IEEE 802.3 CSMA / CD AUI Port: Ethernet, IEEE 802.3 CSMA / CD (transceiver SQE must be enabled)
LAN
Serial Ports
NetworkPorts

	IC200MDL730	IC200MDL740	IC200MDL741
Product Name	VersaMax Discrete Output Module, 24 VDC Positive Logic 2 .0A per point w/ESCP, 8 points	VersaMax Discrete Output Module, 24 VDC Positive Logic, 0 .5A per point, 16 points	VersaMax Discrete Output Module, 24 VDC Positive Logic, 0 .5A per point w/ESCP, 16 points
Lifecycle Status	Active	Active	Active
Output Voltage	17 .5-30 VDC, 24 VDC nominal	10 .2-30 VDC, 12/24 VDC nominal	18-30 VDC, 24 VDC nominal
Number of Points	8	16	16
Channel to Channel Isolation	No	No	No
Load Current per Point	2 .0 A per point	0 .5 A per point	0 .5 A per point
Input and Output Response Time- On/Off (ms)	0 .5	0 .2/1 .0	0 .5/0 .5
Protection	Short circuit protection, overcurrent protection (each output)	No internal fuses (each output)	Short circuit protection, overcurrent protection, free-wheeling diodes (each output)
Points per Common	1 group of 8	1 group of 16	1 group of 16
External Power Supply	18-30 VDC, 24 VDC nominal	10 .2-30 VDC, 12/24 VDC nominal	18-30 VDC, 24 VDC nominal
Load Current	2 .0 A at 30 VDC maximum (resistive) per point, 8 .0 A max . per module	0 .5 A at 30 VDC maximum (resistive); 2 .0 A inrush maximum for 100 ms	0 .5 A at 30 VDC maximum (resistive); 2 .0 A inrush maximum for 100 ms
5V Backplane Current Consumption (mA)	50 maximum	45 maximum	75 maximum
LED Indicators	One LED per point shows individual point ON/OFF state (logic side) . FLD PWR LED indicates field power is present . OK LED indicates backplane power is present .	One LED per point shows individual point ON/OFF state (logic side) . FLD PWR LED indicates field power is present . OK LED indicates backplane power is present .	One LED per point shows individual point ON/OFF state (logic side) . FLD PWR LED indicates field power is present . OK LED indicates backplane power is present .
Dimensions (W x H x D)	110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors	110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors	110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors

Another module:

IC694MDL230	120 VAC Isolated Input (8 Points)
IC694MDL231	240 VAC Isolated Input (8 Points)
IC694MDL240	120 VAC Input (16 Points)
IC694MDL241	24 VAC/VDC Input (16 Points)
IC694MDL250	120 VAC Isolated Input (16 Points)
IC694MDL260	120 VAC Input (32 Points)**
IC694MDL632	125 VDC Input (8 Points)
IC694MDL634	24 VDC Input, Neg/Pos Logic (8 Points)
IC694MDL645	24 VDC Input, Neg/Pos Logic (16 Points)
IC694MDL646	24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points)
IC694MDL654	5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points)
IC694MDL655	24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points)
IC694MDL660	24 VDC Input (32 Points)**
IC694ACC300	Input Simulator Module (8 Points)

GE IC697CMM742 series 90-70 Type 2 15 pins that offer a choice of 10Base5 10Base2 0
