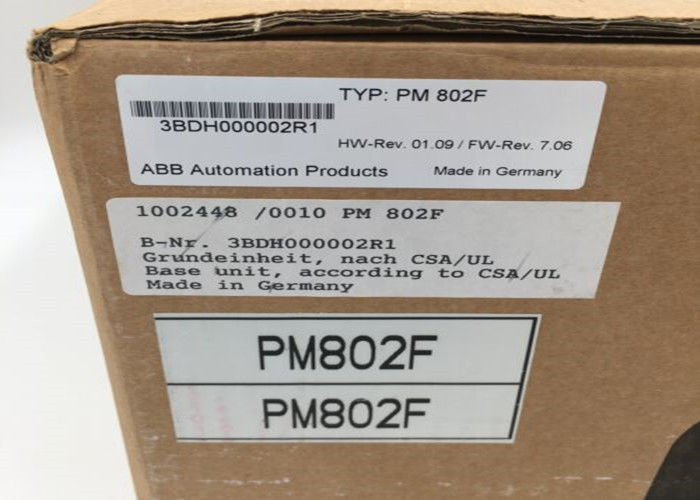

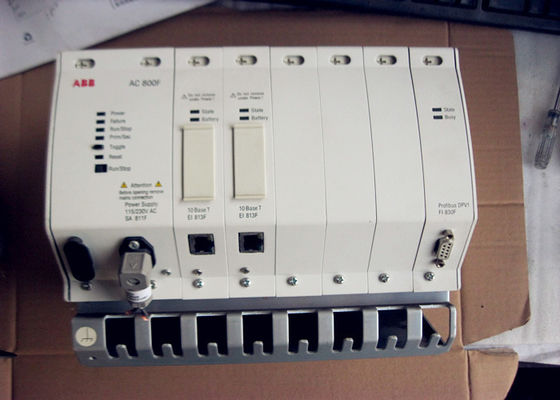

ABB Field Controller PM802F Control Module AC800F PLS SPS 3BDH000002R1 CPU Base Unit
AC800F, the hybrid process control system, combines the best of both worlds, DCS and PLC. It offers PLC size and price with functionality of a DCS.
Item number:
3BDH000002R1 | PM802F | PM 802F | PM 802 F
Item description:
PM 802F
Base Unit 4 MB
battery-buffered RAM
Brand: ABB
MPN: 3BDH000002R1
Models:
3BDH000022R1 EI813F Ethernet module
3BDH000030R1 FI810F CAN module
3BDH000031R1 FI820F Serial module
3BDH000032R1 FI830F Profibus-DPV1 module
3BDH000033R1 FI840F Foundation Fieldbus module
3BDH000530R1 PM803F CPU Module
3BDH000013R1 SA811F Power supply module
3BDH000014R1 SD812F Power supply
3BDM000160R1 TB870F Terminal block
3BDM000103R1 TK811F CAN cable
3BDM000150R1 TK821F serial Cable
3BDM000100R1 TK831F CAN Cable
3BDM000202R1 TK890F Diagnostics cable
3BDM000201R1 TK891F Diagnostics cable
3BDH001001R0001 PM901F Central Processing Unit
3BDH001000R0001 PM902F Central Processing Unit
3BDH001005R0001 CI910F CAN Module
3BDH001010R0002 CI930F Communication Interface
Communications
| Model No. |
Protocol |
Master or slave |
| CI801 |
PROFIBUS DP-V1 |
Slave |
| CI840A |
PROFIBUS DP-V1 |
Slave |
| CI853 |
COMLI and MODBUS RTU |
Master / Slave |
| CI854B |
PROFIBUS DP-V1 |
Master |
| CI855 |
ABB's MasterBus 300 |
Master |
| CI856 |
ABB's S100 I/O |
Master |
| CI857 |
ABB's INSUM |
Master |
| CI858 |
ABB's DriveBus |
Master |
| CI860 |
FOUNDATION Fieldbus HSE |
Master / Slave |
| CI865 |
ABB's Satt I/O |
Master |
| CI867 |
MODBUS TCP |
Master / Slave |
| CI868 |
IEC 61850 |
Master / Slave |
| CI869 |
ABB's Advant Fieldbus 100 |
Slave |
| CI871 |
PROFINET IO |
Master |
| CI873 |
EtherNet IP / DeviceNet |
Master |
| TB820V2 |
ABB's Modulebus |
Slave |
| TB825 (Multi Mode) |
ABB's Modulebus |
Slave |
| TB826 (Single Mode) |
ABB's Modulebus |
Slave |
| TB840A |
ABB's Modulebus |
Slave |
| TB842 |
ABB's Modulebus |
Not Applicable |
| TU807 |
ABB's Modulebus |
Not Applicable |
| TU840 |
ABB's Modulebus |
Not Applicable |
| TU841 |
ABB's Modulebus |
Not Applicable |
| TU846 |
ABB's Modulebus |
Not Applicable |
| TU847 |
ABB's Modulebus |
Not Applicable |
| TU848 |
ABB's Modulebus |
Not Applicable |
| TU849 |
ABB's Modulebus |
Not Applicable |
Features and benefits
- COMLI can be used on the build in COM3 port and optionally on the CI853 ports. RS-232C is the standard communication interface used for serial communication with COMLI. The CI853 supports Hot Swap. COMLI is an ABB protocol for data transmission between controllers.
- MODBUS RTU is an open, serial (RS-232 or RS-485) protocol derived from the Master/Slave architecture exchanging information in half duplex mode. The Modbus functionality can be configured both on the COM ports of AC 800M and CI853.
- Siemens 3964R can be used on the build in COM3 port and optionally on the CI853 ports. A standard RS-232C/485 communication channel is required.
- Self-defined Serial Communication can be used on the built in COM3 port (on an AC 800M Controller) and optionally on the CI853 ports.
- The CI853 module also supports Hot Swap.
