Product information GE IC693APU305 :

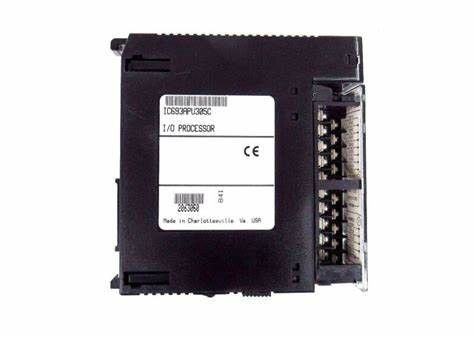

The IC693APU305 module consists of 12 points of positive logic inputs delivering an input voltage of either 5 VDC or 10 to 30 VDC. Moreover, it has 8 positive logic outputs; 4 outputs with a current rating of 1 Amp and 4 configurable outputs with a rating of 0.5 Amps. All outputs are protected from damaged by a replaceable fuse.

A dedicated processor provides 500 µs I/O update. There is a terminal board for connection during field wiring. The module comes with LED indicators that indicate the status of outputs from 1 to 4 and module OK and Configured OK status. The module performs internal module diagnostics and has 32 range comparators (outputs returned in %I and %AI data). There are 4 strobe data registers with 2 indicating input pulse length or input spacing in ms.

Outputs are normally used to drive indicating light, relays, solenoids etc. Power for operation of the module’s circuit registry comes from the 5 VDC bus located on the baseplate backplane. Power sources for the input and output devices should be supplied by the user or the +24 VDC isolated output the 90-series supply. All module’s configuration parameters are downloaded from the PLC to the I/O processor after passing the internal diagnostics test.


Upon successful completion of the configuration process, the CONFIG OK LED will come ON. To make any alterations to the configuration parameters, a Logic master 90-30 programming software or a handheld programmer is used. Operation of the I/O processor is monitored by a watch dog time circuit. If the timer detects a module problem, it’ll force all outputs OFF and turn off the MODULE OK LED.

Series 90 -30 PLCs

GE Intelligent Platforms’ Series 90*-30 PLCs is a family of controllers, I/O systems and specialty modules designed to meet the demand for versatile industrial solutions — helping businesses gain a sustainable advantage. With its single overall control architecture, the Series 90-30 has been the PLC of record in over 200,000 applications such as highspeed packaging, material handling, complex motion control, water treatment, continuous emissions monitoring, mining, food processing, elevator control, injection molding and many more.
