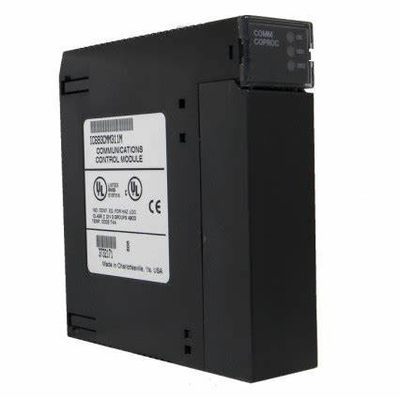

GE IC693CMM301 0-32 devices can be linked on a Genius Bus Series 90-70

Product Details:

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC693CMM301

Payment & Shipping Terms:

Price:	negotiation
Packaging Details:	New in original boxRockwell Automation
Delivery Time:	5-8 work daysRockwell Automation
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Condition:	New	Nominal Output Voltage:	240 VAC
Product Type:	Input Module	Warranty:	1 Year
Memory Requirement:	12/24 Volts DC	Rated Voltage:	11 Watts
Output Voltage Range:	4 And 20 MA	Communication Rate:	2 LEDs On The IC693CMM301 Genius

GE IC693CMM301 0-32 devices can be linked on a Genius Bus Series 90-70

Product information GE IC693CMM301 :

The IC693CMM301 Genius Communications bus uses a noise immune network so as to offer fast data transmission of real-time control data. Series 90-30 PLCs are able to connect with one another via a one Genius I/O serial bus with the aid of standard twisted pair, shielded cable, daisy-chained between devices, and terminated at both ends. It is important to use the proper cable to ensure good performance of the system. Genius communication modules have LED indicators located at the front.

On usual operations, it is switched on to show the operating status of the module. OK indicates the status of the GBC module where the LED switches on when the power checkup is done. COM displays the status of the Genius communications bus. This indicator remains constantly on, indicating the bus is working well. In case of a failed bus, the indicator blinks and eventually goes off showing there are bus errors and no communication from the PLC. Up to eight Enhanced Genius Communications Modules can be used in a Series 90-30 PLC system. The amount of I/O circuits served by a single Genius bus depends on the varied forms of I/O devices being utilized and the amount of memory storage in the CPU.

The GE Fanuc IC693CMM301 Genius Communications Module can exchange a maximum of 32 bytes or 256 bits of data in total. It is easy to connect the IC693CMM301 Genius Communications Module to the backplate of the PLC that hosts it. This module has no jumpers or DIP switches, so it must be configured with a handheld programmer or with the proper system programming software. There are 2 LEDs on the IC693CMM301 Genius Communications Module.

The OK LED means that the module has completed and passed its powerup test and that it is operating properly. The COM LED means that the module has been initialized by a Series 90-30 GE PLC and that the module is receiving bus communications. The COM LED will stay on after a successful startup and throughout operation unless there is a significantly high number errors, which will cause the COM LED to blink.

Technical Information

Ordering Information IC693CMM301,

Module TypeSeries 90-30 PLC module, providing Global Data

communications with up to 7 other PLCs.

LEDsOK, COM

Global Data Length:

per Communications Module Up to 256 bits, configurable in 32–bit increments.

per Series 90–30 PLC Up to maximum available %G memory

Environmental:

Operating Temperature0_C to +60_C

(+32 _F to +140_F)

Storage Temperature –25 _C to +70_C

(–13 _F to +158_F)

Humidity 5% to 95% (non–condensing)

Vibration and Shock0.2 inch displacement 5Hz to 10Hz

1 G 10Hz to 200Hz

5 G 10Ms duration

Another module:

IC694MDL230	120 VAC Isolated Input (8 Points)
IC694MDL231	240 VAC Isolated Input (8 Points)
IC694MDL240	120 VAC Input (16 Points)
IC694MDL241	24 VAC/VDC Input (16 Points)
IC694MDL250	120 VAC Isolated Input (16 Points)
IC694MDL260	120 VAC Input (32 Points)**
IC694MDL632	125 VDC Input (8 Points)
IC694MDL634	24 VDC Input, Neg/Pos Logic (8 Points)
IC694MDL645	24 VDC Input, Neg/Pos Logic (16 Points)
IC694MDL646	24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points)
IC694MDL654	5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points)
IC694MDL655	24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points)
IC694MDL660	24 VDC Input (32 Points)**
IC694ACC300	Input Simulator Module (8 Points)
