Name: GE IC693CPU341 GMC and GCM+ option modules 90-30 Series +5 VDC rated power supply
Brand: Wisdomlong Technology CO.，LTD
SKU: IC693CPU341
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

GE IC693CPU341 GMC and GCM+ option modules 90-30 Series +5 VDC rated power supply

Product Details:

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC693CPU341

Payment & Shipping Terms:

Price:	negotiation
Packaging Details:	New in original boxRockwell Automation
Delivery Time:	5-8 work daysRockwell Automation
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Condition:	New	Nominal Output Voltage:	240 VAC
Product Type:	Input Module	Warranty:	1 Year
Memory Requirement:	12/24 Volts DC	Rated Voltage:	11 Watts
Output Voltage Range:	4 And 20 MA	Communication Rate:	2 LEDs On The IC693CMM301 Genius

GE IC693CPU341 GMC and GCM+ option modules 90-30 Series +5 VDC rated power supply

Product information GE IC693CPU3411 :

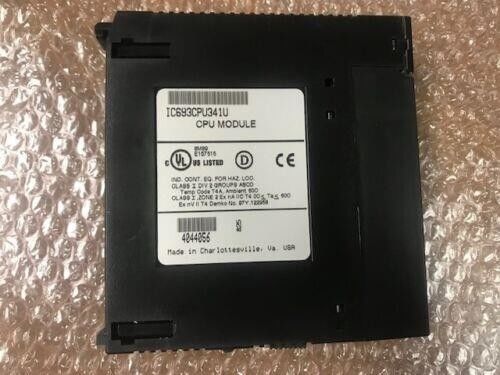

General: The IC693CPU341 module, a member of the GE Fanuc 90-30 Series, is a single slot CPU module which is equipped with 5 baseplates. It contains 4 remote and/or expansion baseplates in addition to the 1 CPU baseplate. It is equipped with an 80C188XL processor.

Power: It runs at 20 MHz and requires a load of 490 milliamps from the +5 VDC rated power supply. The module operates at an ambient temperature range of 0 to 60 degrees Celsius (or 32 to 140 degrees Fahrenheit).

Memory: This CPU’s typical can rate is 0.3 milliseconds per 1K of logic (also known as Boolean contacts). With a maximum user program memory of 80K bytes, the IC693CPU341 has a register memory (%R) of 9999 words; discrete global memory (%G) of 1280 bits, internal coils (%M) of 1024 bits, output (temporary) coils (%T) of 256 bits, and system status references (%S) of 128 bits (with %S, %SA, %SB, %SC having 32 bits each).

I/O: Analog inputs (%AI) and outputs (%AQ) is 1024 and 256 words respectively. The discrete input (%I) and output (%Q) are 512 each. It has 16 words (%SR) system registers which are used for reference table viewing only and cannot be referenced in user logic program.

CPU Type	Single slot CPU module
Total Baseplates per System	5 (1 CPU baseplate + 4 expansion and/or remote)
Load Required from Power Supply	490 milliamps from +5 VDC supply
Processor Speed	20 MegaHertz
Processor Type	80C188XL
Operating Temperature	0 to 60 degrees C (32 to 140 degrees F) ambient
Typical Scan Rate	0.3 milliseconds per 1K of logic (boolean contacts)
User Program Memory (maximum)	80K Bytes
Discrete Input Points - %I Discrete Output Points - %Q	512 512
Discrete Global Memory - %G	1280 bits
Internal Coils - %M	1024 bits
Output (Temporary) Coils - %T	256 bits
System Status References - %S	128 bits (%S, %SA, %SB, %SC - 32 bits each)
Register Memory - %R	9999 words
Analog Inputs - %AI	1024 words
Analog Outputs - %AQ	256 words
System Registers (for reference table viewing only; cannot be referenced in user logic program)	16 words (%SR)
Timers/Counters	>2000
Shift Registers	yes
Built-in Ports	1 (uses connector on PLC power supply). Supports SNP/SNP-X slave protocols. Requires CMM module for SNP/SNP-X master, CCM, or RTU slave support; PCM module for RTU master support.
Communications	LAN - Supports multidrop. Also supports Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules.
Override	yes
Battery Backed Clock	yes
Interrupts	yes
Type of Memory Storage	RAM and optional EPROM or EEPROM for early versions. Starting with hardware version IC693CPU341-J and firmware Release 4.61, only RAM and optional Flash are supported.
PCM/CCM Compatibility	yes

Another module:

IC694MDL230	120 VAC Isolated Input (8 Points)
IC694MDL231	240 VAC Isolated Input (8 Points)
IC694MDL240	120 VAC Input (16 Points)
IC694MDL241	24 VAC/VDC Input (16 Points)
IC694MDL250	120 VAC Isolated Input (16 Points)
IC694MDL260	120 VAC Input (32 Points)**
IC694MDL632	125 VDC Input (8 Points)
IC694MDL634	24 VDC Input, Neg/Pos Logic (8 Points)
IC694MDL645	24 VDC Input, Neg/Pos Logic (16 Points)
IC694MDL646	24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points)
IC694MDL654	5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points)
IC694MDL655	24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points)
IC694MDL660	24 VDC Input (32 Points)**
IC694ACC300	Input Simulator Module (8 Points)
