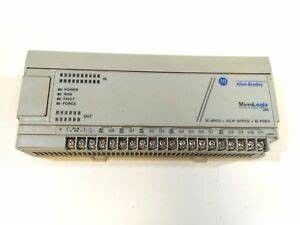

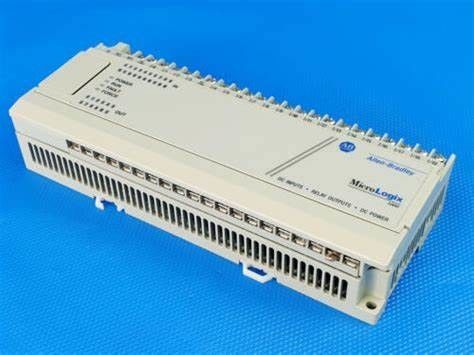

1761-L32BWB AB MicroLogix Controller under the Bulletin 1761 product family

1761-L32BWB AB MicroLogix Controller under the Bulletin 1761 product family

Technical Specifications for 1761-L32BWB
Manufacturer
Brand AB
Part Number/Catalog No. 1761-L32BWB
Input Type Digital
Series MicroLogix 1000
Memory: 1 K EEPROM composed of approximately 737 instruction words and 437 data words.
Communication port: RS232
Safety Feature Master Control Relay
Protocol: DF1
Digital Outputs 12 Contact Outputs
Product Type Programmable Logic Controller (PLC)
Memory Size 1 K EEPROM
No. of Inputs Twenty (20); Sinking / Sourcing
Current Output Rage 4 to 20 mA
Input Voltage Type 14 - 30V dc
Output Type Twelve (12); Relay
Input Voltage Range 14 to 30 Volts DC
Power Supply 20.4-26.4V dc
I/O Count 32 points
UPC 10662468554487
Inrush Current 30A for 4 ms
Product Lifecycle Status* Discontinued/Obsolete
Operating Frequency: 47-63 Hz
Input Power 7W
Minimum Power Cycles 50,000
Operating Shock 10 G
Non-Operating Shock 20 G
Measurements 7.87 x 1.57 x 3.15 inches
