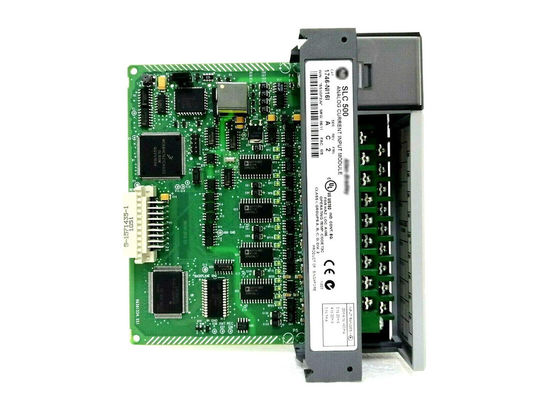

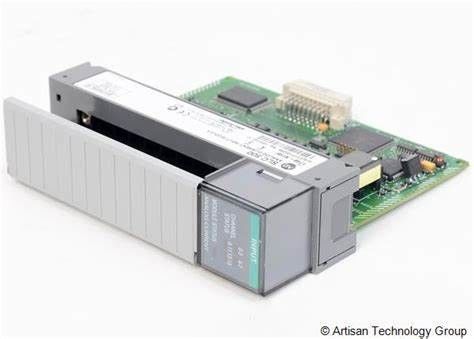

1746-NI16I AB Backplane Current (5 Volts) 125 milliamps SLC 500 Analog I/O Module

1746-NI16I AB Backplane Current (5 Volts) 125 milliamps SLC 500 Analog I/O Module

Technical Specifications for 1746-NI16I
Manufacturer Rockwell Automation
Brand AB
Part Number/Catalog No. 1746-NI16I
Series SLC 500
Module Type Analog I/O Module
Backplane Current (5 Volts) 125 milliamps
Inputs Sixteen (16)
Backplane Current (24 Volts DC) 75 milliamps
Electrical Signal type 0 to 20 mA, 4 to 20 mA, ±20 mA, and 0 to 1 mA
Bandwidth 6-250 Hertz
Chassis location Any I/O module slot except slot 0
Step Response 9-630 milliseconds
Backplane Current (5 Volts) 125 mA;(24 Volts DC)75 mA
Conversion type Sigma - Delta
Thermal Dissipation 2.43 Watts
Input Filtering Low-pass digital filter with programmable filter frequencies
Applications Combination 120 Volts AC I/O
Input Filter Frequencies 6 Hz, 10 Hz, 20 Hz, 40 Hz, 60 Hz, 80 Hz, 100 Hz, 250 Hz
UPC 10611320228196
Isolation 500V ac isolation for 1 second
LED Indicators 5 green status indicators one for each group of 4 channels, and one for module status
Recommended Cable Belden #8761 or equivalent
