Product information GE IC693DSM302 :

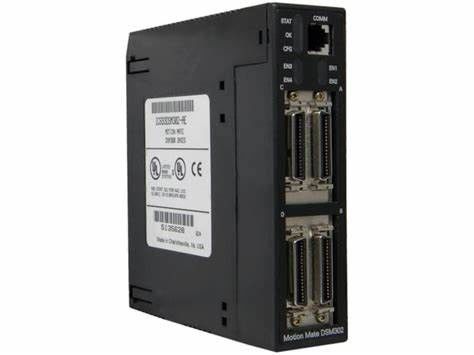

The IC693DSM302 motion controller is a Series 90-30 motion controller produced by GE Fanuc. The unit is compatible with PLC components form the same series and it provides high performance and advanced features in regard to machine control and automation applications. The IC693DSM302 controller has 2 axes and it can resolve issues related to communication and operation between different components within the system.

The IC693DSM302 motion controller is intended for controlling GE digital servo motors and it includes an integrated digital signal processor that is superior to similar controllers offered by other manufacturers. The IC693DSM302 controller also supports the control of both SL Series analog servos and third-party analog servos. Operation with such a controller requires minimal programming and it allows for the use of external programming devices. The additional programming devices are connected through an included RS-232 serial port which is also used for performing firmware updates.



General: The IC693CPU341 module, a member of the GE Fanuc 90-30 Series, is a single slot CPU module which is equipped with 5 baseplates. It contains 4 remote and/or expansion baseplates in addition to the 1 CPU baseplate. It is equipped with an 80C188XL processor.

Power: It runs at 20 MHz and requires a load of 490 milliamps from the +5 VDC rated power supply. The module operates at an ambient temperature range of 0 to 60 degrees Celsius (or 32 to 140 degrees Fahrenheit).

Memory: This CPU’s typical can rate is 0.3 milliseconds per 1K of logic (also known as Boolean contacts). With a maximum user program memory of 80K bytes, the IC693CPU341 has a register memory (%R) of 9999 words; discrete global memory (%G) of 1280 bits, internal coils (%M) of 1024 bits, output (temporary) coils (%T) of 256 bits, and system status references (%S) of 128 bits (with %S, %SA, %SB, %SC having 32 bits each).

I/O: Analog inputs (%AI) and outputs (%AQ) is 1024 and 256 words respectively. The discrete input (%I) and output (%Q) are 512 each. It has 16 words (%SR) system registers which are used for reference table viewing only and cannot be referenced in user logic program.
