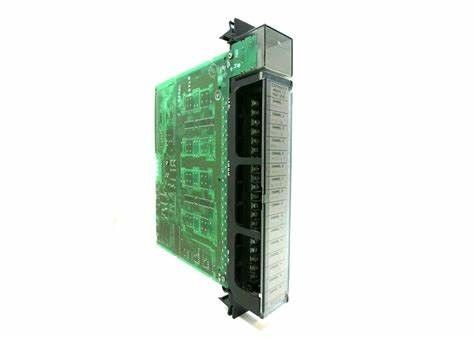

GE IC697ALG440 accepts a maximum of 120 inputs 10 volts on the full scale 16 individually

Product Details:

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC693MDL350

Payment & Shipping Terms:

Price:	negotiation
Packaging Details:	New in original boxRockwell Automation
Delivery Time:	5-8 work daysRockwell Automation
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Condition:	New	Communication:	Two RS-422/RS-485 Or RS-232 Serial Ports
Programming And Configuration:	IC647 Or IC640 Computer, Or IBM-compatible PC	Warranty:	1 Year
Inputs Per Module:	8	On-state Current:	2.2 MA Maximum
Product Type:	Input Module

GE IC697ALG440 accepts a maximum of 120 inputs 10 volts on the full scale 16 individually

Product information GE IC697ALG440 :

The GE Fanuc Series 90-30 Programmable Logic Controller (PLC) module with catalog number IC693ALG223 is a Sixteen (16) channels, single ended, analog input module that is used to interface field devices and instrument that provide analog signals as representation to measurement of process variable. Specifically, each channel of the IC693ALG223 is configurable of receiving 0-20 mA, 4-20 mA and 4-20 mA enhanced signals. Some of the devices that are capable of providing these signals are Transmitters, Variable Frequency Drive’s (VFD) speed feedback, data loggers, panel meters and other devices.

IC697ALG440 is a current expander module, which can be paired with a GE Series 90-30 base converter module. The completed analog subsystem includes the base converter and expander modules. IC697ALG440 has 16 individually configurable differential inputs for current or voltage. The base converter accepts bipolar or unipolar analog inputs of up to 10 volts on the full scale. In addition, the base converter will accept 4 to 20 milliamp current loop signals. IC697ALG440 offers individual user scaling for each of the module’s input channels. The complete subsystem accepts a maximum of 120 inputs. Jumpers and DIP switches are not required, and a fast update rate is normal for the base converter. Configuration is compatible with Windows or MS-DOS software functions.

Catalog Number	Description
IC693MDL310	120 VAC Output, 0.5 Amp (12 Points)
IC693MDL330	120/240 VAC Output, 1 Amp (8 Points)
IC693MDL340	120 VAC Output, 0.5 Amp (16 Points)
IC693MDL350	120 VAC Isolated Output, 2 Amp (16 Points)
IC693MDL390	120/240 VAC Isolated Output, 2 Amp (5 Points)
IC693MDL730	12/24 VDC Output, 2 Amp, Positive Logic (8 Points)
IC693MDL731	12/24 VDC Output, 2 Amp, Negative Logic (8 Points)
IC693MDL732	12/24 VDC Output, 0.5 Amp, Positive Logic (8 Points)
IC693MDL733	12/24 VDC Output, 0.5 Amp, Negative Logic (8 Points)
IC693MDL734	125 VDC Output, (6 Points)
IC693MDL740	12/24 VDC Output, 0.5 Amp, Positive Logic (16 Points)
IC693MDL741	12/24 VDC Output, 0.5 Amp, Negative Logic (16 Points)
IC693MDL742	12/24 VDC Output, 1 Amp, Positive Logic (16 Points), Fused
IC693MDL748	48/24 VDC Output, 0.5 Amps, Positive Logic (8 Points)
IC693MDL752	5/24 VDC (TTL) Output, Negative Logic, (32 Points)
IC693MDL753	12/24 VDC Output, Positive Logic (32 Points)
IC693MDL754	12/24 VDC Output, 0.75 amps, Pos Logic with ESCP protection, (32 Points).

Voltage Input Range:	-10 to +10 volts
Current Input Range:	4 to 20 mA
Calibration:	Factory set at 10 volts +/- 2mV
No of Inputs:	16 current inputs
Module Type:	Analog Input Expander Module
Power:	+ 5 volt

PACSystems RX3i Benefits:
The innovative technology of the PACSystems RX3i enables users to:
• Address major engineering and business issues, such as higher productivity and tighter cost control
• Boost the overall performance of their automation systems
• Reduce engineering and commissioning costs
• Easily integrate new technology into installed base systems
• Significantly decrease concerns regarding short- and long-term migration and plat-form longevity

IC695PSA140	Multipurpose Power Supply, 120/240 VAC, 125 VDC 40 Watts
IC695PSA040	Power Supply, 120/240 VAC, 125 VDC, 40 Watts (requires 2 slots)
IC695PSD140	Multipurpose Power Supply, 24 VDC, 40 Watts
IC695PSD040	Power Supply, 24 VDC, 40 Watts (requires 1 slot)

Remote Base Power Supplies

IC693PWR332	Power Supply, 12 VDC, Standard, 30 Watts (Use with Expansion Base)
IC693PWR328	Power Supply, 48 VDC, Standard, 30 Watts (Use with Expansion Base)

GE IC697ALG440 accepts a maximum of 120 inputs 10 volts on the full scale 16 individually 0
