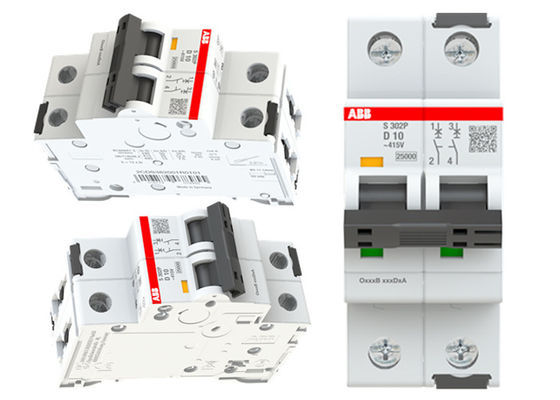

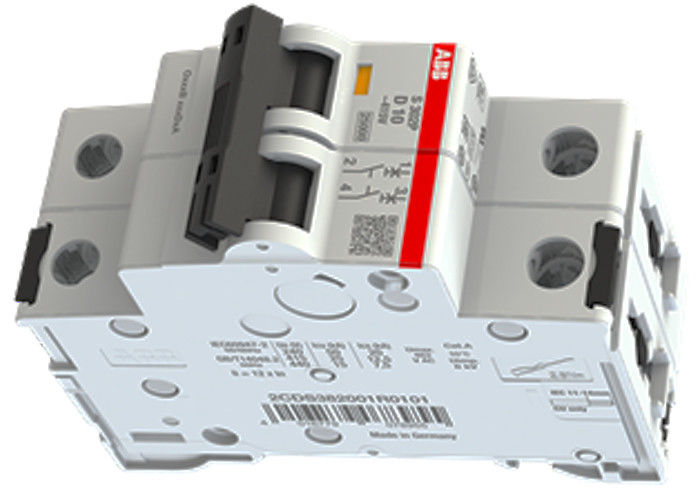

S302P-D10 2CDS382001R0101 Modular DIN Rail Miniature Circuit Breakers MCBs

  S302P-D10 2CDS382001R0101 Modular DIN Rail Miniature Circuit Breakers MCBs

    The MCBs S300P series assures protection in industrial installations against overload and short circuits.

Product Information Of : S302P-D10 2CDS382001R0101

General info :

Article number : 2CDS382001R0101

Catalog Description : S302P-D10 Miniature Circuit Breaker - 2P - D - 10 A

Type Designation : S302P-D10

Invoice Description :  S302P-D10 / 2CDS382001R0101 Circuit Breaker

Minimum Order Quantity : 1 piece

Technical :

Tripping Characteristic : D

Rated Impulse Withstand Voltage (Uimp) : 6 kV

Dielectric Test Voltage : 50/60 Hz, 1 min: 2 kV

Input Voltage Type : AC/DC

Rated Current (In) : 10 A

Rated Short-Circuit Capacity : (AC) 25 kA

                                                (400 V) 25 kA

Rated Frequency (f) : 50 ... 60 Hz

Number of Poles : 2

Overvoltage Category : IV

Tightening Torque : 2.8 N·m

Actuator Marking : I / O

Categories :

Products » Low Voltage Products and Systems » Modular DIN Rail Products » Miniature Circuit Breakers MCBs » Miniature Circuit Breakers MCBs
