GE IC697BEM711 0.8 Amps And The Module Also Requires 5 Volts DC Input Voltage

Product Details:

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC697BEM711

Payment & Shipping Terms:

Price:	negotiation
Packaging Details:	New in original boxRockwell Automation
Delivery Time:	5-8 work daysRockwell Automation
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Condition:	New	Communication:	Two RS-422/RS-485 Or RS-232 Serial Ports
Programming And Configuration:	Have Enough Stock For Your Order	Warranty:	1 Year
Inputs Per Module:	8	On-state Current:	2.2 MA Maximum
Product Type:	Input Module

GE IC697BEM711 0.8 Amps and the module also requires 5 Volts DC input voltage

Product information GE IC693PBM200 :

The GE Fanuc Series 90-30 Programmable Logic Controller (PLC) module with catalog number IC693ALG223 is a Sixteen (16) channels, single ended, analog input module that is used to interface field devices and instrument that provide analog signals as representation to measurement of process variable.

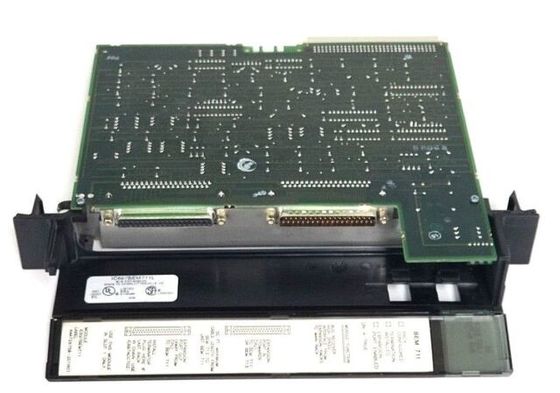

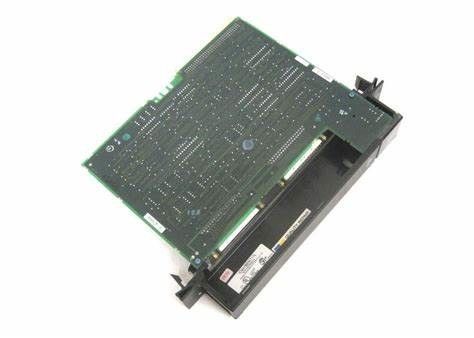

The IC697BEM711 module is a bus receiver module. Features of the IC697BEM711 module include a high-speed parallel bus expansion interface, support for 7 expansion racks, system fault isolation, easy software configuration, and support for holding the machine's last state. Three LED indicators on the module provide the status of the module as well as the bus expansion port status and expansion status. By using the IC697BEM711 module, expansion to up to a maximum of 7 additional IC697 PLC racks can be achieved by using a total of 15 meters of cable.

The IC697BEM711 module takes up one slot in the PLC chassis. Two connectors are provided on the module's front panel: one connector is used to connect with the upstream or CPU rack and the other connector is used to connect to additional expansion racks through a daisy chain arrangement.

CPUs

IC695CPU320	1 GHz CPU, 64 Mbytes of memory, two serial ports
IC695CPU310	300 MHz CPU, 10 Mbytes of memory, two serial ports (requires 2 slots)
IC695CRU320	Redundant High Availability bumpless 1 GHz CPU,
IC695CMU310	Redundant Hot Standby 300 MHz CPU, 10 Mbytes of memory,two serial ports

Catalog Number	Description
IC693MDL310	120 VAC Output, 0.5 Amp (12 Points)
IC693MDL330	120/240 VAC Output, 1 Amp (8 Points)
IC693MDL340	120 VAC Output, 0.5 Amp (16 Points)
IC693MDL350	120 VAC Isolated Output, 2 Amp (16 Points)
IC693MDL390	120/240 VAC Isolated Output, 2 Amp (5 Points)
IC693MDL730	12/24 VDC Output, 2 Amp, Positive Logic (8 Points)
IC693MDL731	12/24 VDC Output, 2 Amp, Negative Logic (8 Points)
IC693MDL732	12/24 VDC Output, 0.5 Amp, Positive Logic (8 Points)
IC693MDL733	12/24 VDC Output, 0.5 Amp, Negative Logic (8 Points)
IC693MDL734	125 VDC Output, (6 Points)
IC693MDL740	12/24 VDC Output, 0.5 Amp, Positive Logic (16 Points)
IC693MDL741	12/24 VDC Output, 0.5 Amp, Negative Logic (16 Points)
IC693MDL742	12/24 VDC Output, 1 Amp, Positive Logic (16 Points), Fused
IC693MDL748	48/24 VDC Output, 0.5 Amps, Positive Logic (8 Points)
IC693MDL752	5/24 VDC (TTL) Output, Negative Logic, (32 Points)
IC693MDL753	12/24 VDC Output, Positive Logic (32 Points)
IC693MDL754	12/24 VDC Output, 0.75 amps, Pos Logic with ESCP protection, (32 Points).

Catalog Number	IC693PBM200
Description	Series 90-30 Master module for PROFIBUS DP networks
Configuration Software Requirement	Proficy™ Machine Edition Logic Developer version 2.6 or later
CPU Version Requirement	CPU firmware version 8.00 or later
Mounting Location	Any Series 90-30 baseplate (CPU, expansion, or remote) slot except slot 1 of a modular CPU baseplate
Environment	Storage temperature = -40ï‚°C to 85ï‚°C Operating temperature = 0ï‚°C to 60ï‚°C
Backplane Current Consumption	450mA @ 5VDC (typical)
Data rates	Supports all standard data rates (9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M and 12M Baud)
Status Information Available	Slave Status Bit Array Slave Diagnostics/Firmware ID array Network diagnostic counters DP master diagnostic counters Firmware module revision Slave Diagnostic Address

PACSystems RX3i Features:
• High-speed processor and patented technology for faster throughput without information bottlenecks
• Dual backplane bus support per module slot:
- High-speed, PCI-based for fast through put of new advanced I/O
- Serial backplane for easy migration of existing Series 90-30 I/O
• Multiple CPU offerings meeting various performance criteria up to and includ-ing an Intel ® 1 GHz CPU for advanced programming and performance with 64 Mbytes memory
• Memory for ladder logic documentation and machine documentation (Word, Excel, PDF, CAD and other files) in the controller to reduce downtime and improve troubleshooting

Module Type:	Bus Receiver
Eff. Data Rate:	500 Kbytes/sec
Allowed Distance of Cable:	50 feet
Discrete Points Available:	N/A
Serial Ports:	2
Current Required:	0.8 Amps

IC695PSA140	Multipurpose Power Supply, 120/240 VAC, 125 VDC 40 Watts
IC695PSA040	Power Supply, 120/240 VAC, 125 VDC, 40 Watts (requires 2 slots)
IC695PSD140	Multipurpose Power Supply, 24 VDC, 40 Watts
IC695PSD040	Power Supply, 24 VDC, 40 Watts (requires 1 slot)

Remote Base Power Supplies

IC693PWR332	Power Supply, 12 VDC, Standard, 30 Watts (Use with Expansion Base)
IC693PWR328	Power Supply, 48 VDC, Standard, 30 Watts (Use with Expansion Base)
