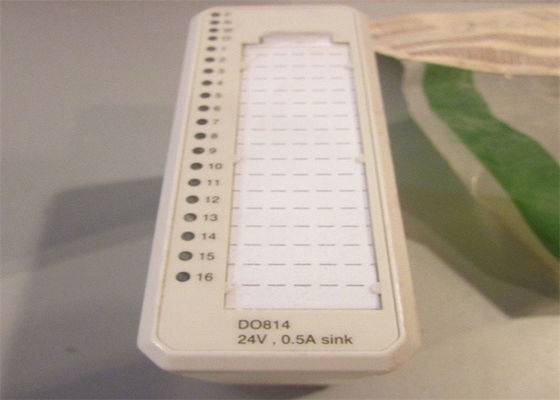

Name: New ABB DO814 24V CMPNT AC800 I/O Digital Output 3BUR001455R1 W/ Lead for CDP.
Brand: Wisdomlong Technology CO.，LTD
SKU: DO814
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

New ABB DO814 24V CMPNT AC800 I/O Digital Output 3BUR001455R1 W/ Lead for CDP.

Product Details:

Place of Origin:	China
Brand Name:	ABB
Certification:	CE
Model Number:	DO814

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us

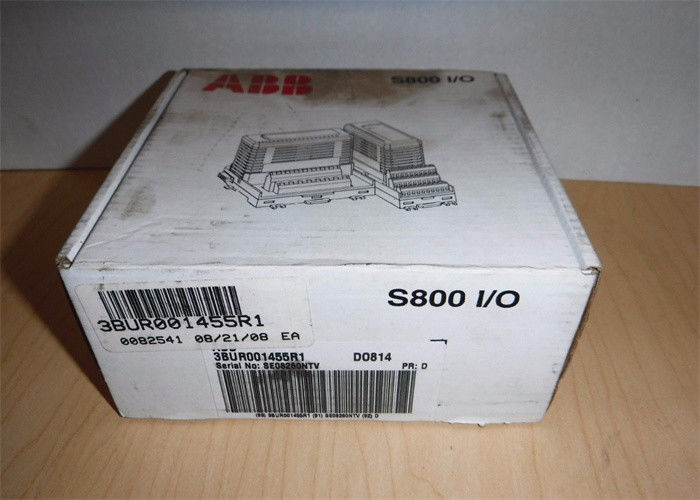

Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	DO814	Brand:	ABB
Redundancy:	No	Product Name:	Output Module
Signal Specification:	24 V D.c. (12-32 V D.c.), 0.5 A	Type:	Analog Output

New ABB DO814 24V CMPNT AC800 I/O Digital Output 3BUR001455R1 W/ Lead for CDP.

Description of DO814

The DO814 is a 16 channel 24 V digital output module with current sinking for the S800 I/O. The output voltage range is 10 to 30 volt and the maximum continuous current sinking is 0.5 A. The outputs are protected against short circuits and over temperature. The outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group. Each output channel consists of a short circuit and over temperature protected low side switch, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears.The error signal can be read via the ModuleBus.

General Information

Type	Digital Output
Signal specification	24 V d.c. (12-32 V d.c.), 0.5 A
Article number	3BUR001455R1
Number of channels	16
Signal type	Current sinking, current limiting
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed data

Isolation	Groupwise isolated from ground
Current limiting	Short circuit proof current limited output
Maximum field cable length	600 meters (656 yards)
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	Typ. 2.1 W
Current consumption +5 V Modulebus	80 mA

Diagnostics

Front LED’s	F(ault), R(un), W(arning), O(SP), Channel 1-16 Status
Supervision	Process voltage, 1 per group
Status indication of supervision	Module Error, Module Warning, Channel error

I/O Modules

AI801	AI810	AI815	AI820	AI825
AI830A	AI835A	AI843	AI845	AI880A
AI890	AI893	AI895	AO801	AO810V2
AO815	AO820	AO845A	AO890	AO895
DI801	DI802	DI803	DI810	DI811
DI814	DI818	DI820	DI821	DI825
DI828	DI830	DI831	DI840	DI880
DI890	DO801	DO802	DO810	DO814
DO815	DO818	DO820	DO821	DO828
DO840	DO880	DO890	DP820	DP840

Features and benefits

16 channels for 24 V d.c. current sinking outputs
2 isolated groups of 8 channels with process voltage supervision
Output status indicators
OSP sets outputs to predetermined state upon error detection
Short-circuit protection to ground and 30 V
Over-voltage and over-temperature protection

Compability

Use with MTU	TU810, TU812, TU814, TU830, TU833 or TU838
Keying code	BE

Environment and certification

CE mark	Yes
Electrical safety	IEC 61131-2, UL 508
Hazardous Location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification	ABS, BV, DNV-GL, LR, RS, CCS
Protection rating	IP20 according to IEC 60529
Corrosive atmosphere ISA-S71.04	G3
Climatic operating conditions	0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree	Degree 2, IEC 60664-1
Mechanical operating conditions	IEC/EN 61131-2
EMC	EN 61000-6-4, EN 61000-6-2
Overvoltage categories	IEC/EN 60664-1, EN 50178
Equipment class	Class I according to IEC 61140; (earth protected)
Max ambient temperature	55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU

Dimensions

Height	119 mm (4.7”)
Width	45 mm (1.77”)
Depth	102 mm (4.01”), 111 mm (4.37”) including connector
Weight	0.18 kg (0.4 lbs.)
