AF26Z-30-00-21 1SBL236001R2100 Block Contactors 3 Pole 690V 50/60HZ

  AF26Z-30-00-21 1SBL236001R2100 Block Contactors 3 Pole 690V 50/60HZ

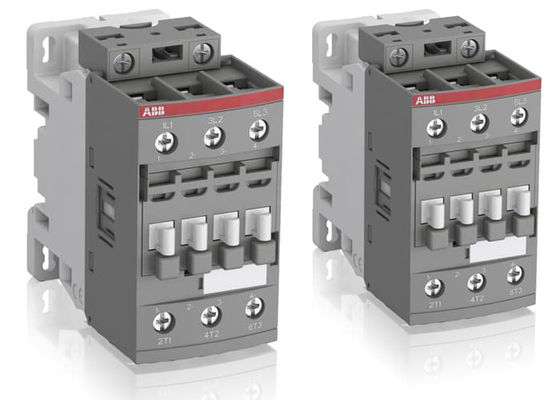

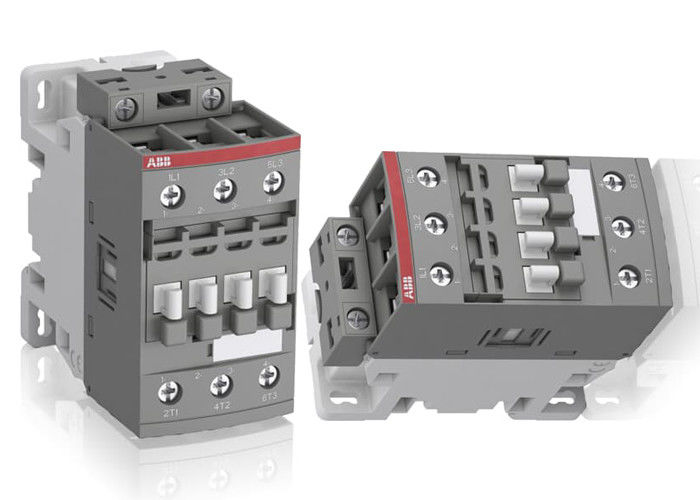

    The AF26Z-30-00-21 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL and switching power circuits up to 45 A (AC-1) or 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Product Information Of : AF26Z-30-00-21 1SBL236001R2100

General info :

Article number : 1SBL236001R2100

Catalog Description : RF3D-146-180 K506 DSF-2326; FAN, CENTRIFUGAL

Invoice Description : AF26Z-30-00-21 Contactors

Minimum Order Quantity : 1 piece

Technical :

Number of Main Contacts NO : 3

Number of Main Contacts NC : 0

Number of Auxiliary Contacts NO : 0

Number of Auxiliary Contacts NC : 0

Rated Operational Voltage : Main Circuit 690 V

Rated Frequency (f) : Control Circuit 50 / 60 Hz

                                   Main Circuit 50 / 60 Hz

Rated Impulse Withstand Voltage (Uimp) : 6 kV

Rated Control Circuit Voltage (Uc) : 50 Hz 24 ... 60 V

                                                         60 Hz 24 ... 60 V

                                                         DC Operation 20 ... 60 V

Terminal Type : Screw Terminals

Categories :

Products » Low Voltage Products and Systems » Control Products » Contactors » Block Contactors
