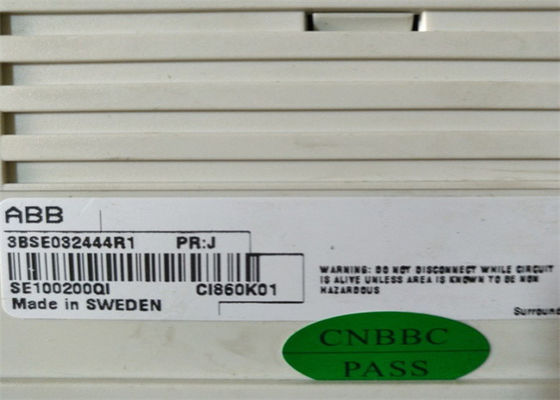

ABB AC800M CI860 Power Supply I/O Module 3BSE032444R1 CI860K01 FOUNDATION Fieldbus USED

Product Details:

Brand Name:	ABB
Certification:	CE
Model Number:	CI860K01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	CI860K01	Product Name:	I/O Module
Article Number:	3BSE032444R1	Transmission Speed:	10/100 Mbit/s
Protocol:	FOUNDATION Fieldbus HSE	Max Units On CEX Bus:	12

ABB AC800M CI860 Power Supply I/O Module 3BSE032444R1 CI860K01 FOUNDATION Fieldbus USED

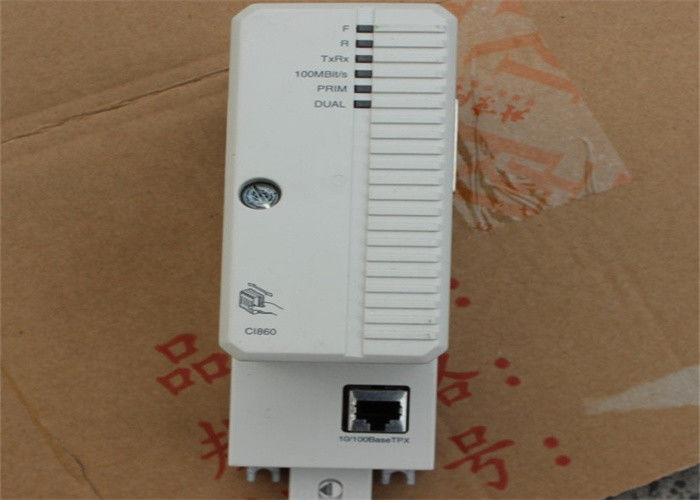

Description of CI860K01

If there is a need to have access to FF process variables in the AC 800M controller, connectivity between the HSE subnet and the controller is established with the CI860 - the Communication Interface FOUNDATION Fieldbus HSE.

Then FOUNDATION Fieldbus process data on HSE can be accessed from the IEC 61131 applications in the AC 800M controllers. For this purpose, the CI860 module maps the value and status parts of the FF signals to the IEC 61131 application and vice versa.

The CI860 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source.

Communications

Model No.	Protocol	Master or slave
CI801	PROFIBUS DP-V1	Slave
CI840A	PROFIBUS DP-V1	Slave
CI853	COMLI and MODBUS RTU	Master / Slave
CI854B	PROFIBUS DP-V1	Master
CI855	ABB's MasterBus 300	Master
CI856	ABB's S100 I/O	Master
CI857	ABB's INSUM	Master
CI858	ABB's DriveBus	Master
CI860	FOUNDATION Fieldbus HSE	Master / Slave
CI865	ABB's Satt I/O	Master
CI867	MODBUS TCP	Master / Slave
CI868	IEC 61850	Master / Slave
CI869	ABB's Advant Fieldbus 100	Slave
CI871	PROFINET IO	Master
CI873	EtherNet IP / DeviceNet	Master
TB820V2	ABB's Modulebus	Slave
TB825 (Multi Mode)	ABB's Modulebus	Slave
TB826 (Single Mode)	ABB's Modulebus	Slave
TB840A	ABB's Modulebus	Slave
TB842	ABB's Modulebus	Not Applicable
TU807	ABB's Modulebus	Not Applicable
TU840	ABB's Modulebus	Not Applicable
TU841	ABB's Modulebus	Not Applicable
TU846	ABB's Modulebus	Not Applicable
TU847	ABB's Modulebus	Not Applicable
TU848	ABB's Modulebus	Not Applicable
TU849	ABB's Modulebus	Not Applicable

General Information

Protocol	FOUNDATION Fieldbus HSE
Article number	3BSE032444R1
Master or slave	Master / Slave
Transmission speed	10/100 Mbit/s
Line redundancy	No
Module redundancy	Yes
Hot Swap	Yes
Used together with HI Controller	No

Detailed data

Max units on CEX bus	12
Connector	RJ-45 female (8-pin)
24 V consumption typ.	typ 100 mA

Environmental and certification

Temperature, Operating	55 °C
Protection class	IP20 according to EN60529, IEC 529
CE- marking	Yes
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU

Features and benefits

The CI860 can be used in redundant mode
Up to twelve CI860 modules can be placed at one AC800 M also in redundant mode, and each of them can be connected to the same or to a separate FOUNDATION Fieldbus HSE subnet.
The ABB FOUNDATION Fieldbus Linking Device LD800HSE/LD 800HSE EX acts as a gateway between the HSE subnet and up to four separate H1 links.

Dimensions

Height	185 mm (7.3 in.)
Width	59 mm (2.3 in.)
Depth	127.5 mm (5.0 in.)
Weight (including base)	700 g (1.5 lbs)
