Name: AI820 3BSE008544R1 Analog Input Module with 4 Channels and External Transmitter Supply
Brand: Wisdomlong Technology CO.，LTD
SKU: AI820 3BSE008544R1
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

AI820 3BSE008544R1 Analog Input Module with 4 Channels and External Transmitter Supply

Product Details:

Place of Origin:	Estonia
Brand Name:	ABB
Certification:	CE
Model Number:	AI820 3BSE008544R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Model:	AI820 3BSE008544R1	Brand:	ABB
Country Of Origin:	Estonia	Resolution:	14 Bit Plus Sign
Product Net Weight:	0.2kg	Product Type:	I-O_Module
Use With MTU:	TU810, TU812, TU814, TU830, TU833

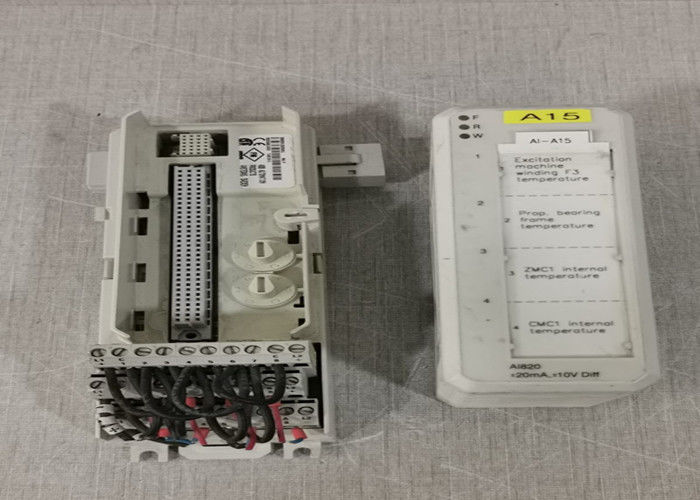

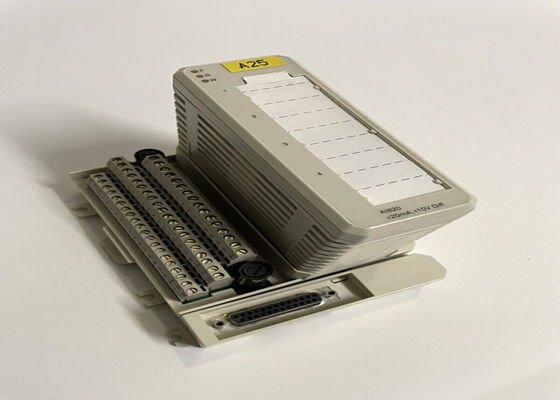

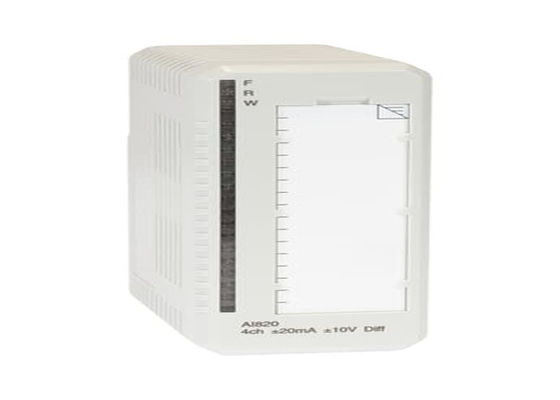

ABB AI820 3BSE008544R1 AI820 Analog Input 4 ch

The AI820 Analog Input Module has 4 differential, bipolar current/voltage inputs. Each channel can be either a voltage or current input. The current inputs can withstand an accidental maximum normal mode 30 V d.c. connection. To protect the current input circuit against dangerous input levels, that is, by accidentally connecting a 24 V source, the resistor rating of the 250W current sense resistors is about 5 Watts. This is intended only to temporarily protect one channel at a time.

The module distributes the external transmitter supply to each channel. This adds a simple connection (with extended MTUs) to distribute the supply to external 2 wire transmitters. There is no current limiting on the transmitter power terminals.

All 4 channels are isolated from the ModuleBus in one group. Power to the input stages is converted from the 24 V on the ModuleBus.

Features and benefits

4 channels for -20...+20 mA, 0...20 mA, 4...20 mA, -10...+10 V, 0...10 V, 2...10 V, -5...+5 V, 0...5 V, 1...5 V d.c. bipolar differential inputs
One group of 4 channels isolated from ground
14 Bit resolution plus sign
Input shunt resistors protected to 30 V d.c.
The input withstand HART communication

General info

Article number	3BSE008544R1
Type	Analog Input
Signal specification	-20..+20 mA, 0(4)..20 mA, -10..+10 V, 0(2)..10 V
Number of channels	4
Signal type	Bipolar differential
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed data

Resolution	14 bit plus sign
Input impedance	200 kΩ ± 25% (voltage mode, common mode) 800 kΩ ± 25% (voltage mode, normal mode) 250 Ω (current input)
Isolation	Groupwise isolated from ground (RIV=50 V)
Under/over range	± 15%
Error	Max. 0.1%
Temperature drift	Voltage: Max. 70 ppm/°C Current: Max. 50 ppm/°C
Input filter (rise time 0-90%)	40 ms
Current limiting	Transmitter power can be current limited by the MTU
Maximum field cable length	600 meters (656 yards)
Dielectric test voltage	500 V a.c.
Power dissipation	1.7 W
Current consumption +5 V Modulebus	80 mA
Current consumption +24 V Modulebus	0
Current consumption +24 V external	70 mA

Diagnostics
