ABB AI825 3BSE036456R1 Analog Input Module with Galvanic Isolation and 14 Bit Resolution

Product Details:

Place of Origin:	Sweden
Brand Name:	ABB
Certification:	CE
Model Number:	AI825 3BSE036456R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

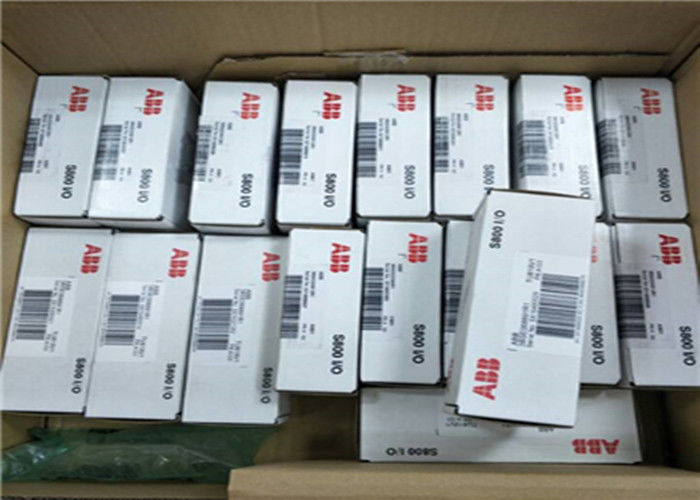

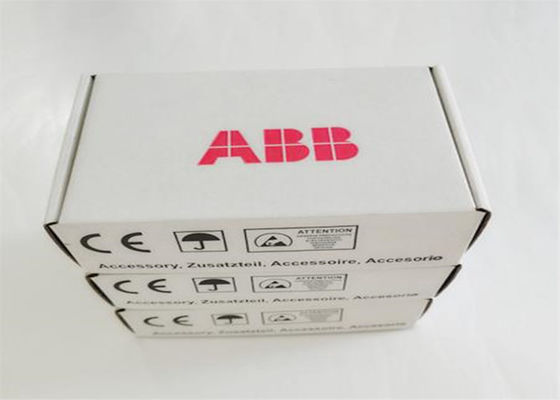

Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Model:	AI825 3BSE036456R1	Brand:	ABB
Country Of Origin:	Sweden	Product Net Weight:	0.3kg
Product Type:	I-O_Module	Type:	Analog Input
Signal Type:	Bipolar Differential

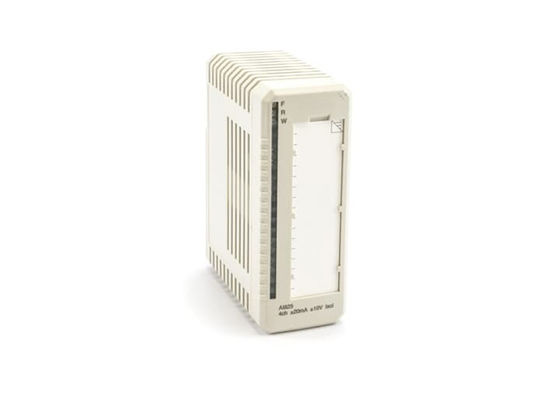

ABB AI825 3BSE036456R1 Analog Input Module

The AI825 Analog Input Module has 4 individually galvanic isolated, bipolar current/voltage inputs. Each channel can be either a voltage or currentinput.

The module has a direct currentinputthatwithstand up to 6.3 V and a overvoltage protected currentinputthatwithstand up to +30 V d.c. The currentis limited by a PTC resistor.

Power to the input stages is converted fromthe 24 V on the ModuleBus

Features and benefits

4 channels individually galvanicisolated inputs for +20 mA, 0...20 mA, 4...20 mA, +10 V, 0...10 V, 2...10 V
14 Bitresolution plus sign
Input shuntresistors protected to 30 V d.c.
The inputwithstands HARTcommunication

General info

Article number	3BSE036456R1
Type	Analog Input
Signal specification	-20..+20 mA, 0(4)..20 mA, -10..+10 V, 0(2)..10 V
Number of channels	4
Signal type	Bipolar differential
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed data

Resolution	14 bit plus sign
Input impedance	10MΩ(voltage input) 50Ω(current input)
Isolation	Individuallyisolated,channel-to-channel and to circuitcommon
Under/over range	± 15%
Error	Max. 0.1%
Temperature drift	Max. 47 ppm/°C (0..10V), Max. 34ppm/°C (±10V), Max. 78 ppm/°C (0..20mA), Max. 57 ppm/°C (±20mA)
Input filter (rise time 0-90%)	115 ms (voltage input),130ms (current input)
Update cycle time	< 10ms
Maximum field cable length	600meters (656 yards)
Dielectric test voltage	1900 V d.c.ch-ch, 3250 V d.c.ch-ground/system,
Power dissipation	Typ. 2.5 W, Max. 3.2 W
Current consumption +5 V Modulebus	Typ. 70mA, Max.100mA
Current consumption +24 V Modulebus	Typ. 90mA, Max.110mA
Current consumption +24 V external	0

Diagnostics

ABB AI825 3BSE036456R1 Analog Input Module with Galvanic Isolation and 14 Bit Resolution 0

Our brand:

【Honeywell】 Module DCS/PLC/Transmitter
【Emerson/Delta V】 Module/ CT Motor & Drives
【ABB】 I/O Module
【AB】 Module&Touch Screen
【Rosemount】 Transmitter
【Yokogawa】 Transmitter
【Yaskawa】 Servo Drive&Servo Motor
【GE/Fanuc】 IC69 Series PLC
【Mitsubishi】 Servo Drive&Servo Motor

(Modicon,SMC,SICK,NORGREN,Siemens,Ebmpapst etc.)

Order Process:

1, First, send us the brand, model code/pic of the nameplate, the quantity for inquiry. Then we will send the quote to you. after confirming the model and the quantity, then we will the PI to you.

2, You can transfer by Paypal/ Western Union/Trade assurance/ T/T. When we received the payment, then we will start to prepare the order for you asap.

3, We can according to your shipment to ship out the goods, Or we also can help you to ship out the goods directly. And the tracking number will send you by the next day.

4., Usually for our inventory goods only need to take about 3-5 days.

5. If you also have any questions, you can ask me any time, right below is my contact.

FAQ

* Q: Do you provide a warranty for the goods?
A: Yes, we provide a warranty for all the goods from us.

* Q: Could Wisdomlong provide technology support?
A: We're in this field for more than 8 years. If there's any problem, please contact with us, we'll provide a suggestion from our
engineer to help you solve the problem.

* Q: Does Wisdomlong keep goods in stock or only trading?
A: We have a large warehouse for goods. Keep lots of goods in the warehouse, so could promise a fast delivery.

* Q: What is your MOQ?
A: We provide you small MOQ for each item, it depends on your specific order!

* Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

* Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Send your Inquiry details in the Below, Scan "The QR Code" Now!

Tag:

Contact Person: Ms. Florence Zhang

Tel: 86-18318060200

Fax: Zhang hefei

Best Products

Product Name: Digital I O Module CC-IP0101 51410056-175

Product: Digital I O Module Module

Model: CC-IP0101 51410056-175

Brand: Honeywell

Honeywell 31.2VDC Digital Input Output Experion TC-ODD321 Dc Output Module

Product Name: Digital I O Module TC-ODD321

Product: Digital I O Module

Model: TC-ODD321

Brand: Honeywell

ABB SPDSI22 Bailey Digital I O Module 16CH Universal 32 Jumpers 120VAC

Brand: ABB

Model: SPDSI22

Product ID: SPDSI22

Medium Description: 24, 48, 125 VDC, 120 VAC

TAS01 Bailey Infi 90 Turbine Autosync Module PLC Ethernet Digital Input Module

Brand: ABB

Model: TAS01

Product ID: TAS01

Medium Description: Turbine Generator Auto Synchronization Module for Hamrony Rack

ABB SPFEC12 Digital I O Module Module 15CH 4 To 20mA 1 To 5V Analog Input

Brand: ABB

Model: SPFEC12

Product ID: SPFEC12

Product Type: I-O_Module

CI522A 3BSE018283R1 CPU Ethernet Digital IoAF100 Interface Communication

Brand: ABB

Model: CI522A

Product ID: 3BSE018283R1

Product Type: Communication_Module

Front LED’s	F(ault), R(un), W(arning)
Supervision	Internal Power Supply
Status indication of supervision	Module Error, Module Warning, Channel error

CE mark	Yes
Electrical safety	EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous Location	-
Marine certification	-
Temperature, Operating	0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Temperature, Storage	-40 to +70 °C (-40 to +158 °F)
Pollution degree	Degree 2, IEC 60664-1
Corrosion protection	ISA-S71.04: G3
Relative humidity	5 to 95 %, non-condensing
Max ambient temperature	55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
Protection class	IP20 according to IEC 60529
Mechanical operating conditions	IEC/EN 61131-2
EMC	EN 61000-6-4, EN 61000-6-2
Overvoltage categories	IEC/EN 60664-1, EN 50178
Equipment class	Class I according to IEC 61140; (earth protected)
RoHS compliance	DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance	DIRECTIVE/2012/19/EU

Use with MTU	TU811, TU813, TU831
Keying code	DA

Width	45 mm (1.77”)
Depth	102 mm (4.01”), 111 mm (4.37”) including connector
Height	119 mm (4.7”)
Weight	0.30 kg (0.66 lbs.)
