Name: ABB AO815 3BSE052605R1 Analog Output 1×8 Ch With Hart S800 I/O Module
Brand: Wisdomlong Technology CO.，LTD
SKU: AO815 3BSE052605R1
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

ABB AO815 3BSE052605R1 Analog Output 1×8 Ch With Hart S800 I/O Module

Product Details:

Place of Origin:	India / China
Brand Name:	ABB
Certification:	CE
Model Number:	AO815 3BSE052605R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Model:	AO815 3BSE052605R1	Brand:	ABB
Country Of Origin:	India / China	Product Net Weight:	0.2kg
Product Type:	I-O_Module	Type:	Analog Output
Mechanics:	S800

ABB AO815 3BSE052605R1 ANALOG OUTPUT 1×8 CH WITH HART

The AO815 Analog OutputModule has 8 unipolar analog output channels. The module performs self-diagnostic cyclically.Module diagnostics include:

External Channel Error is reported (onlyreported on active channels) if the process power supplythat supplyvoltage to output circuitryis too low, or the output currentis less than the output setvalue and the output setvalue is greater than 1 mA (open circuit).
Internal Channel Error is reported if the output circuit can not give the right currentvalue.
Module Error is reported in case of Output Transistor Error, Short Circuit, ChecksumError, Internal Power Supply Error or Watchdog error.

The module has HARTpass-through functionality. Only pointto point communication is supported. The outputfilter must be enabled on channels used for HARTcommunication.

Features and benefits

8 channels of 4...20 mA
1 group of 8 channels isolated fromground
Analog inputs are short circuit secured to ZP or +24 V
HARTpass-through communication

General Information

Product ID:

3BSE052605R1
ABB Type Designation:

AO815
Catalog Description:

AO815 Analog Output HART 8 ch
Long Description:

1x8 ch. 4..20mA, 12bit, RLmax 750 ohm.
Use Module Termination Unit TU810, TU812, TU814, TU830 or TU833.

Additional Information

Medium Description:

0(4)..20mA, 14bit RLmax 500/850 Ohms.
Use module Termination Unit TU810, TU812, TU814, TU830 or TU833.
Product Type:

I-O_Module

Ordering

HS Code:

853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other
Customs Tariff Number:

85389099

Dimensions

Product Net Depth / Length:

102 mm
Product Net Height:

119 mm
Product Net Width:

45 mm
Product Net Weight:

0.2 kg

Technical

Channel Type:

AI
Number of Input Channels:

0
Number of Output Channels:

8

Environmental

RoHS Status:

Following EU Directive 2011/65/EU
WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries:

0
SCIP:

b4fed01-2c08-458b-a394-de95757d18e0 China (CN)

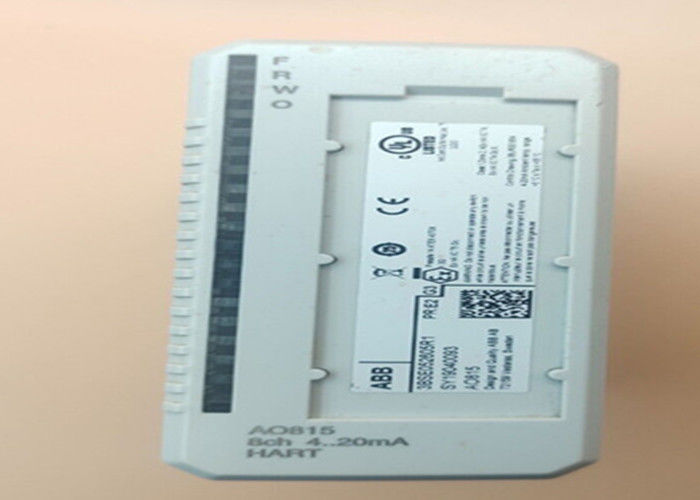

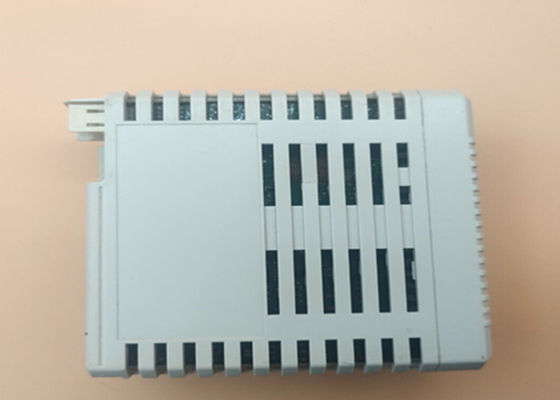

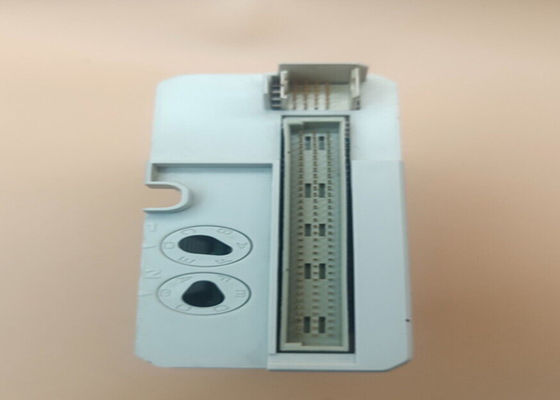

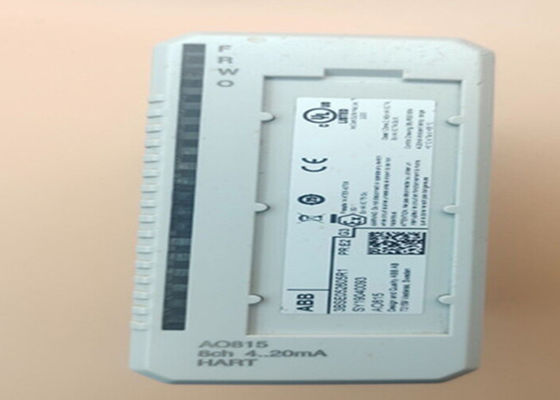

ABB AO815 3BSE052605R1 Analog Output 1×8 Ch With Hart S800 I/O Module 1
